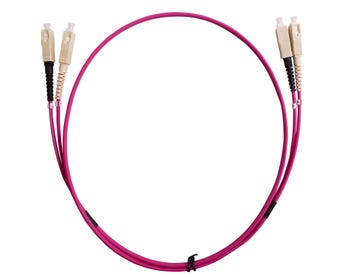

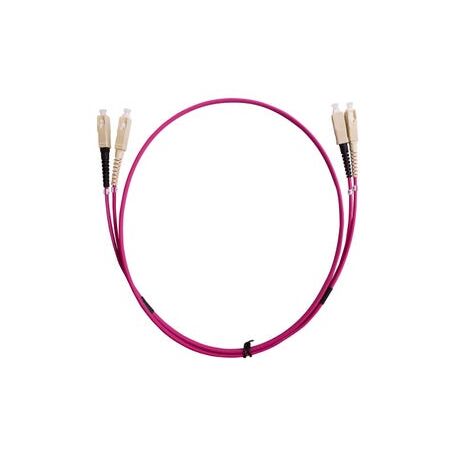

Fibre Patch Lead SC-SC OM4 | 1 Metre | LSZH 3mm Duplex | Erika Violet by Cabac
Fibre patch lead SC-SC OM4 with 1 metre length and Erika Violet color—ideal for high-speed data transmission. Built for network professionals, with LSZH 3mm duplex design for safety and flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead SC-SC OM4 | 1 Metre | Erika Violet | LSZH 3mm Duplex by MSS
Brand: Cabac
SKU: DSCSC1M-MM4
Alternatively Known As: OM4 Fibre Patch Lead, Duplex Fibre Patch Cable, SC to SC Fibre Optic Cable, LSZH Fibre Patch Lead, Erika Violet Fibre Cable
Technical Specifications
- 3mm Erika Violet LSZH Jacket
- Polarity method: A-to-B
- Duplex SC connectors
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
- RoHS and REACH compliant
- Dimensions (H x L x W): 3mm x 1000mm x 3mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with only LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by qualified telecommunications or network professionals is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
Standards & Compliance
- Complies with AS/CA S008 for telecommunications cabling
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre SC - SC OM4 1 Metre Erika Violet LSZH 3mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centre and telecommunications cabling applications.
