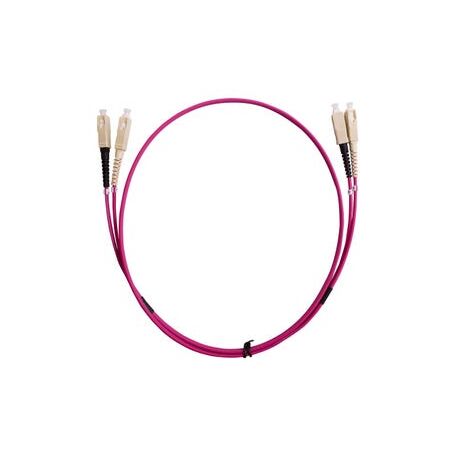

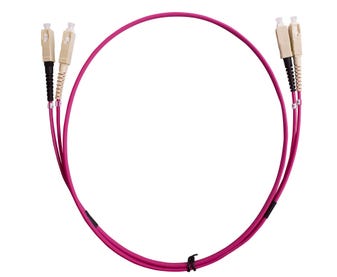

Fibre Patch Lead SC-SC OM4 | 3 Metre Length | LSZH 3mm Duplex | Erika Violet by MSS
Fibre patch lead SC-SC OM4 with a 3 metre length and Erika Violet color—ideal for high-speed data transmission. Built for network installations, with LSZH 3mm duplex design for safety and flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead SC-SC OM4 | 3 Metre Length | Erika Violet | LSZH 3mm Duplex by MSS
Brand: Cabac
SKU: DSCSC3M-MM4
Alternatively Known As: Fibre Optic Patch Lead, Duplex Fibre Patch Cable, OM4 Fibre Patch Lead, SC to SC Fibre Cable, LSZH Fibre Patch Lead
Technical Specifications
- 3mm Erika Violet LSZH Jacket
- Duplex fibre patch lead
- Polarity method: A-to-B
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Connector type: SC to SC
- Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3 standards
- Up to 500 mating cycles (IEC 61300-2-2)
- Dimensions (H x L x W): 3mm x 3000mm x 3mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types available
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with only LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by qualified technicians recommended to ensure proper handling and performance of fibre optic connections.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
Standards & Compliance
- AS/CA S008
Environmental Benefits
- LSZH (Low Smoke Zero Halogen) jacket reduces toxic smoke emissions in case of fire, enhancing safety and environmental protection
- RoHS and REACH compliant, ensuring restriction of hazardous substances
Warranty Information
Warranty details not specified; typically covered by manufacturer warranty against defects.
Available Now
The MSS Fibre SC - SC OM4 3 Metre Erika Violet LSZH 3mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centre and telecommunications applications.
