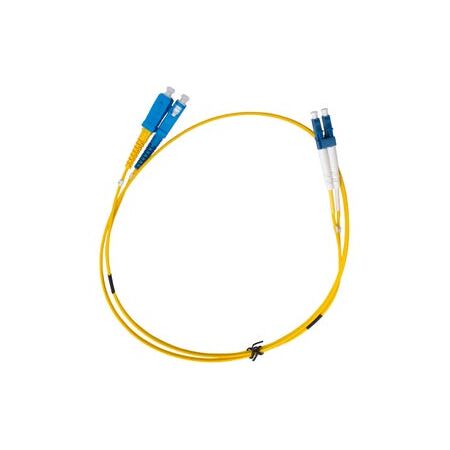

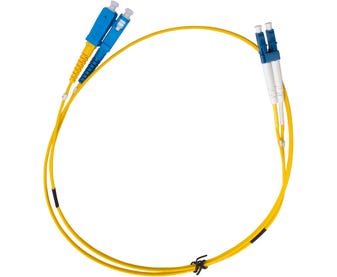

Fibre Patch Lead SC to LC | 5 Metre | Yellow LSZH Jacket | 2mm Duplex by Cabac
Fibre patch lead with SC to LC connectors, 5 metre length, and yellow LSZH jacket—ideal for high-speed data transmission. Built for network installations, with durable 2mm duplex design for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead SC to LC | 5 Metre | Yellow LSZH | 2mm Duplex by MSS
Brand: Cabac
SKU: DSCLC5M-SM
Alternatively Known As: Fibre Optic Patch Lead, Duplex Fibre Patch Cable, SC to LC Fibre Patch Lead, Singlemode Fibre Cable, LSZH Fibre Patch Lead
Technical Specifications
- Cable Jacket: 2mm Yellow LSZH
- Connector Types: SC to LC Duplex
- Polarity: Method A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3, RoHS, REACH
- Dimensions (H x L x W): 2mm x 5000mm x 2mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained telecommunications or data cabling professionals is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre SC - LC Singlemode 5 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications rooms, and fibre equipment patching.
