Fibre Patch Lead ST to LC Duplex 5 Metre | Yellow LSZH Jacket | High Performance & 500 Mating Cycles by Cabac

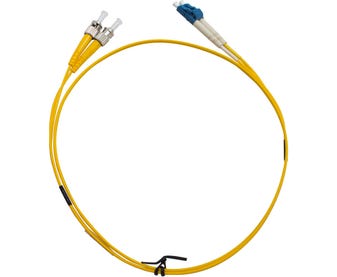

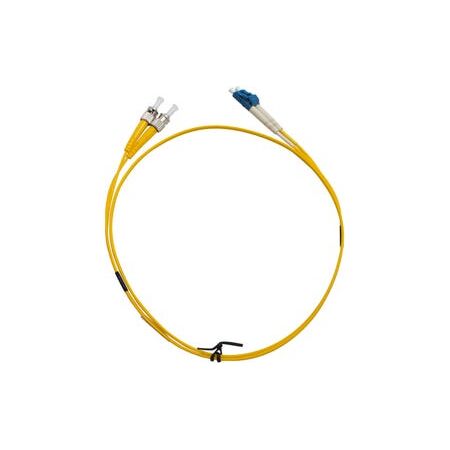

The MSS Fibre ST - LC Singlemode 5 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead by Cabac is a high-performance fibre optic patch lead designed for data centres and telecommunications applications, featuring durable LSZH jacket and duplex LC connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MSS Fibre ST - LC Singlemode 5 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead
Brand: Cabac
SKU: DSTLC5M-SM
Alternatively Known As: Fibre Optic Patch Lead, Duplex Fibre Patch Cable, Singlemode Fibre Patch Lead, LSZH Fibre Patch Lead, ST to LC Fibre Cable
Technical Specifications
- Cable Jacket: 2mm Yellow LSZH
- Connector Types: ST to LC Duplex
- Polarity: A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3, RoHS, REACH
- Dimensions (H x L x W): 2mm x 5000mm x 2mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The MSS Fibre ST - LC Singlemode 5 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for high-performance data and telecommunications applications.
