Fibre Patch Lead ST to LC | Singlemode | 2mm LSZH Yellow | 1 Metre by Cabac

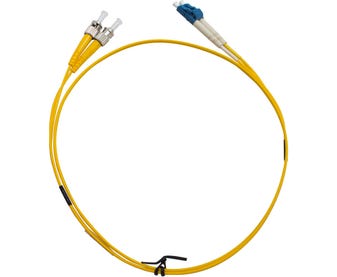

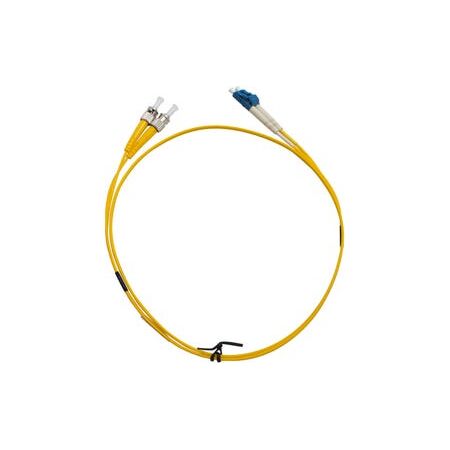

MSS Fibre ST - LC Singlemode 1 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead designed for high performance fibre optic connectivity in data centres and telecommunications applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MSS Fibre ST - LC Singlemode 1 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead
Brand: Cabac
SKU: DSTLC1M-SM
Alternatively Known As: Fibre Optic Patch Lead, Duplex Fibre Patch Cable, Singlemode Fibre Patch Lead, LSZH Fibre Patch Lead, ST to LC Fibre Cable
Technical Specifications
- 2mm Yellow LSZH Jacket
- Singlemode fibre
- Duplex configuration with ST to LC connectors
- Polarity method A-to-B
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Complies with IEC 61300-3 standards
- Up to 500 mating cycles
- Dimensions (H x L x W): 2mm x 1000mm x 2mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by qualified fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- AS/CA S008
- IEC 11801
- 14763.36
- ANSI/TIA 568-3
- 61300-3
- RoHS
- REACH
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre ST - LC Singlemode 1 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications, and fibre optic network patching.
