Fibre Patch Lead ST to SC OM3 5 Metre | Aqua LSZH Jacket | Duplex Design | Performance Tested by Cabac
The MSS Fibre ST - SC OM3 5 Metre Aqua LSZH 3mm Duplex Fibre Patch Lead by Cabac is a high-performance fibre optic patch lead designed for data centres and telecommunications applications, featuring LSZH jacket and tested to international standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

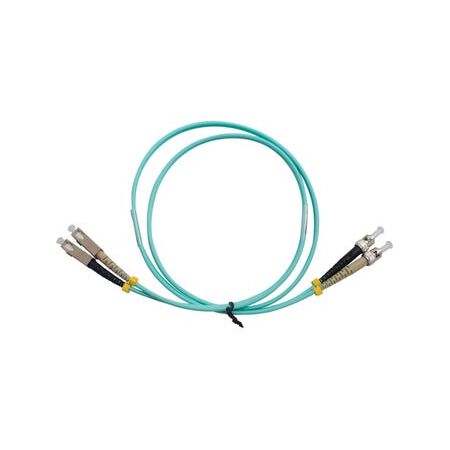

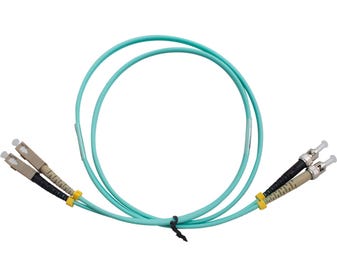

Product Name/Title: MSS Fibre ST - SC OM3 5 Metre Aqua LSZH 3mm Duplex Fibre Patch Lead
Brand: Cabac
SKU: DSTSC5M-MM3
Alternatively Known As: Fibre Optic Patch Lead, Duplex Fibre Cable, OM3 Fibre Patch Cord, LSZH Fibre Patch Lead, ST to SC Fibre Cable
Technical Specifications
- 3mm Aqua LSZH Jacket
- Duplex fibre patch lead
- Polarity method 'A-to-B'
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Connector types: ST to SC
- Available in OM1, OM3, OM4 and SM fibre types
- Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3 standards
- Dimensions (H x L x W): 3mm x 5000mm x 3mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards exceeding test requirements
- Range of connector types available
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method 'A-to-B' used in all standard fibre patch leads with LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure optimal performance and compliance with cabling standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- AS/CA S008 - Installation requirements for customer cabling (wiring rules)
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre ST - SC OM3 5 Metre Aqua LSZH 3mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications rooms, and fibre equipment patching.
