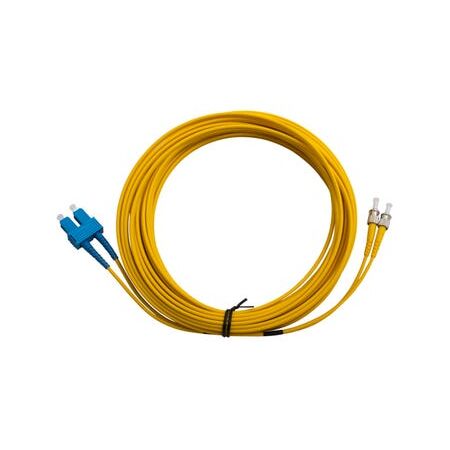

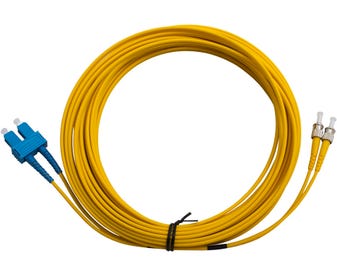

Fibre Patch Lead ST to SC Singlemode 10m | Duplex Configuration | LSZH Jacket by Cabac

BRAND: CABAC
SKU: DSTSC10M-SM
$38.50 List price: $46.60
+ −
30 Days Return Delivery Options
The MSS Fibre ST - SC Singlemode 10 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead by Cabac is a high-performance fibre optic patch lead designed for data centres, telecommunications, and fibre equipment patching with a durable LSZH jacket and tested to exceed IEC standards.

Product Name/Title: MSS Fibre ST - SC Singlemode 10 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead

Brand: Cabac

SKU: DSTSC10M-SM

Alternatively Known As: Fibre Optic Patch Lead, Duplex Fibre Patch Cable, Singlemode Fibre Patch Lead, LSZH Fibre Patch Lead, ST to SC Fibre Cable

Technical Specifications
  • 3mm Yellow LSZH Jacket
  • Singlemode fibre
  • Duplex configuration
  • Polarity method: A-to-B
  • Performance tested to IEC 11801 and ANSI/TIA 568-3
  • Connector types: ST to SC
  • Up to 500 mating cycles (IEC 61300-2-2)
  • Dimensions (H x L x W): 3mm x 10000mm x 3mm
  • Weight: 0.1 kg
Key Features
  • Performance tested to numerous IEC standards to ensure performance exceeds test requirements
  • Range of connector types
  • Duplex Clip on LC connectors
  • LSZH Jacket in various colours
  • Available in OM1, OM3, OM4 and Singlemode
  • Polarity method "A-to-B" used in all standard fibre patch leads with only LC connectors having duplex clips
  • Up to 500 mating cycles (IEC 61300-2-2)
  • 3mm Yellow LSZH sheath
Professional Installation Requirements
  • Installation by a qualified fibre optic technician is recommended to ensure optimal performance and compliance with standards.
Applications
  • Data centres
  • Telecommunications rooms
  • Fibre equipment patching
  • CATV/Video
  • PON
  • WDM/DWDM
  • FTTH
Standards & Compliance
  • Complies with AS/CA S008 for telecommunications cabling
  • IEC 11801
  • IEC 14763.36
  • ANSI/TIA 568-3
  • IEC 61300-3
  • RoHS
  • REACH
Environmental Benefits
  • Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
  • RoHS and REACH compliant, ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The MSS Fibre ST - SC Singlemode 10 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications, and fibre optic network patching applications.
