Fibre Patch Lead ST to ST OM1 | 10 Metre | 3mm LSZH Jacket | Duplex Design by Cabac
The MSS Fibre ST - ST OM1 10 Metre Orange LSZH 3mm Duplex Fibre Patch Lead by Cabac is a high-performance fibre optic patch lead designed for data centres and telecommunications applications, featuring LSZH jacket and tested to IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

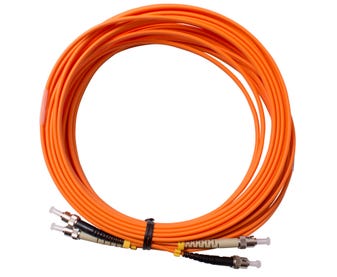

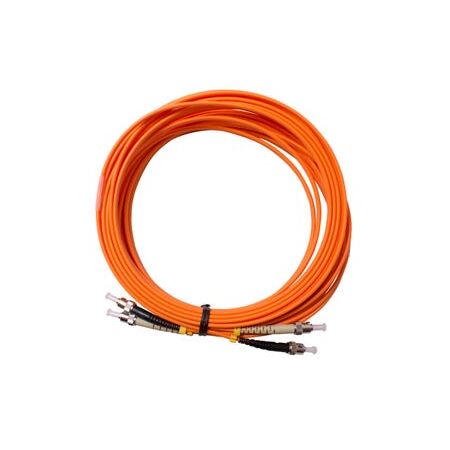

Product Name/Title: MSS Fibre ST - ST OM1 10 Metre Orange LSZH 3mm Duplex Fibre Patch Lead
Brand: Cabac
SKU: DSTST10M-MM
Alternatively Known As: Fibre Optic Patch Lead, Duplex Fibre Patch Cable, LSZH Fibre Patch Lead, ST to ST Fibre Cable, OM1 Fibre Patch Lead
Technical Specifications
- 3mm Orange LSZH Jacket
- Duplex fibre patch lead
- Polarity method: A-to-B
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Connector type: ST to ST
- Available in OM1 mode
- Up to 500 mating cycles (IEC 61300-2-2)
- Dimensions (H x L x W): 3mm x 10000mm x 3mm
- Weight: 0.1 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with only LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
- 3mm Orange LSZH sheath
Professional Installation Requirements
- Installation by qualified fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- Complies with AS/CA S008 for telecommunications cabling
- Complies with IEC 11801 for generic cabling for customer premises
- Complies with ANSI/TIA 568-3 for optical fibre cabling components
- Complies with IEC 61300-3 for fibre optic interconnecting devices and passive components
- RoHS and REACH compliant
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant materials ensure reduced environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre ST - ST OM1 10 Metre Orange LSZH 3mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centre and telecommunications room applications.
