Fibre Patch Lead ST to ST Singlemode 2m | Yellow LSZH | 3mm Duplex | High Performance by Cabac

BRAND: CABAC
SKU: DSTST2M-SM
$24.90 List price: $30.20
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options

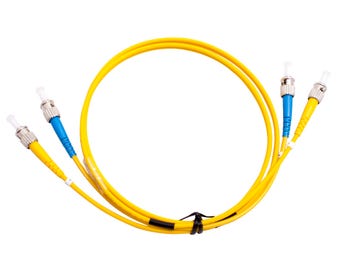

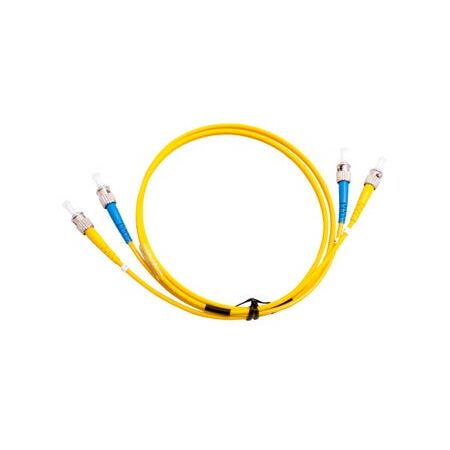

The MSS Fibre ST - ST Singlemode 2 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead by Cabac is a high-performance fibre optic patch lead designed for data centres, telecommunications, and fibre equipment patching with tested compliance to IEC and ANSI standards.

Product Name/Title: MSS Fibre ST - ST Singlemode 2 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead

Brand: Cabac

SKU: DSTST2M-SM

Alternatively Known As: Singlemode Fibre Patch Lead, Duplex Fibre Optic Cable, LSZH Fibre Patch Lead, ST to ST Fibre Patch Cable

Technical Specifications
  • 3mm Yellow LSZH Jacket
  • Polarity method: A-to-B
  • Performance tested to IEC 11801 and ANSI/TIA 568-3
  • Connector type: ST to ST Singlemode
  • Duplex fibre patch lead
  • Up to 500 mating cycles (IEC 61300-2-2)
  • Dimensions (H x L x W): 3mm x 2000mm x 3mm
  • Weight: 0.05 kg
Key Features
  • Performance tested to numerous IEC standards to ensure performance exceeds test requirements
  • Range of connector types
  • Duplex Clip on LC connectors
  • LSZH Jacket in various colours
  • Available in OM1, OM3, OM4 and Singlemode
  • Polarity method "A-to-B" used in all standard fibre patch leads with only LC connectors having duplex clips
  • Up to 500 mating cycles (IEC 61300-2-2)
  • 3mm Yellow LSZH sheath
Professional Installation Requirements
  • Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
  • Data centres
  • Telecommunications rooms
  • Fibre equipment patching
  • CATV/Video
  • PON
  • WDM/DWDM
  • FTTH
Standards & Compliance
  • AS/CA S008
  • IEC 11801
  • 14763.36
  • ANSI/TIA 568-3
  • 61300-3
  • RoHS
  • REACH
Environmental Benefits
  • Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
  • RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.

Available Now

The MSS Fibre ST - ST Singlemode 2 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centres, telecommunications, and fibre optic network patching applications.
