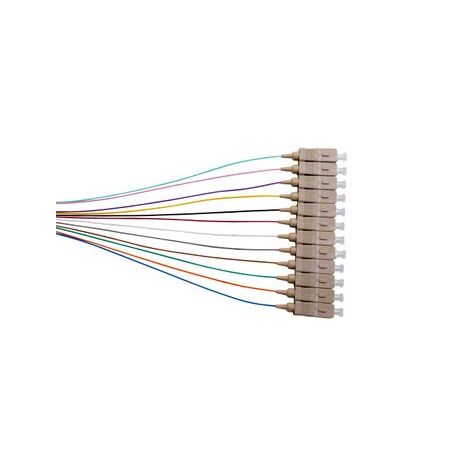

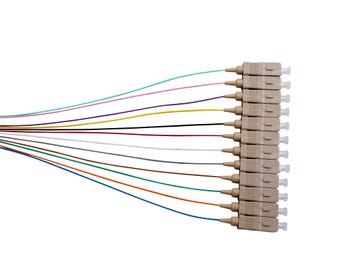

Fibre Pigtails OM4 50um 12-Fibre SC | 900um LSZH | High Performance by Cabac
Fibre pigtails with 12 fibres and SC connectors, featuring 50um OM4 performance—ideal for high-speed data transmission. Built for network installations, with durable 900um sheathing for reliable connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Pigtails OM4 50um 12-Fibre SC | 900um | High Performance | 12 Pack by MSS
Brand: Cabac
SKU: PSC2M/900-MM4-C12
Alternatively Known As: OM4 Fibre Optic Pigtails, 12 Fibre SC Pigtails, Multimode Fibre Pigtails, LSZH Fibre Pigtails
Technical Specifications
- Fibre Type: OM4 Multimode
- Core Diameter: 50 microns
- Fibre Count: 12 fibres
- Connector Type: SC UPC
- Buffer Diameter: 900 microns
- Fibre Colour Coding: IEC 60304, TIA-598
- Standards Compliance: ITU G651.1
- Material Compliance: REACH, RoHS, SvHC
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 0.05 kg
Key Features
- 6 or 12 Pack UPC Connector Pigtails packaged and labelled for protection, performance data, and traceability
- 900um Low Smoke Zero Halogen (LSZH) tight buffer
- Multimode fibre conforms to ITU G651.1
- Individual fibres coloured as per IEC 60304, TIA-598
- REACH, RoHS and SvHC materials compliant
Professional Installation Requirements
- Installation by qualified fibre optic technicians is recommended to ensure optimal performance and compliance with industry standards.
Applications
- Fibre optic network installations
- Data communication systems
- Telecommunications infrastructure
- High-speed data transmission environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) materials reduce toxic emissions in case of fire
- Compliant with REACH, RoHS, and SvHC for reduced environmental impact
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
The MSS Fibre OM4 50um 12-Fibre SC 900um Pigtails - 12 Pack by Cabac is available now for immediate purchase. Ideal for fibre optic network and data communication applications.
