Fibre Receiver 106dBμV Output | SC/APC Connector | 47-862MHz by Matchmaster
Fibre receiver with 106dBμV output and SC/APC connector—ideal for homes and commercial spaces. Built for reliable signal distribution, with a 47-862MHz frequency range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

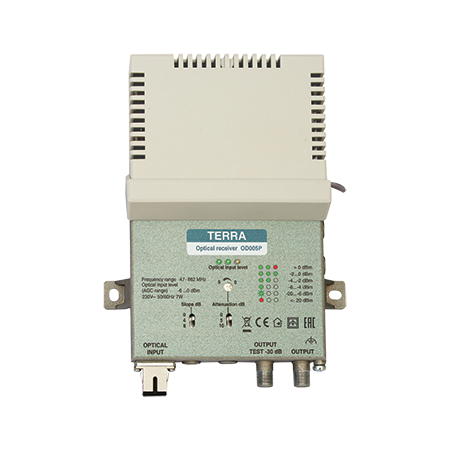

Product Name/Title: TERRA Fibre Receiver 106dBμV Output with SC/APC Connector 47-862MHz
Brand: Matchmaster
SKU: 20MM-OD005P
Alternatively Known As: MATV Optical Receiver, Fibre Optic Receiver, TERRA Optical Receiver
Technical Specifications
- Optical input wavelength: 1100-1600nm
- Optical input level (AGC range): -6 to 0dBm
- Optical return loss: >40dB
- Noise current density: ≤6.5pA/√Hz
- RF output frequency range: 47-862MHz
- Impedance: 75Ω
- Return loss: ≥14dB at 40MHz
- Frequency response: ±0.75dB
- Power consumption: 230V~ 50/60Hz 7W
- Operating temperature range: -20° ÷ +50°C
- Dimensions (H x L x W): 52mm x 180mm x 135mm
- Weight: 0.7 kg
Key Features
- 106dBµV output level in auto gain control mode
- Frequency range 47-862MHz
- Optical wavelength 1100-1600nm with an optical input range -6 to 0dBm
- 0-15dB attenuation and 0-8dB slope control
- Robust die-cast housing
- SC/APC optical interface
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring MATV band optical reception
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The TERRA Fibre Receiver 106dBμV Output with SC/APC Connector is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable optical reception.
