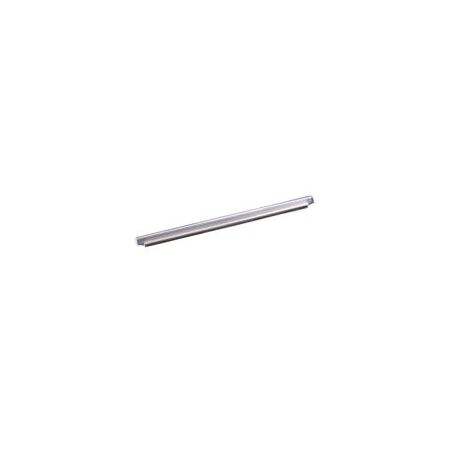

Fibre Splice Protector Heat Shrink 40mm Thin Pack of 25 MSS Data
MSS Data Fibre Splice Protector features 40mm length, thin profile shrinking to 2.4mm and stainless steel strength member. Ideal for protecting fusion splices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 40mm Thin Fibre Splice Sleeve, Fusion Splice Protection Sleeve, Heat-Shrink Fibre Splice Protector
Technical Specifications
- Length: 40 mm
- Shrink Diameter: 2.4 mm
- Construction: Clear heat-shrink outer tube with internal support member
- Strength Member: Stainless steel
- Pack Quantity: 25 protectors
- Application: Fusion splice protection
- Material Compliance: RoHS-related hazardous-substance requirements stated for equivalent product specification
- Dimensions (H x L x W): 5mm x 40mm x 5mm
- Weight: 0.1 kg
Key Features
- Thin 40 mm profile for compact fibre splice trays
- Shrinks to approximately 2.4 mm diameter
- Stainless steel strength member provides rigid mechanical support
- Helps increase tensile and torsional protection around fusion splices
- Clear sleeve allows visual identification of the protected fibre
- Suitable for single-fibre optical fusion splices
- Supplied in a 25-piece pack
Professional Installation Requirements
- Installation should be performed by a trained fibre optic technician using an approved fusion splicing and heat-shrinking process. Follow the splice equipment and enclosure manufacturer's instructions.
Applications
- Fibre optic fusion splice protection
- Telecommunications cabling systems
- Data centre and structured cabling installations
- Fibre distribution frames, splice trays and enclosures
- Single-mode and multimode fibre network repairs and extensions
Standards & Compliance
- Relevant to optical fibre communication system safety practices under AS/NZS 2967:2014
- Installation should be carried out in accordance with applicable customer cabling requirements, including AS/CA S009:2020 where relevant
Environmental Benefits
- Stainless steel support material is recyclable at end of service life
- Durable mechanical protection can extend the service life of fibre splices and reduce replacement waste
- Compact construction reduces material use compared with larger splice protection sleeves
Warranty Information
MSS Data Solutions offers a 25-year project warranty programme for qualifying MSS products and installations, subject to registration, approved installation, testing and stated terms. Product-specific warranty coverage should be confirmed with the supplier.
Available Now
Available through MSS Data Solutions and authorised Australian electrical, telecommunications and data-cabling distributors.
