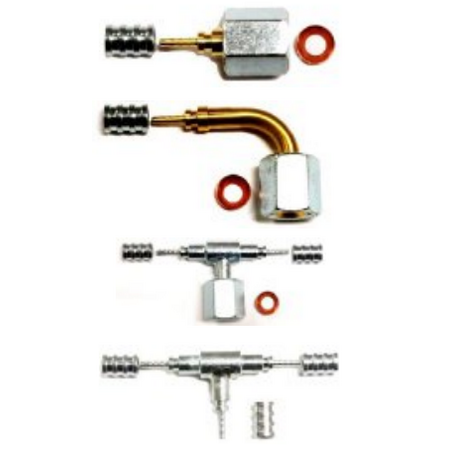

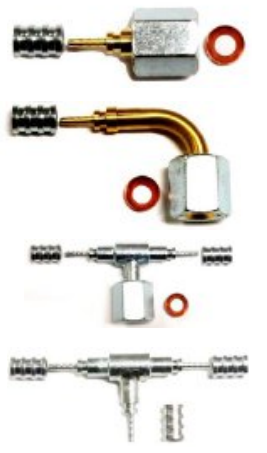

Field Assembly Kit | 2mm Elbow Fitting | UV Stabilised Hose | 53 Bar SWP | by Aspen Pumps
The Field Assembly Kit is designed for HVAC systems requiring flexible hose connections, featuring a 2mm elbow fitting and UV stabilised flexible hose. With a pressure rating of 53 bar SWP and compliance with ISO/AS 5149.2, this kit is perfect for refrigeration and air conditioning installations, ensuring reliable performance and minimal refrigerant leakage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Field Assembly Kit | 2mm Elbow Fitting | UV Stabilised Hose | 53 Bar SWP | by Aspen Pumps
Brand: Aspen Pumps
SKU: 903-2003
Alternatively Known As: Rotalock Valve Kit, Flexible Hose Assembly Kit, HVAC Flexible Line Kit
Technical Specifications
- Fitting size: 2mm / 1/4 inch elbow fitting kit
- Pressure rating: 53 bar SWP
- Material: UV stabilised flexible hose
- Compliance: ISO/AS 5149.2, EN1736, EN378
- Compatible with common refrigerants and oils
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.1 kg
Key Features
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration technicians to ensure compliance with safety and performance standards.
Applications
- HVAC systems requiring flexible hose connections
- Refrigeration and air conditioning installations
- Field assembly of flexible lines with Rotalock valves and fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- UV stabilisation extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Field Assembly Kit is available for immediate purchase, ideal for HVAC and refrigeration flexible hose assembly applications.
