Trade Discount 17%

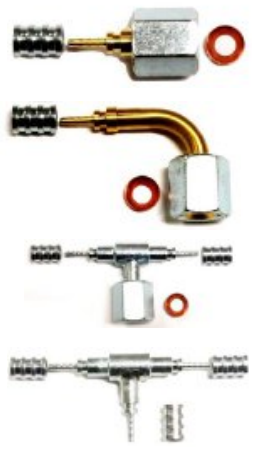

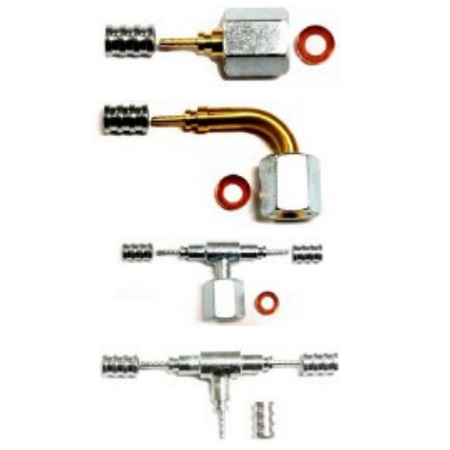

Field Assembly Kit | 4mm Straight Fitting | UV Stabilised Material | 53 Bar SWP | by Aspen Pumps
The Field Assembly Kit is designed for HVAC refrigeration systems, featuring a 4mm straight fitting and UV stabilised material for high elasticity. Compliant with ISO/AS 5149.2 and EN1736 standards, it ensures reliable performance and low permeation rates, making it ideal for field assembly of refrigerant lines and compatible with common refrigerant and oil combinations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Field Assembly Kit | 4mm Straight Fitting | UV Stabilised Material | 53 Bar SWP | by Aspen Pumps
Brand: Aspen Pumps
SKU: 903-4003
Alternatively Known As: Rotalock Valve Kit, Flexible Hose Assembly Kit, Refrigerant Line Assembly Kit
Technical Specifications
- Fitting size: 4mm / 1/4 inch straight fitting
- Pressure rating: 53 bar SWP
- UV stabilised material with high elasticity
- Compliant with ISO/AS 5149.2, EN1736, and EN378 standards
- Dimensions (H x L x W): 30mm x 150mm x 100mm
- Weight: 0.1 kg
Key Features
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation should be performed by qualified HVAC technicians to ensure compliance with safety and performance standards.
Applications
- HVAC refrigeration systems requiring flexible hose connections
- Field assembly of refrigerant lines
- Compatible with common refrigerant and oil combinations
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigeration systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- CO2 compliant design supports use of environmentally friendly refrigerants
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Field Assembly Kit is available for immediate purchase, ideal for HVAC refrigeration system installations and maintenance.
