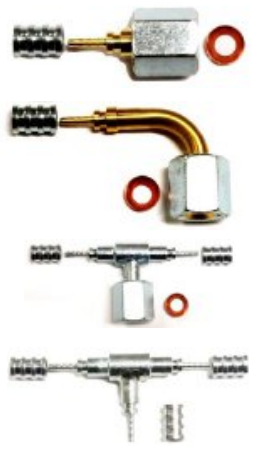

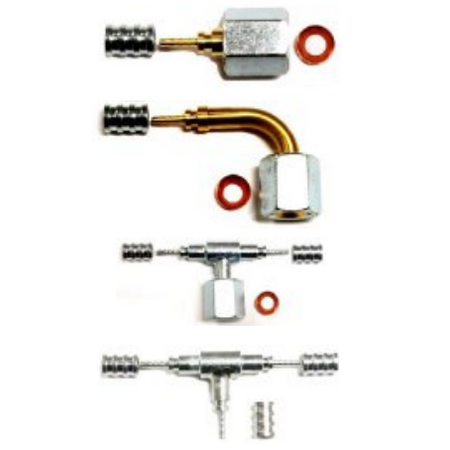

Field Assembly Kit | ISO/AS 5149.2 Compliant | UV Stabilised & High Elasticity | 53 Bar SWP | by Aspen Pumps
The Field Assembly Kit is designed for HVAC and refrigeration systems requiring flexible hose connections. Manufactured in accordance with ISO/AS 5149.2, it features UV stabilised material for durability and a low permeation rate to minimize refrigerant leakage. Ideal for commercial and industrial applications, this kit ensures compliance with safety and environmental standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Field Assembly Kit | ISO/AS 5149.2 Compliant | UV Stabilised & High Elasticity | 53 Bar SWP | by Aspen Pumps
Brand: Aspen Pumps
SKU: 903-4004
Alternatively Known As: Flexible Hose Assembly Kit, Refrigeration Hose Fitting Kit, HVAC Flexible Line Kit, SKYREFLEX Elbow Fitting Kit
Technical Specifications
- Compliance: ISO/AS 5149.2
- Material: UV stabilised flexible hose with high elasticity
- Permeation Rate: Low, compliant with EN1736 and EN378
- Pressure Rating: 53 bar Safe Working Pressure (SWP)
- Compatibility: Suitable for common refrigerant and oil combinations
- CO2 Compliant
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity for durability
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP (Safe Working Pressure)
Professional Installation Requirements
- Installation should be performed by a qualified HVAC or refrigeration technician to ensure compliance with safety and performance standards.
Applications
- HVAC systems requiring flexible hose connections
- Refrigeration systems compatible with common refrigerants and oils
- Field assembly of flexible lines in commercial and industrial refrigeration
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigeration systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- UV stabilisation extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps SKYREFLEX® Field Assembly Kit is available for immediate purchase, ideal for HVAC and refrigeration flexible hose assembly applications.
