Field Assembly Kit | ISO/AS 5149.2 Compliant | UV Stabilised Flexible Hose | Rotalock Valves Included | by Aspen Pumps
The Field Assembly Kit is designed for refrigeration and HVAC applications, featuring a UV stabilised flexible hose that ensures durability and compliance with ISO/AS 5149.2 standards. With a low permeation rate and compatibility with common refrigerant and oil combinations, this kit is perfect for professional installations requiring reliable flexible connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Field Assembly Kit | ISO/AS 5149.2 Compliant | UV Stabilised Flexible Hose | Rotalock Valves Included | by Aspen Pumps
Brand: Aspen Pumps
SKU: 903-4002
Alternatively Known As: Flexible Hose Assembly Kit, Rotalock Valve Kit, HVAC Flexible Line Kit, Refrigeration Hose Assembly
Technical Specifications
- Compliance: ISO/AS 5149.2
- Material: UV stabilised flexible hose with high elasticity
- Permeation Rate: Low, compliant with EN1736 and EN378
- Safe Working Pressure: 53 bar
- Compatibility: Suitable for common refrigerant and oil combinations

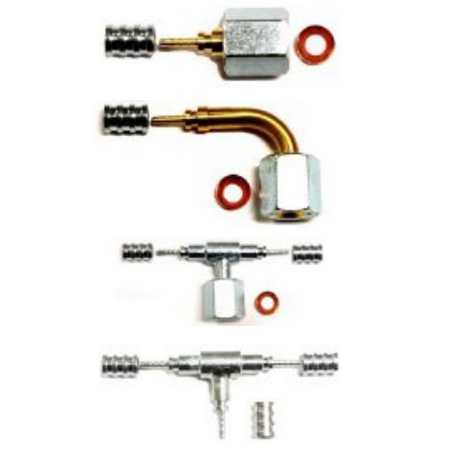

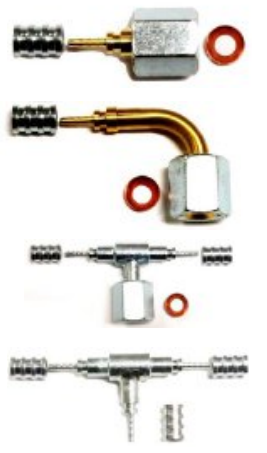

- Includes: Rotalock valves, connections, and accessories
- Fitting Size: 4mm / 1/4 inch straight fitting
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.1 kg
Key Features
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity for durability
- Low permeation rate compliant with EN1736 and EN378 standards
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP (Safe Working Pressure)
Professional Installation Requirements
- Installation should be performed by a qualified HVAC or refrigeration technician to ensure compliance with safety standards and optimal system performance.
Applications
- Refrigeration and air conditioning systems requiring flexible hose connections
- Field assembly of flexible lines for HVAC and refrigeration installations
- Compatible with common refrigerant and oil combinations in commercial and industrial settings
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- UV stabilisation extends product life, reducing waste and replacement frequency
- CO2 compliance supports use of environmentally friendly refrigerants
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Field Assembly Kit is available for immediate purchase, ideal for refrigeration and HVAC flexible hose assembly applications.
