Field Assembly Kit | Rotalock Valves & High Flow Design | UV Stabilised Material | by Aspen Pumps
The Field Assembly Kit is designed for HVAC systems requiring flexible hose connections, featuring Rotalock valves and a high flow design. Manufactured with UV stabilised material, it ensures durability and compliance with ISO/AS 5149.2 standards, making it ideal for refrigeration and air conditioning installations in both commercial and residential settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Field Assembly Kit | Rotalock Valves & High Flow Design | UV Stabilised Material | by Aspen Pumps
Brand: Aspen Pumps
SKU: 903-4006
Alternatively Known As: Flexible Hose Assembly Kit, Rotalock Valve Kit, HVAC Flexible Line Kit
Technical Specifications

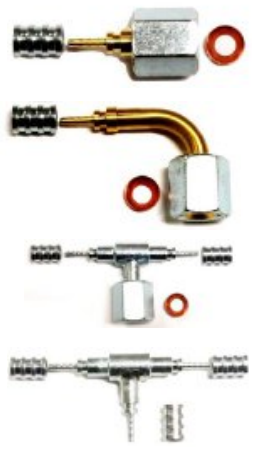

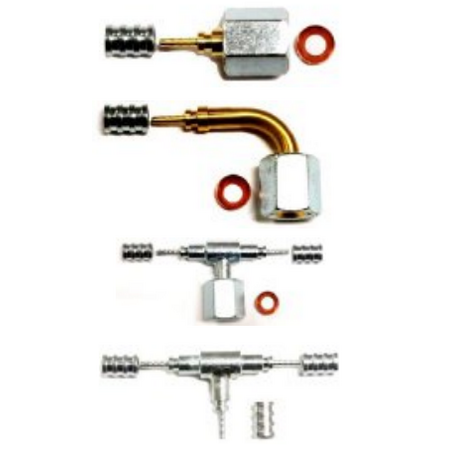

- Kit includes Rotalock valves, connections, and accessories
- Size: 4mm / 1/4 T with nut on branch fitting
- High flow design
- UV stabilised material with high elasticity
- Compliant with ISO/AS 5149.2, EN1736, EN378 standards
- Safe working pressure: 53 bar
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.2 kg
Key Features
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure compliance with safety and performance standards.
Applications
- HVAC systems requiring flexible hose connections
- Refrigeration and air conditioning installations
- Field assembly of flexible lines in commercial and residential settings
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- CO2 compliance supports use of environmentally friendly refrigerants
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Field Assembly Kit is available for immediate purchase, ideal for HVAC and refrigeration flexible hose assembly applications.
