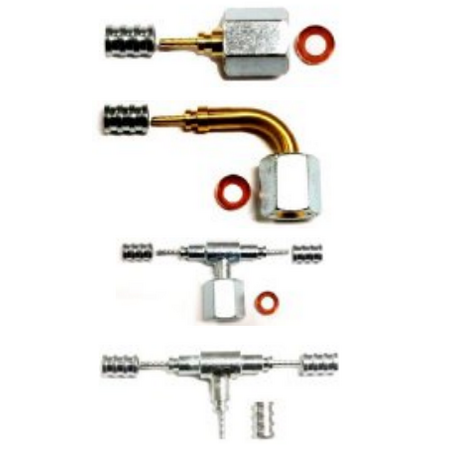

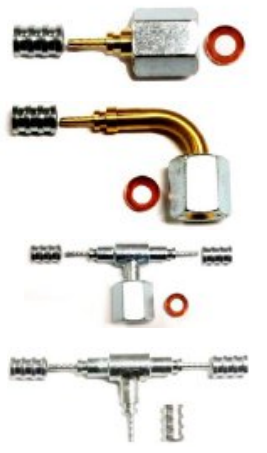

Field Assembly Kit | UV Stabilised Flexible Hose | 53 Bar SWP | ISO Compliant | by Aspen Pumps
The Field Assembly Kit is designed for HVAC and refrigeration systems, featuring a UV stabilised flexible hose and a pressure rating of 53 bar SWP. Ideal for field assembly and repair, this kit ensures compliance with ISO/AS 5149.2 and EN1736 standards, making it perfect for professionals seeking reliable and efficient hose connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Field Assembly Kit | UV Stabilised Flexible Hose | 53 Bar SWP | ISO Compliant | by Aspen Pumps
Brand: Aspen Pumps
SKU: 903-2001
Alternatively Known As: Flexible Hose Assembly Kit, Rotalock Valve Kit, Refrigeration Hose Fitting Kit
Technical Specifications
- Fitting size: 2mm / 1/4 inch straight fitting
- Pressure rating: 53 bar SWP
- Standards compliance: ISO/AS 5149.2, EN1736, EN378
- Material: UV stabilised flexible hose with high elasticity
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 0.2 kg
Key Features
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration professional is recommended to ensure compliance and safety.
Applications
- HVAC systems requiring flexible hose connections
- Refrigeration systems compatible with common refrigerants and oils
- Field assembly and repair of flexible lines in refrigeration and air conditioning
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems and heat pumps
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- CO2 compliant design supports use of environmentally friendly refrigerants
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Field Assembly Kit is available for immediate purchase, ideal for HVAC and refrigeration flexible hose assembly and repair applications.
