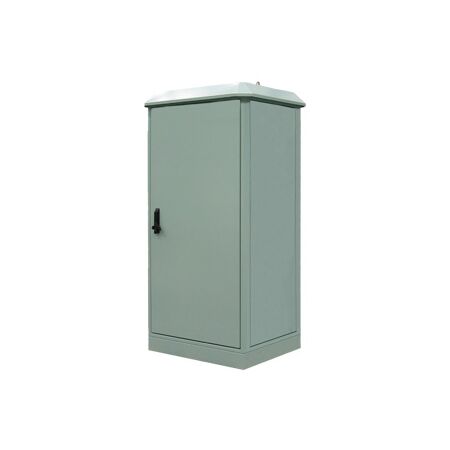

Field Cabinet Frame 1375x755x620 | IP66 Protection | Vandal Resistant | Alum by B&R Enclosures

BRAND: B&R Enclosures

SKU: FC130706/A

$10,874.60 List price: $13,668.20

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Field cabinet frame with IP66 protection and vandal-resistant design—ideal for housing ITS equipment and radio communications. Built for industrial use, with adjustable mounting rails and flush doors for enhanced security.

Description
Attachments

Product Name/Title: Field Cabinet Frame 1375x755x620 Alum

Brand: B&R Enclosures

SKU: FC130706/A

Alternatively Known As: Bren Field Enclosure, Industrial Enclosure, IP66 Enclosure, Vandal Resistant Enclosure

Technical Specifications

Material: Powdercoated 2mm zinc coated steel
Anti-graffiti coating available
3mm split aluminium gland plate
2mm marine grade aluminium and 1.5mm 316 stainless steel available on request
Dimensions (H x L x W): 1375mm x 620mm x 755mm
Weight: 50 kg

Key Features

IP66 protection rating with solid gland plate and flush side panels.
Region D wind rated to AS1170.2-2002 for structural design actions.
Flush front and rear doors with concealed hinges to minimize forced entry.
3-point locking system with low profile handle.
Rainhood/sunshield to minimize the effect of the elements.
Adjustable internal mounting rail system.

Professional Installation Requirements

Professional installation is recommended for optimal safety and functionality.

Applications

Housing of intelligent transport systems (ITS) equipment
GPS receivers and transmitters
Road monitoring and traffic management equipment
Radio communications equipment

Standards & Compliance

Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Field FC Enclosure by Bren Closures is available now for immediate purchase. Ideal for various industrial applications requiring robust protection.

Specification Sheet (, 439 Kb) [Download]
