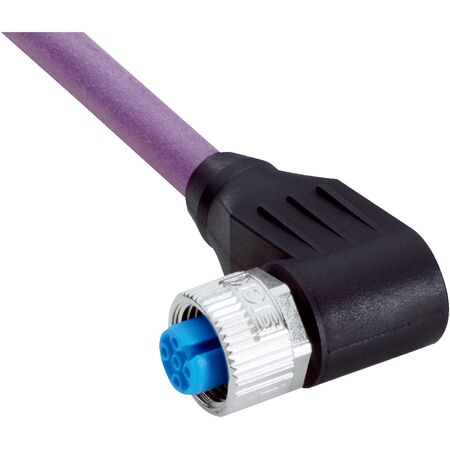

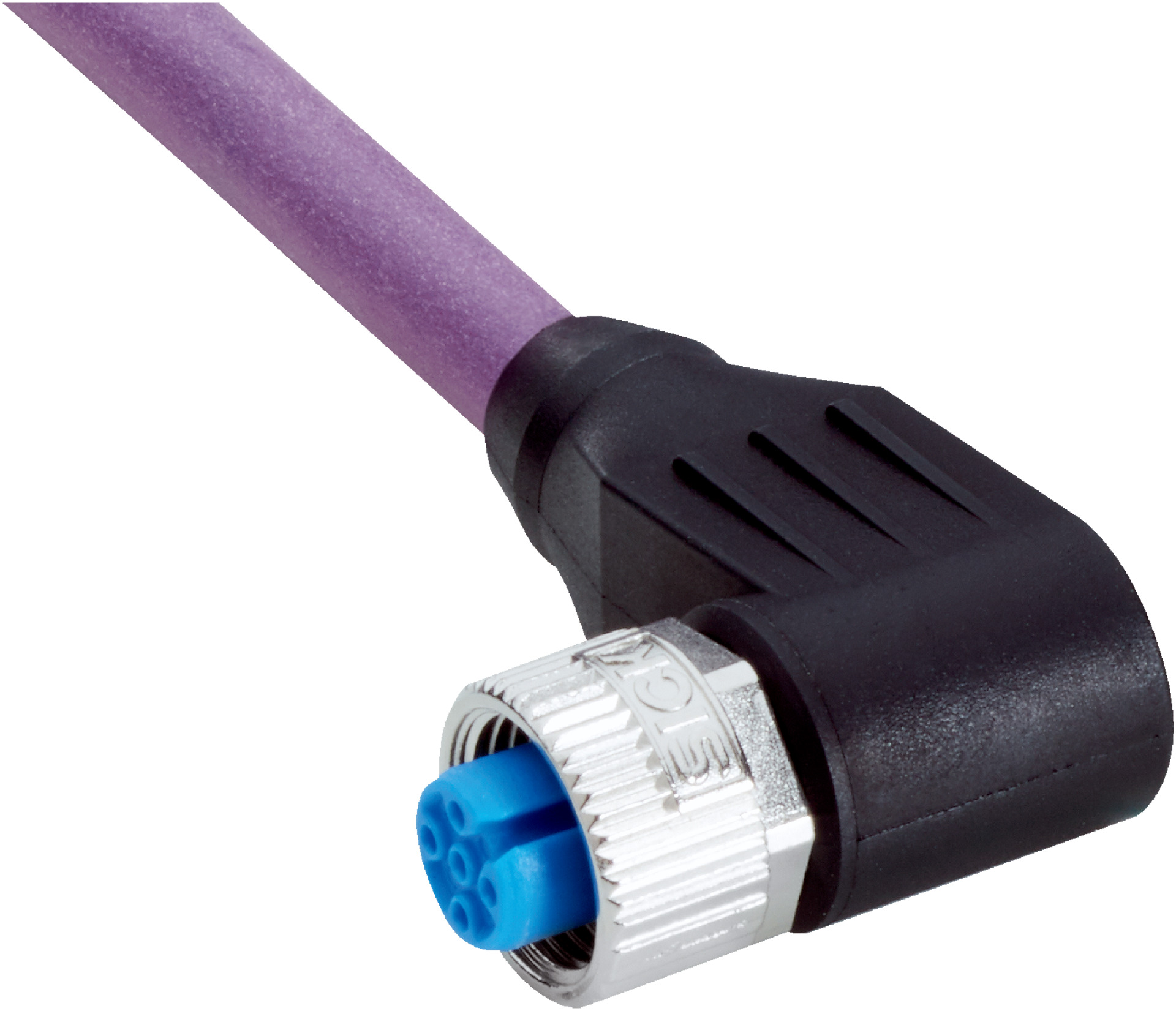

Fieldbus Cable M12 Female Connector | 5m PUR Halogen-Free | Shielded for Noise Reduction | IP65/IP66K/IP67 Rated | by SICK
The Fieldbus Cable M12 Female Connector is designed for industrial automation, featuring a 5m PUR halogen-free cable and a shielded design for effective noise reduction. With an IP65/IP66K/IP67 rating, it ensures reliable performance in harsh environments, making it ideal for fieldbus communication networks like CANopen and DeviceNet™.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.34 mm² + 2 x 0.25 mm² + 1 x 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Operating temperature flexible use: -30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Reference voltage: 60 V DC
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 20mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female M12, 5-pin, angled, A-coded connector
- 5 m PUR halogen-free cable with violet jacket
- Shielded cable for noise reduction
- Flame-resistant and self-extinguishing material
- High bending radius for flexible use and stationary positions
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP66K / IP67 rated enclosure for dust and water protection
- Supports fieldbus protocols CANopen and DeviceNet™
Professional Installation Requirements
- Installation by a qualified electrician or technician experienced with industrial fieldbus systems is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Fieldbus communication networks such as CANopen and DeviceNet™
- Harsh environments requiring flame-resistant and self-extinguishing cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame-resistant and self-extinguishing materials enhance safety
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A15-050C1BXLEAX shielded fieldbus cable is available for immediate purchase, ideal for industrial automation and communication applications requiring robust and reliable cabling.
