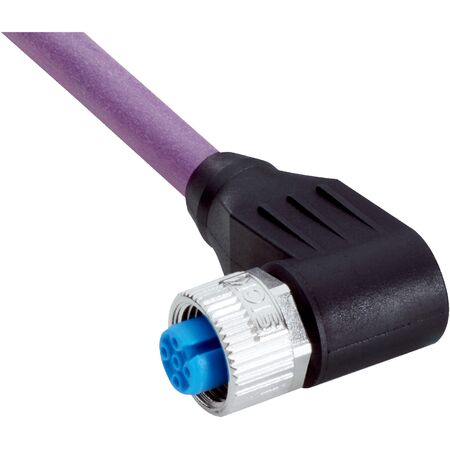

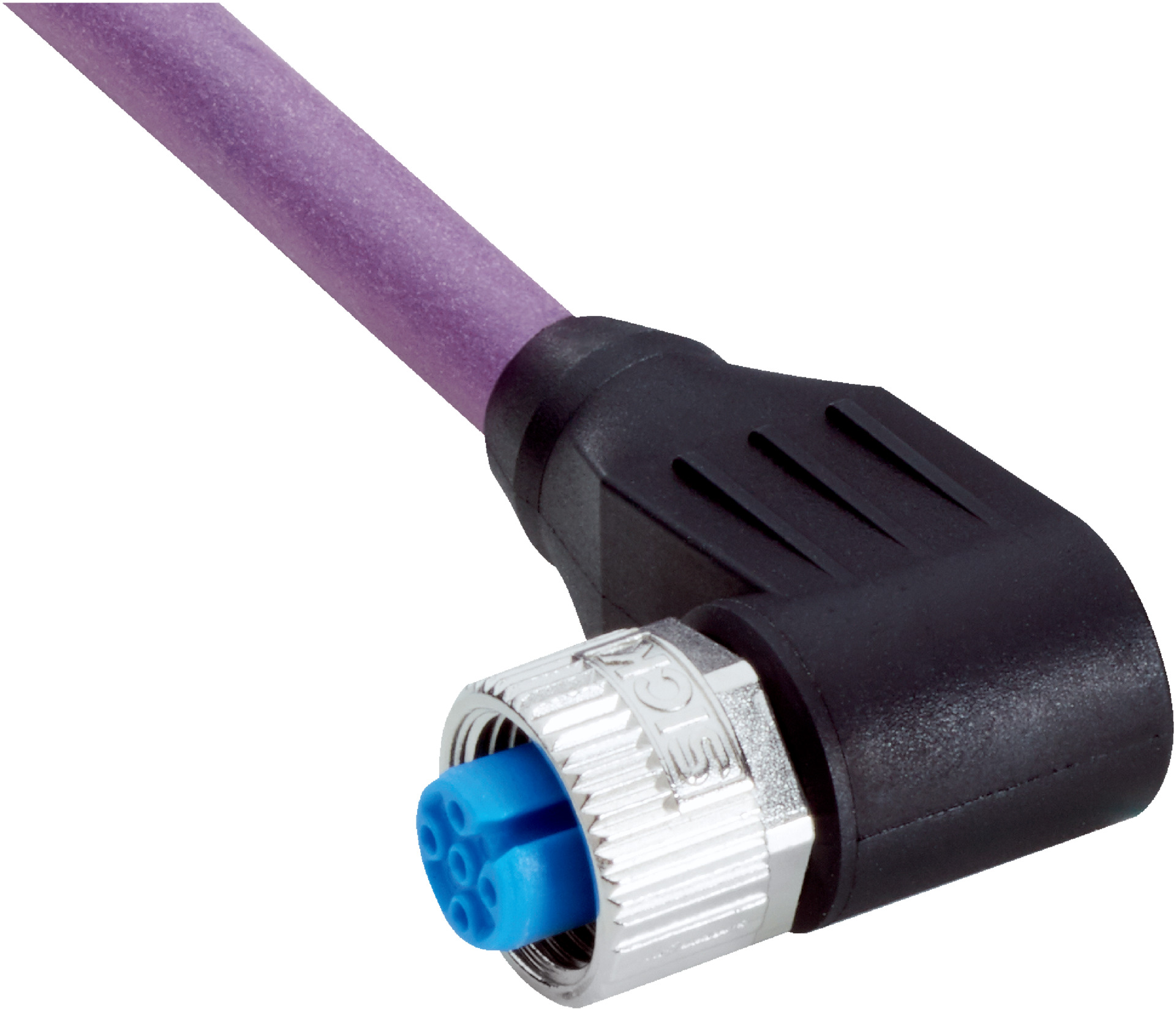

Fieldbus Cable M12 Female Connector | Shielded PUR | IP65/IP66K/IP67 Rated | by SICK
The Fieldbus Cable M12 Female Connector is designed for robust industrial automation, featuring a shielded PUR cable that is halogen-free and flame-resistant. With an IP65/IP66K/IP67 rating, it ensures reliable performance in harsh environments, making it ideal for fieldbus communication networks like CANopen and DeviceNet™.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.34 mm² + 2 x 0.25 mm² + 1 x 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Reference voltage: 60 V DC
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.3 kg
Key Features
- Female M12, 5-pin, angled, A-coded connector
- Shielded PUR cable, halogen-free and flame-resistant
- High bending radius for flexible use and stationary positions
- Operating temperature range from -40 °C to +85 °C depending on component
- IP65 / IP66K / IP67 rated enclosure for dust and water protection
- Supports fieldbus protocols CANopen and DeviceNet™
- UL File No. E335179 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial fieldbus cabling and electrical safety standards.
Applications
- Industrial automation and control systems
- Fieldbus communication networks such as CANopen and DeviceNet™
- Harsh environments requiring flame-resistant and self-extinguishing cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Halogen-free cable jacket reduces toxic emissions in case of fire
- Flame-resistant and self-extinguishing materials enhance safety and reduce environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YG2A15-100C1BXLEAX shielded fieldbus cable is available for immediate purchase, ideal for industrial automation and control system applications.
