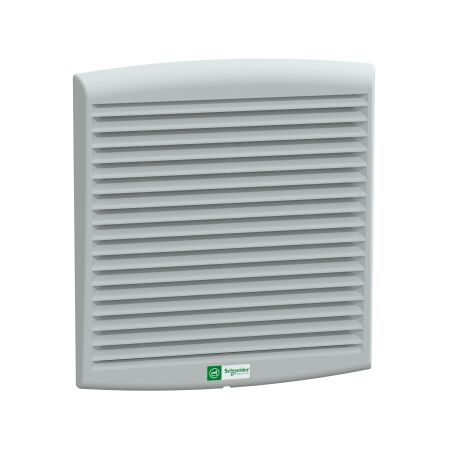

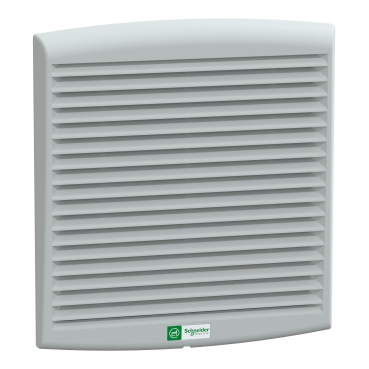

Filterfan 165m3/h | 115V AC | IP54 Rated | G2 Filter Included | @Pack of 1 | by Clipsal
The Filterfan 165m3/h is designed for effective cooling of electrical enclosures, operating at 115V AC with an impressive airflow capacity. With an IP54 rating for dust and water protection, this fan is perfect for control panels and industrial automation cabinets, ensuring optimal temperature maintenance and extending the lifespan of sensitive components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Filterfan 165m3/h | 115V AC | IP54 Rated | G2 Filter Included | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYCVF165M115PF
Alternatively Known As: Enclosure filter fan, Control panel fan, Electrical cabinet fan, SCHNSYCVF165M115PF, Clipsal ClimaSys filter fan
Technical Specifications
- Airflow: 165m3/h
- Voltage: 115V AC
- Frequency: 50/60Hz
- IP Rating: IP54
- Filter class: G2
- Mounting: Panel mount
- Operating temperature: -10°C to +55°C
- Material: ABS plastic housing
- Noise level: 48 dB(A)
- Power consumption: 38W
- Dimensions (H x L x W): 204mm x 95mm x 204mm
- Weight: 1.8 kg
Key Features
- Airflow capacity of 165m3/h for effective enclosure cooling
- Operates at 115V AC
- IP54 rated for dust and water protection
- Includes outlet grille and G2 filter for particle filtration
- ClimaSys forced ventilation technology
- Quick and easy installation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure correct wiring and maintain IP54 protection.
Applications
- Electrical enclosures
- Control panels
- Industrial automation cabinets
- Switchboards
- Data and telecom cabinets
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances energy efficiency by maintaining optimal enclosure temperature
- Extends lifespan of sensitive electrical components
- Reduces risk of overheating and associated energy waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Filterfan 165m3/h 115V IP54 (SCHNSYCVF165M115PF) is available for immediate purchase. Ideal for cooling and protecting electrical enclosures in industrial and commercial environments.
