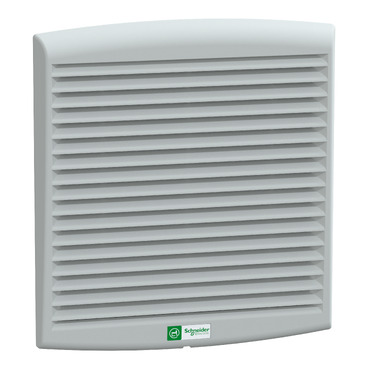

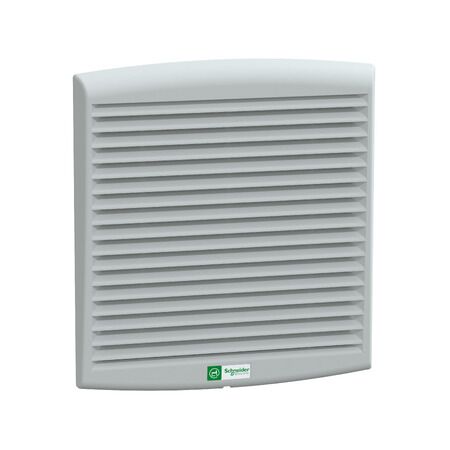

Filterfan 300m³/h 24VDC | IP54 Rated | Low Noise Operation | Snap-Fit Installation | @Pack of 1 | by Clipsal
The Filterfan 300m³/h 24VDC is designed for efficient cooling of electrical enclosures, featuring an IP54 rating for dust and water splash protection. With a low noise level of 54 dB(A) and quick snap-fit installation, it's perfect for control panels and industrial automation cabinets, ensuring optimal temperature maintenance and extending the lifespan of sensitive equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Filterfan 300m³/h 24VDC | IP54 Rated | Low Noise Operation | Snap-Fit Installation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYCVF300M24DPF
Alternatively Known As: Enclosure filter fan, control panel fan, cabinet cooling fan, SCHNSYCVF300M24DPF, Clipsal 24VDC filter fan
Technical Specifications
- Airflow: 300m³/h
- Voltage: 24VDC
- Power consumption: 38W
- IP Rating: IP54
- Noise level: 54 dB(A)
- Filter class: G3
- Operating temperature: -10°C to +55°C
- Mounting: Snap-fit
- Material: UV-resistant plastic
- Dimensions (H x L x W): 325mm x 120mm x 325mm
- Weight: 2.5 kg
Key Features
- Airflow capacity of 300m³/h for efficient cooling
- Operates on 24VDC for low voltage applications
- IP54 rated for dust and water splash protection
- Quick and easy installation with snap-fit mounting
- Low noise operation
- Long-life maintenance-free motor
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure correct wiring and compliance with safety standards.
Applications
- Electrical enclosures
- Control panels
- Industrial automation cabinets
- Switchboards
- Data and server cabinets
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances energy efficiency by maintaining optimal enclosure temperatures
- Extends lifespan of sensitive electrical equipment by preventing overheating
- Reduces maintenance and replacement needs, minimizing electronic waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Filterfan 300m3/h 24VDC IP54 is available for immediate purchase. Ideal for cooling and protecting electrical enclosures in industrial and commercial environments.
