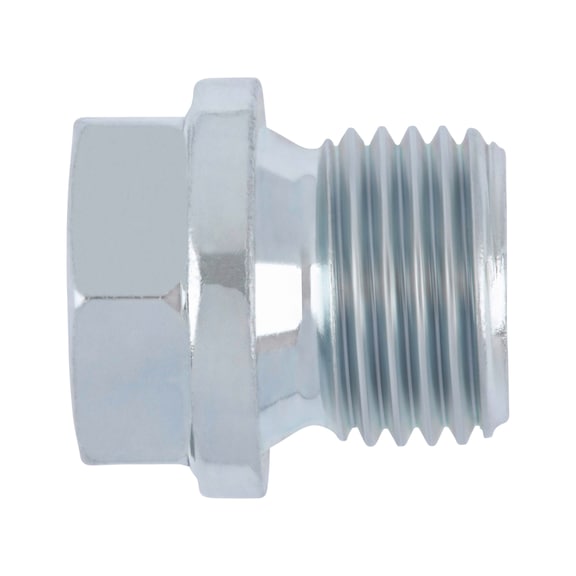

Fine Pitch Oil Drain Plug M14 x 1.5 | Hexagonal Head | Zinc Plated | by Wurth
The Fine Pitch Oil Drain Plug M14 x 1.5 is designed for automotive and machinery maintenance, featuring a durable zinc-plated steel construction and a hexagonal head for easy installation. Ideal for replacing OEM plugs with matching thread patterns, this plug ensures a secure fit and seal, making it a reliable choice for mechanics and technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fine Pitch Oil Drain Plug M14 x 1.5 | Hexagonal Head | Zinc Plated | by Wurth
Brand: Wurth
SKU: 2411415
Alternatively Known As: Oil drain plug M14, Fine pitch drain plug, Hex head oil plug, Metric oil drain bolt
Technical Specifications
- Thread type x nominal diameter x pitch (d1): M14 x 1.5
- Length (l1): 21 mm
- Head diameter (d2): 19 mm
- Head height (k1): 9 mm
- Standards: DIN 910
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Hexagon head
- Head details: With collar
- Drive type: Outer hexagon
- External drive (s1): WS13
- Thread type: Metric thread
- Pitch: 1.5 mm
- Thread form: Fine pitch thread
- Thread length (metric thread): 12 mm
- Design: Standard design
- Product class: B
- Dimensions (H x L x W): 9mm x 21mm x 19mm
- Weight: 0.1 kg
Key Features
- Fine pitch oil drain plugs with collar and hexagonal head
- Parallel threads
- Fine pitch profile on all plugs
- Can be substituted for OEM plugs with same thread pattern
Professional Installation Requirements
- Installation by a qualified mechanic or technician is recommended to ensure proper fit and seal.
Applications
- Automotive oil drain plug replacement
- Machinery maintenance requiring fine pitch oil drain plugs
- OEM plug substitution with matching thread pattern
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Fine Pitch Oil Drain Plug M14 x 1.5 is available now for immediate purchase. Ideal for automotive and machinery maintenance applications.
