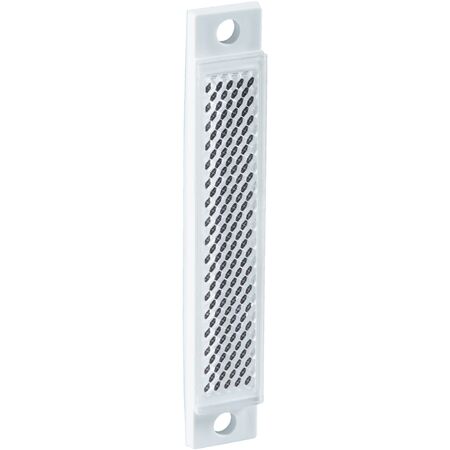

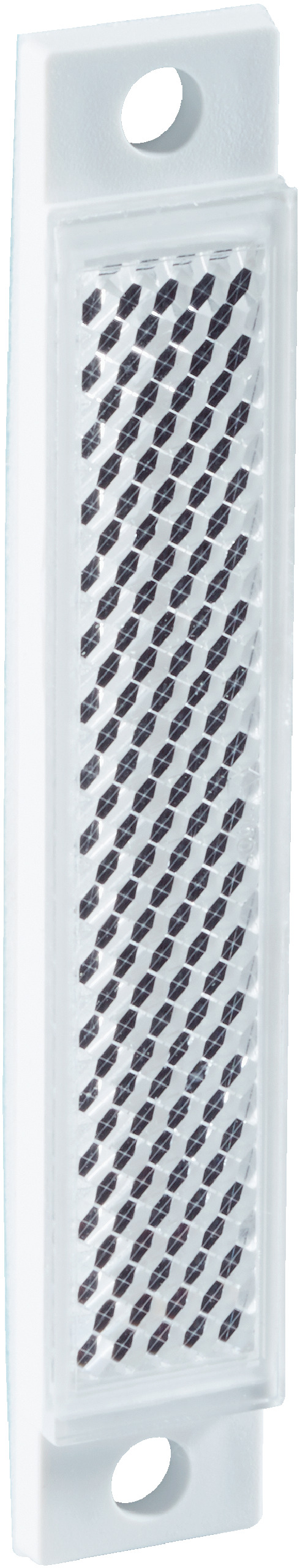

Fine Triple Reflector PL16F | IP67 Rated | Rectangular Design | 15.8 x 5.8 mm Reflective Area | by SICK
The Fine Triple Reflector PL16F is designed for industrial automation, featuring an IP67 rating for dust and water protection. With a rectangular design and a reflective area of 15.8 x 5.8 mm, it ensures clear material detection when used with sensors. Built from durable PMMA/ABS, this reflector operates effectively in temperatures ranging from –30 °C to +50 °C, making it ideal for various applications requiring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product segment: Reflectors and optics
- Product version: Fine triple reflectors
- Mounting hole diameter: 3.5 mm
- Reflective area: 15.8 x 5.8 mm
- Mounting system type: Screw-on
- Material: PMMA/ABS
- Ambient operating temperature: –30 °C to +50 °C
- Ingress protection: IP67
- Dimensions (H x L x W): 48mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Rectangular flat reflector with mounting hole Ø 3.5 mm
- IP67 rated for dust and water protection
- Reflective area 15.8 x 5.8 mm
- Ideal for use with sensors for clear material detection
- Screw-on mounting system
- Material: PMMA/ABS
- Operating temperature range: –30 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting and sensor alignment.
Applications
- Industrial automation for clear material detection
- Use with sensors requiring reflective surfaces
- Mounting in environments needing IP67 protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK PL16F Fine Triple Reflector is available for immediate purchase, ideal for industrial sensor applications requiring reliable clear material detection.
