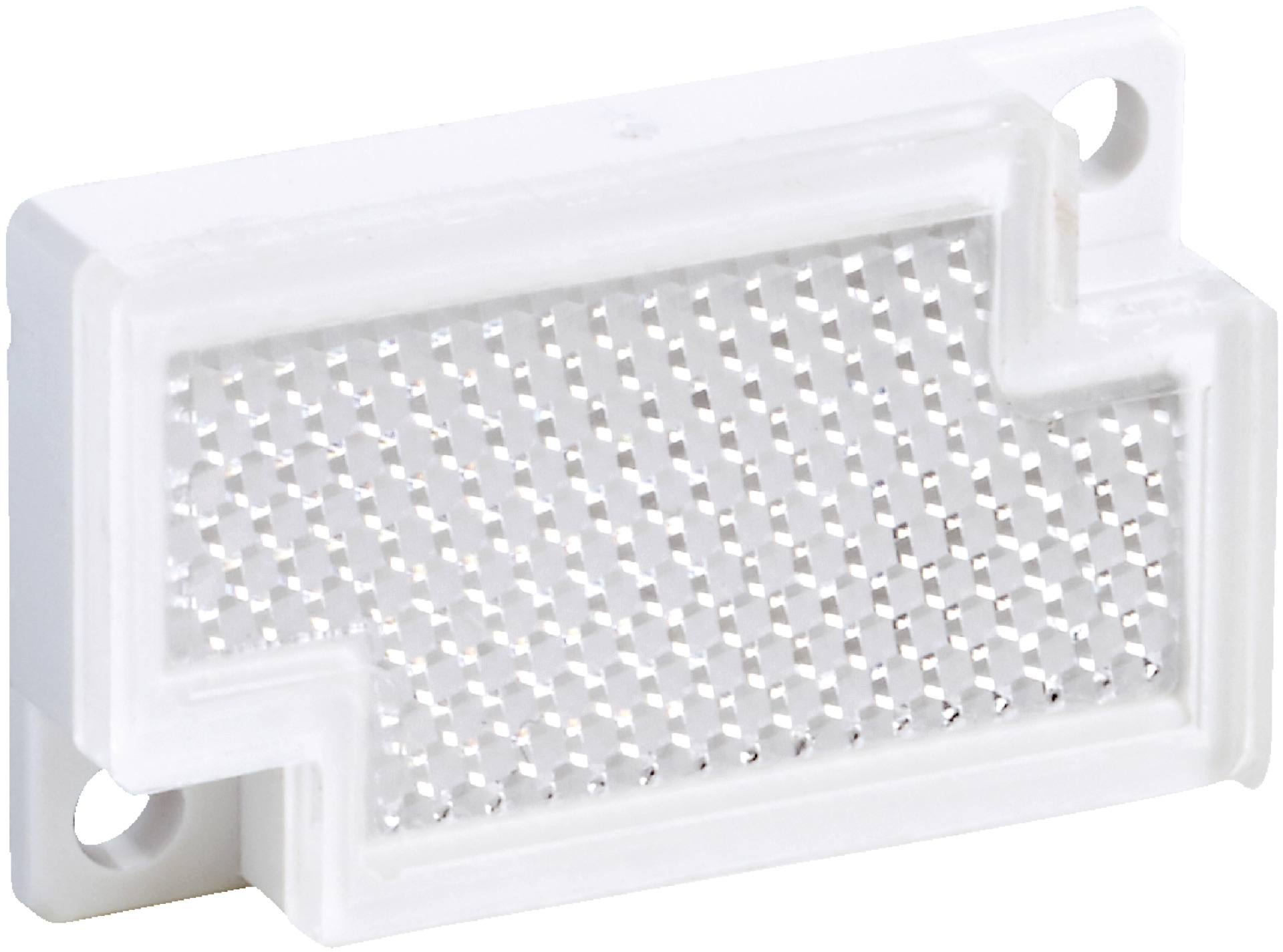

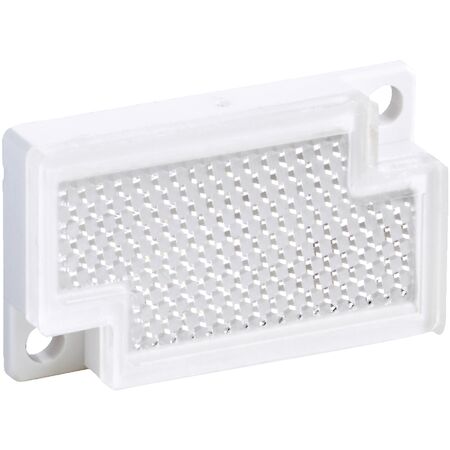

Fine Triple Reflector PL9F | IP67 Rated | Durable PMMA/ABS | Rectangular Design | by SICK
The Fine Triple Reflector PL9F is designed for industrial automation, featuring an IP67 rating for dust and water protection. With a durable PMMA/ABS construction and a reflective area of 15.8 x 5.8 mm, it ensures reliable material detection in various applications. Ideal for use with sensors requiring reflective surfaces, this reflector operates efficiently in ambient temperatures from -30°C to +50°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product segment: Reflectors and optics
- Product version: Fine triple reflectors
- Mounting system type: Screw-on with M1.5 mounting hole
- Material: PMMA/ABS
- Ambient operating temperature: -30°C to +50°C
- Reflective area: 15.8 x 5.8 mm
- IP rating: IP67
- Dimensions (H x L x W): 14mm x 10mm x 23mm
- Weight: 0.1 kg
Key Features
- Rectangular flat reflector with fine triple reflector design
- Mounting hole M1.5 for screw-on installation
- IP67 rated for dust and water protection
- Reflective area of 15.8 x 5.8 mm
- Material made of PMMA/ABS for durability
- Operates in ambient temperatures from -30°C to +50°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting and sensor alignment.
Applications
- Industrial automation for clear material detection
- Use with sensors requiring reflective surfaces
- Suitable for mounting in machinery and production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK PL9F Fine Triple Reflector is available for immediate purchase, ideal for industrial sensor applications requiring reliable clear material detection.
