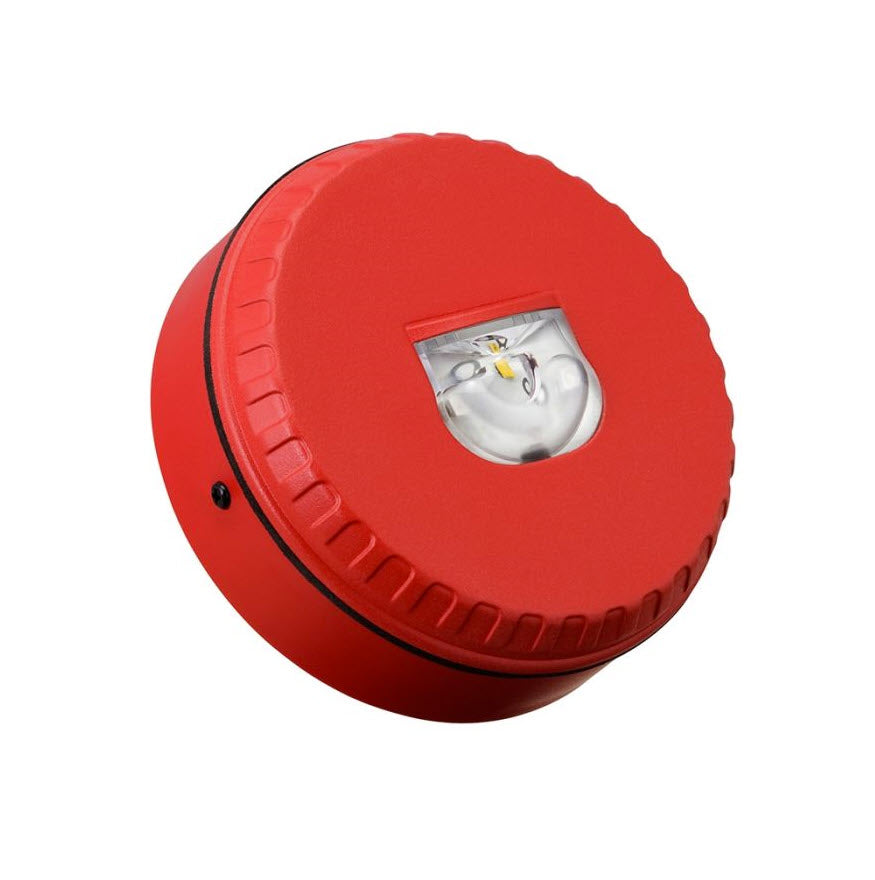

Fire Alarm Strobe Light Compliance 7.5m Coverage Slim by Firebox
The Fire Alarm Strobe Light Compliance 7.5m Coverage Slim by Firebox provides visual fire alarm indication with coverage up to 7.5 meters, switchable to 3 meters. The flash rate is switchable between 1Hz and 0.5Hz, with dimensions (H x L x W) 100mm x 50mm x 100mm. Compliance includes EN54-23 / AS ISO 7240.23 standards. Review the technical specifications, applications and professional installation requirements below before specifying the unit.
Sign in
Please login to continue to your account.
- Model Number: STR-SOL-W-RR
- Compliance: EN54-23 / AS ISO 7240.23
- Coverage: Up to 7.5 meters, switchable to 3 meters
- Flash Rate: Switchable between 1Hz and 0.5Hz
- Illumination: 0.4 lux over entire coverage area
- Input Voltage: Wide range supported
- Design: Slim line with shallow base
- Locking bases for secure installation
- Dimensions (H x L x W): 100mm x 50mm x 100mm
- Weight: 0.3 kg
- Conforms with EN54-23 / AS ISO 7240.23 standards
- LED technology with unique optics for effective light management
- Coverage up to 7.5 meters with a coverage switch for smaller areas
- Flash rate switch with 1Hz or 0.5Hz settings to reduce power consumption
- Wide input voltage range and soft start-up feature
- Locking bases for secure installation
- Meets required illumination of 0.4 lux over the entire coverage area
- Slim line design suitable for various applications
- Installation should be performed by a qualified fire safety professional or licensed electrician to ensure compliance with fire safety regulations.
- Fire alarm systems in commercial buildings
- Residential fire safety installations
- Industrial fire detection and alert systems
- Public and institutional buildings requiring visual fire alarms
- AS/NZS 1851 – Routine Service of Fire Protection Systems
- Energy-efficient LED technology reduces power consumption
- Flash rate and coverage switches allow for power saving in smaller areas
Standard manufacturer warranty applies; please refer to Firebox for specific terms.
The FireSense Strobe Solista LX Wall Red Body Red Flash Shallow Base is available for immediate purchase, ideal for fire safety applications in commercial, residential, and industrial settings.
Q: What coverage options does the Fire Alarm Strobe Light Compliance 7.5m Coverage Slim support?
A: The strobe light provides coverage up to 7.5 meters, switchable to 3 meters, with a flash rate switchable between 1Hz and 0.5Hz.
Q: Which compliance standards are listed for this Firebox strobe light?
A: The listed standards include EN54-23 / AS ISO 7240.23 and AS/NZS 1851 – Routine Service of Fire Protection Systems.
For additional visual signalling, a mini strobe light can provide a supplementary warning indication in suitable applications.
For applications requiring explosion-protected signalling equipment, an explosion-proof strobe is another option to consider.
A LED signal beacon offers another visual signalling option for industrial and commercial installations.
