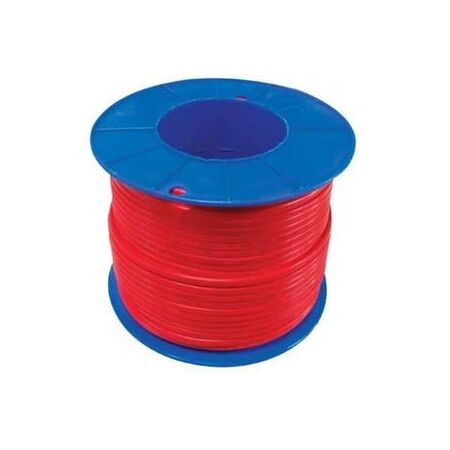

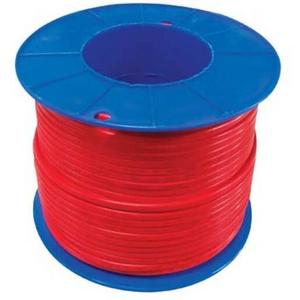

Fire Control Twisted Cable 7/0.40 2 Core | LSZH Compliant | Red | by Electra Cables
Fire Control Twisted Cable 7/0.40 2 Core is designed for fire alarm systems and evacuation applications. With a voltage rating of 250 Volts and a temperature range of -15°C to 75°C, this light-duty cable ensures safety with its Low Smoke Zero Halogen (LSZH) construction. Ideal for professional installations, it meets AS/NZS compliance standards, making it a reliable choice for fire safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fire Alarm Cable, Fire Control Cable, LSZH Fire Cable, Evacuation System Cable
Technical Specifications
- Conductor: Twisted 7 strands of 0.40mm diameter
- Core Count: 2 cores
- Voltage Rating: 250 Volts
- Temperature Range: -15°C to 75°C
- Sheath Colour: Red
- Cable Length: 100 meters
- Low Smoke Zero Halogen (LSZH) compliant
- Dimensions (H x L x W): 10mm x 100000mm x 10mm
- Weight: 2.5 kg
Key Features
- Light duty cable designed specifically for fire control applications
- Low Smoke Zero Halogen (LSZH) for enhanced safety
- Operating voltage of 250 Volts
- Operating temperature range from -15°C to 75°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with fire safety systems to ensure compliance with safety standards and optimal performance.
Applications
- Fire Alarm Systems
- Smoke Detectors
- Speakers
- Modules
- Evacuation Systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Low Smoke Zero Halogen construction reduces toxic emissions during fire incidents, improving safety for occupants and emergency responders.
Warranty Information
Standard manufacturer warranty applies. Please refer to Electra Cables for specific warranty details.
Available Now
Electra Cables Fire Control Twisted 7/0.40 2 Core Light Duty Cable 100M Red is available for immediate purchase, ideal for fire alarm and evacuation system installations.
