Fire Hose Nozzle 38mm | Variable Pattern | 230-360-475 LPM Flow Rate | Durable Alloy & PVC by Firebox

BRAND: Firebox
SKU: 150-236AP
$2,497.00 List price: $3,022.20
+
The 38mm fire hose nozzle features a variable pattern for adjustable spray and flow rates of 230, 360, and 475 LPM—ideal for firefighting and fire suppression systems. Built for industrial and commercial fire safety, it includes a 198cm pick-up hose and a stainless steel pick-up tube for efficient operation.

Product Name/Title: Fire Hose Nozzle 38mm | Variable Pattern | 230-360-475 LPM Flow Rate | Durable Alloy & PVC by Firebox

Brand: Firebox

SKU: 150-236AP

Alternatively Known As: Fire Hose Nozzle 38mm, Self-Educting Fire Nozzle, Variable Pattern Fire Nozzle

Technical Specifications
  • Material: Alloy & PVC
  • Size: 38mm
  • Suits: 38mm BSP male adaptor
  • Operating pressure: 3.5 Bar
  • Flow rate: 230-360-475 LPM

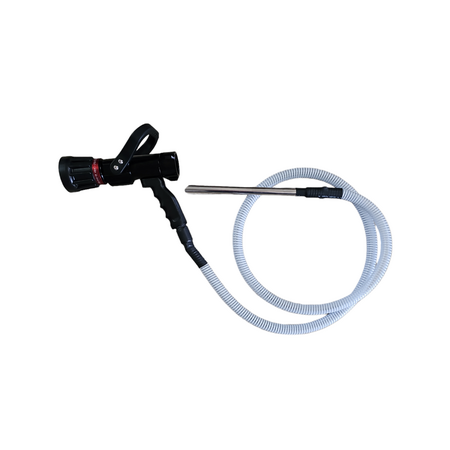

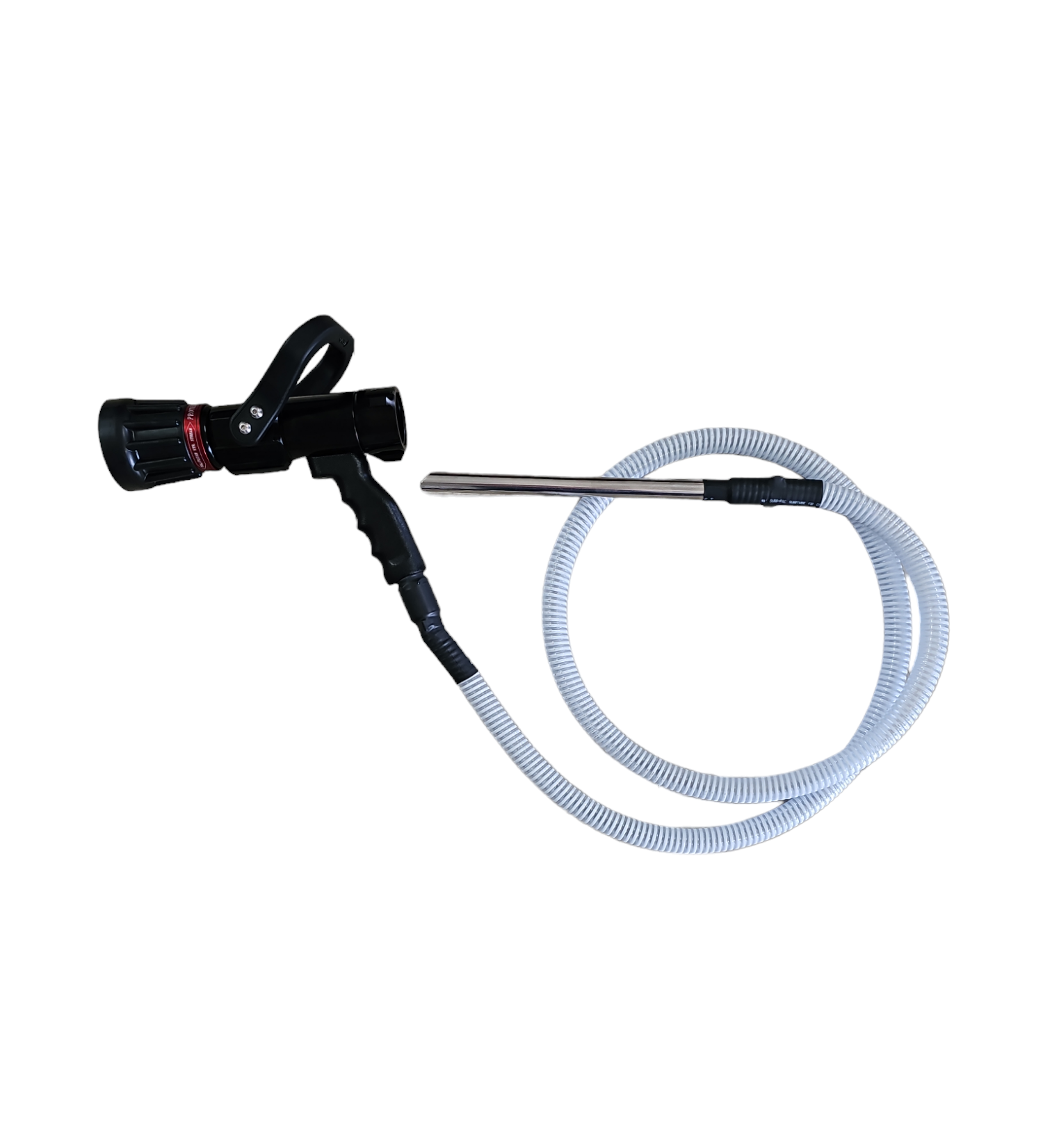

  • Includes 198cm pick up hose and 38cm stainless steel pick up tube
  • Dimensions (H x L x W): 300mm x 400mm x 100mm
  • Weight: 1.2 kg
Key Features
  • Variable pattern nozzle for adjustable spray
  • Flow rates of 230, 360, and 475 LPM
  • Includes 198cm pick up hose and 38cm stainless steel pick up tube
  • Constructed from durable alloy and PVC materials
  • Operates at 3.5 Bar pressure
Professional Installation Requirements
  • Installation and maintenance should be performed by trained fire safety professionals to ensure compliance and optimal performance.
Applications
  • Firefighting and fire suppression systems
  • Industrial and commercial fire safety equipment
  • Use with 38mm BSP male adaptor fire hoses
Standards & Compliance
  • Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
  • Efficient water usage with variable flow rates reduces water waste during firefighting.
Warranty Information

12 months warranty against manufacturing defects.

Available Now

The Protek 38mm female self-educting variable pattern nozzle is available now for immediate purchase. Ideal for firefighting and fire safety applications.
