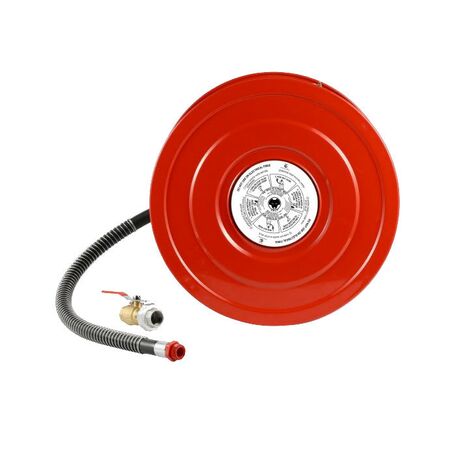

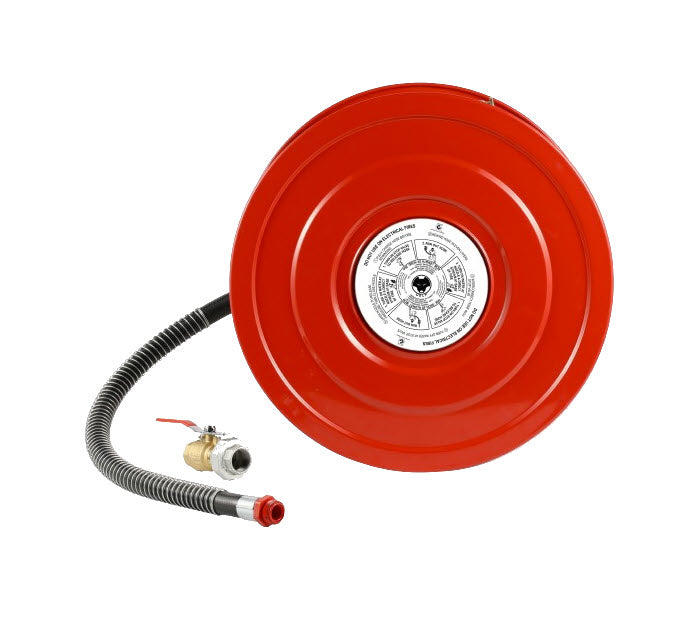

Fire Hose Reel Induction System | 25mm Diameter | 30m Length | Brass Nozzle | Red Powder Coated by Firebox

BRAND: Firebox
SKU: HR3025-INDUCTION
$4,322.50 List price: $5,231.70
Free pick up (over 1 meter)
For delivery quote message
30 Days Return Delivery Options
Fire hose reel induction system featuring a 25mm diameter and 30m length—ideal for commercial fire safety. Built for industrial applications, with a durable brass nozzle and robust metal construction for reliable performance.

Product Name/Title: Fire Hose Reel Induction System | 25mm Diameter | 30m Length | Brass Nozzle | Red Powder Coated by Firebox

Brand: Firebox

SKU: HR3025-INDUCTION

Alternatively Known As: Fire Hose Reel Induction System, 25mm Fire Hose Reel, Swing Arm Fire Hose Reel, Fire Hose Cabinet with Induction System

Technical Specifications
  • Hose Diameter: 25mm
  • Hose Length: 30 metres
  • Nozzle Material: Brass
  • Drum Material: Metal with red powder coating
  • Waterway Material: Stainless steel
  • Inlet Pipe/Union Material: PVC
  • Maximum Working Pressure: 1.4 MPa
  • Hydraulic Test Pressure: 2.0 MPa
  • Mounting Plate: 1mm steel, powder-coated red
  • Plate Diameter: 550mm
  • Dimensions (H x L x W): 1100mm x 330mm x 730mm
  • Weight: 25 kg
Key Features

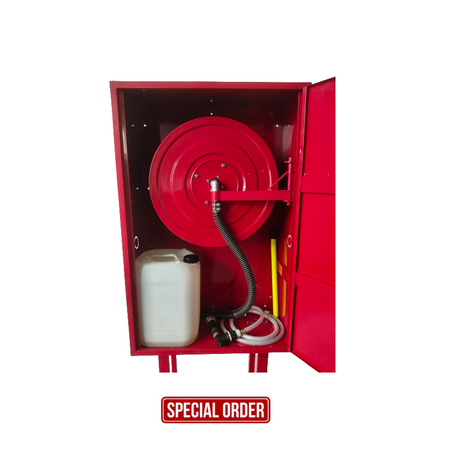

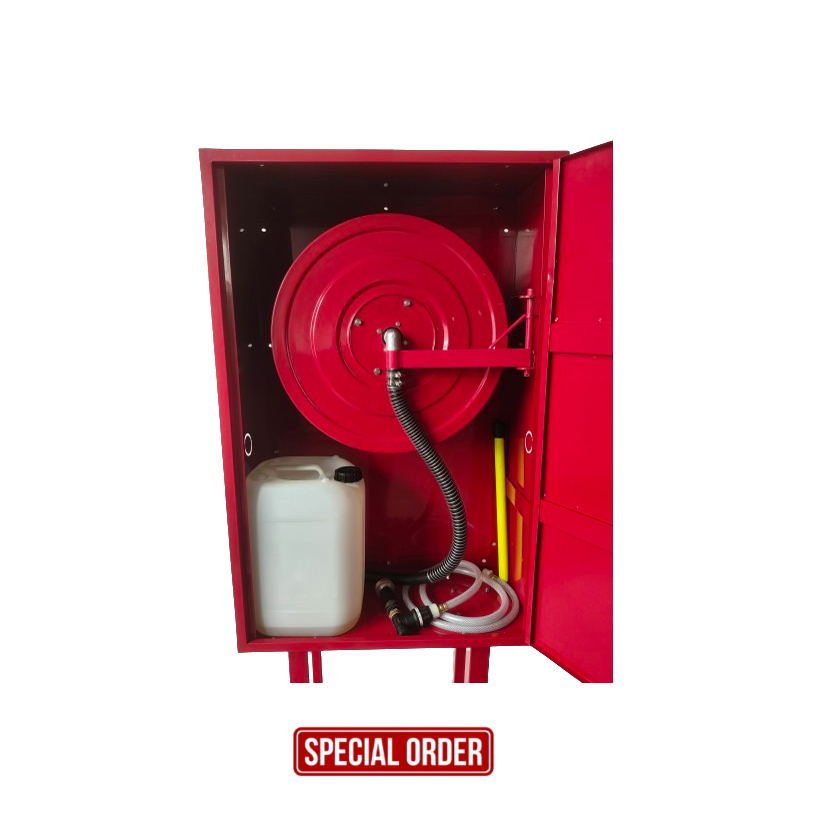

  • Includes 25mm x 30m swing arm fire hose reel, cabinet with legs, and induction system
  • Cabinet dimensions: 1100mmH x 730mmW x 330mmD
  • Suitable for 20L F-500EA agent or Newtonian firefighting foam solution
  • Swing arm hose reel with 25mm brass nozzle
  • Metal red powder coated drum and stainless steel waterway construction
  • Maximum working pressure of 1.4 MPa and hydraulic test pressure of 2.0 MPa
  • Mounting plate made of 1mm steel with powder-coated red finish
  • Certified with Global-Mark ID 109076 and approved to AS/NZS 1221
Professional Installation Requirements
  • Installation should be performed by certified fire safety professionals to ensure compliance with safety standards and proper system functionality.
Applications
  • Fire safety in commercial and industrial buildings
  • Emergency fire response systems
  • Fire protection in warehouses and manufacturing facilities
Standards & Compliance
  • Complies with AS/NZS 1221 - Fire Hose Reels
Environmental Benefits
  • Supports use of firefighting foam solutions that can be environmentally safer than traditional agents
  • Durable metal construction reduces need for frequent replacements
Warranty Information

12 months warranty provided by the manufacturer.

Available Now

The Wolf Swing Arm 25mm x 30m Fire Hose Reel Induction System is available for immediate purchase, ideal for commercial and industrial fire safety applications.
