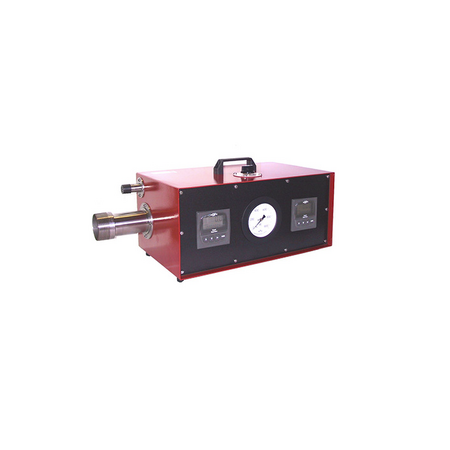

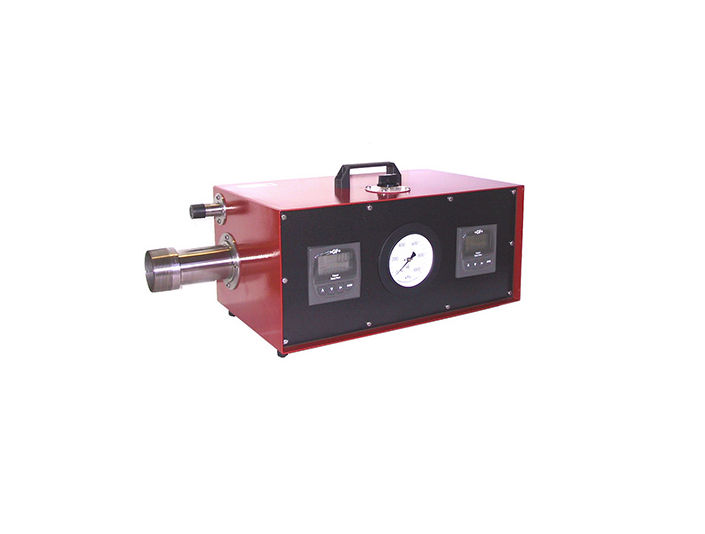

Fire Hydrant & Hose Reel Tester | Dual Flowtubes | High Accuracy | Portable Design by Firebox
Fire hydrant and hose reel tester with dual flowtubes for 2 1/2” and 3/4” sizes—ideal for testing flow rates and pressure in fire safety equipment. Built for field use by trained personnel, featuring high accuracy measurements and a durable, portable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fire Hydrant & Hose Reel Tester | Dual Flowtubes | High Accuracy | Portable Design by Firebox
Brand: Firebox
SKU: FLOWTESTER2
Alternatively Known As: Fire Hydrant Flow Tester, Hose Reel Flow Tester, Fire Hydrant Flow Meter, Hose Reel Flow Meter, Fire Safety Flow Tester
Technical Specifications
- Two independent flowtubes for different sizes: 2 1/2” and 3/4”
- Flow range 2 1/2” tube: 0 to 1800 LPM
- Flow range 3/4” tube: 0 to 180 LPM
- Pressure gauge range options: 0 to 1000 kPa or 0 to 1600 kPa
- Accuracy on 2 1/2” line: ±2% F.S.D. up to 1200 LPM, ±3% from 1200 to 1800 LPM
- Accuracy on 3/4” line: ±2% F.S.D. up to 120 LPM, ±3% from 120 to 180 LPM
- Accuracy on pressure gauge: ±1% F.S.D.
- Flowmeters include totaliser
- Flow tubes made of 316 stainless steel with BSPT male connections
- Dimensions (H x L x W): 230mm x 510mm x 310mm
- Weight: 12 kg
Key Features
- Two independent flowtubes for hosereel and hydrants
- Two independent digital flowmeters with totaliser
- Flowmeters can read in LPM or LPS
- Mains power not required
- Cabinet manufactured in powder coated aluminium
- 316 stainless steel flow tubes with BSPT male connections
- Flow range on 2 1/2” tube: 0 to 1800 LPM
- Flow range on 3/4” tube: 0 to 180 LPM
- Pressure gauge range: 0 to 1000 kPa or 0 to 1600 kPa
- High accuracy flow and pressure measurements
- Includes flowmeter calibration certificate
Professional Installation Requirements
- No professional installation required; device is portable and designed for field use by trained personnel.
Applications
- Testing flow rates and pressure of fire hydrants
- Testing flow rates and pressure of hose reels
- Fire safety equipment maintenance and compliance verification
Standards & Compliance
- Complies with AS/NZS 2419 – Fire Hydrant Systems
Environmental Benefits
- Mains power not required, reducing energy consumption during testing
- Durable powder coated aluminium cabinet extends product life and reduces waste
Warranty Information
Warranty and service support provided by Ambit Instruments with full facilities for service and repair.
Available Now
The Ambit PF-2D Fire Hydrant & Hose Reel Tester is available for immediate purchase. Ideal for fire safety equipment testing and maintenance in commercial and industrial settings.
