Fire Rated Door Closer 40-80kg Adjustable Speed Silver Firebox

BRAND: Firebox
SKU: CDC-1-S
$140.90 List price: $187.90
+ −
30 Days Return Electricians Unlock Trade Access

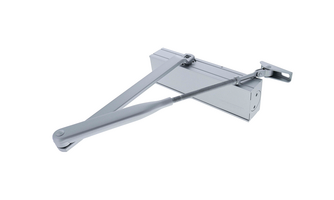

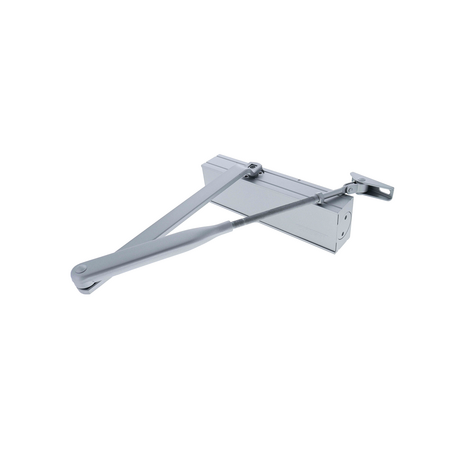

Carbine (by Firebox) CDC-1 Radius fire-rated door closer suits doors 40-80kg with adjustable closing speed and backcheck. 2-hour fire rating to EN1154.
Technical Specifications
  • Fire rated for 2 hours
  • Constructed from 6061 grade aluminium
  • Tested to EN1154 standards
  • Cycle tested to 500,000 cycles
  • Standard arm 180 degree opening
  • Parallel arm 130 degree opening
  • Sliding arm pull 180 degree, push 110 degree opening
  • Hold open 130 degree opening
  • Adjustable closing & latching speed
  • Adjustable back check 70 to 90 degrees
  • Thermo-constant valve
  • Surface mount and transom mount on push side
  • Rack & pinion mechanism
  • Positional mounting for closer strength
  • Non-handed installation
  • Supplied with timber and self-drilling metal screws
  • Adjustable power size 2-4
  • Max door width 1100mm
  • Dimensions (H x L x W): 60mm x 39mm x 207mm
  • Weight: 1.5 kg
Key Features
  • Fire rated for 2 hours
  • Constructed from 6061 grade aluminium
  • Tested to EN1154 standards
  • Cycle tested to 500,000 cycles
  • Adjustable closing and latching speed
  • Adjustable back check from 70 to 90 degrees
  • Thermo-constant valve for consistent performance
  • Surface and transom mount on push side
  • Rack and pinion mechanism
  • Non-handed installation
  • Supplied with standard and parallel arm fittings
  • Slide rail arms include hold open insert
  • Adjustable power size 2-4
  • Parallel bracket mount on size 3-4
Professional Installation Requirements
  • Professional installation by a qualified tradesperson is recommended to ensure compliance with fire safety and operational standards.
Applications
  • Commercial and residential doors requiring controlled closing
  • Fire-rated doors needing 2-hour fire protection
  • Single-action doors with widths up to 1100mm
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable aluminium construction extends product life reducing waste
  • Adjustable settings optimize door closing efficiency reducing energy loss
Warranty Information

Warranty details not specified; typically includes manufacturer defects coverage.

Available Now

The Carbine CDC-1 Radius EN2-4 door closer is available for immediate purchase, ideal for fire-rated and commercial door applications.


FAQ

Q: What door weight range is the Fire Rated Door Closer 40-80kg Adjustable Silver (Firebox) Clipsal CDC-1-S designed for?
A: It is designed for doors weighing between 40kg and 80kg.

Q: What adjustable features are included with this door closer?
A: The unit features adjustable closing speed and backcheck for controlled door operation.


A door closer EN2-4 40-80kg fire-rated 2-hours adjustable silver is suitable for projects requiring controlled door closing on compatible fire door installations.

Install with a fire-rated leverset where compliant door hardware is required on commercial and residential fire doors.

A fire-rated door knobset can be used on compatible door assemblies requiring matching fire-rated hardware.

Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
