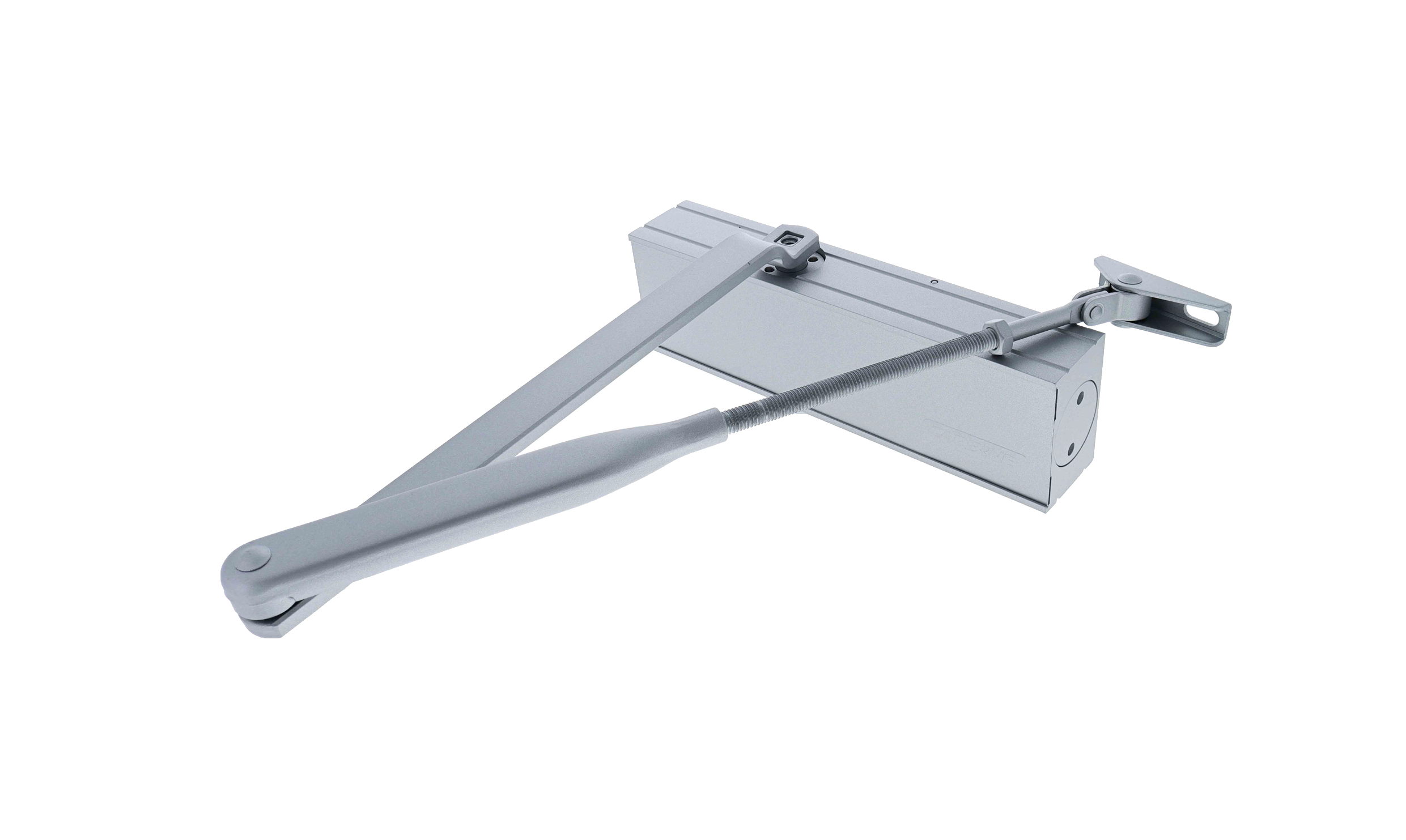

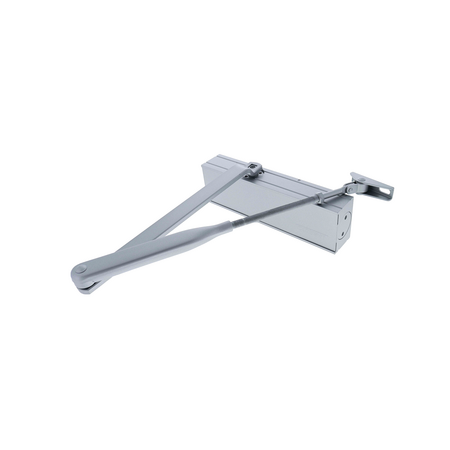

Fire Rated Door Closer | 40kg to 80kg Capacity | Adjustable Speed & Backcheck | Silver by Firebox
Fire rated door closer designed for 40kg to 80kg doors, featuring adjustable closing speed and backcheck—ideal for commercial and residential applications. Built for safety compliance, with durable 6061 aluminium construction for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fire Rated Door Closer | 40kg to 80kg Capacity | Adjustable Speed & Backcheck | Silver by Firebox
Brand: Firebox
SKU: CDC-1-S
Alternatively Known As: Fire Rated Door Closer, Carbine CDC-1 Door Closer, EN2-4 Door Closer, Aluminium Door Closer with Backcheck
Technical Specifications
- Fire rated for 2 hours
- Constructed from 6061 grade aluminium
- Tested to EN1154 standards
- Cycle tested to 500,000 cycles
- Standard arm 180 degree opening
- Parallel arm 130 degree opening
- Sliding arm pull 180 degree, push 110 degree opening
- Hold open 130 degree opening
- Adjustable closing & latching speed
- Adjustable back check 70 to 90 degrees
- Thermo-constant valve
- Surface mount and transom mount on push side
- Rack & pinion mechanism
- Positional mounting for closer strength
- Non-handed installation
- Supplied with timber and self-drilling metal screws
- Adjustable power size 2-4
- Max door width 1100mm
- Dimensions (H x L x W): 60mm x 39mm x 207mm
- Weight: 1.5 kg
Key Features
- Fire rated for 2 hours
- Constructed from 6061 grade aluminium
- Tested to EN1154 standards
- Cycle tested to 500,000 cycles
- Adjustable closing and latching speed
- Adjustable back check from 70 to 90 degrees
- Thermo-constant valve for consistent performance
- Surface and transom mount on push side
- Rack and pinion mechanism
- Non-handed installation
- Supplied with standard and parallel arm fittings
- Slide rail arms include hold open insert
- Adjustable power size 2-4
- Parallel bracket mount on size 3-4
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure compliance with fire safety and operational standards.
Applications
- Commercial and residential doors requiring controlled closing
- Fire-rated doors needing 2-hour fire protection
- Single-action doors with widths up to 1100mm
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminium construction extends product life reducing waste
- Adjustable settings optimize door closing efficiency reducing energy loss
Warranty Information
Warranty details not specified; typically includes manufacturer defects coverage.
Available Now
The Carbine CDC-1 Radius EN2-4 door closer is available for immediate purchase, ideal for fire-rated and commercial door applications.
