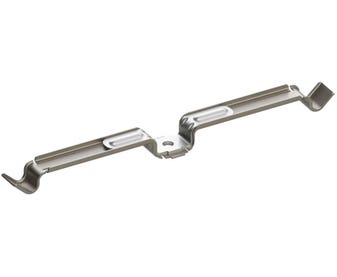

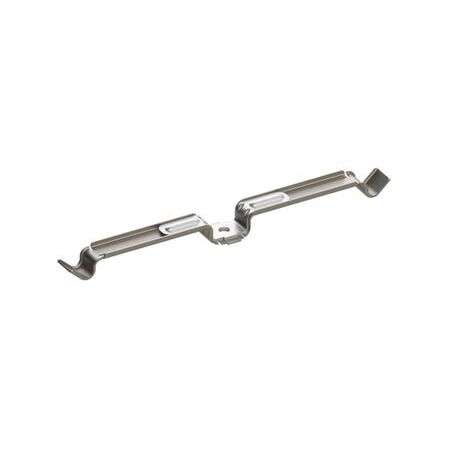

Fire Rated Moustache Clip for 16 Cable | E30 Compliant | Spring Steel Design | 7.1mm Hole by Cabac
The Cabac Caddy Fire Rated Moustache Clip offers a fast, secure, and fire-compliant solution for running cables along ceilings, ideal for data and electrical cable management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy fire rated Moustache clip 16 cable and 6mm hole
Brand: Cabac
SKU: PKM16H6IN
Alternatively Known As: Moustache Clip, Cable Pressure Clip, Fire Rated Cable Clip, Spring Steel Cable Clip
Technical Specifications
- Material: Spring Steel
- Finish: nVent Caddy Armour
- Hole Diameter: 7.1mm
- Length Overall: 233.5mm
- Maximum Cables: 12 cables of 1.5mm² 3 and 4 core (max diameter 12.5mm)
- Maximum Cables: 14 cables of 1.5mm² 2 core (max diameter 12.5mm)
- Fire Rating: E30 compliant according to DIN4102-12 with Eucasafe (N)HXCH FE 180 E30 insert
- Dimensions (H x L x W): n/a mm x 234mm x n/a mm
- Weight: 0.1 kg
Key Features
- Slim line, double-sided design for quick and professional installation
- Made from special spring steel for secure cable retention
- Includes fire-rated insert ensuring compliance with E30 fire rating (DIN4102-12)
- Flexible clip allows cable insertion after installation
- Rounded edges prevent cable damage
- Can be fitted with nail gun, self-tapping screw, or masonry anchor
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure compliance with fire safety standards and secure cable management.
Applications
- Cable management along ceilings in commercial and residential buildings
- Data cable installation in office and industrial environments
- Fire-rated cable support in construction and renovation projects
Standards & Compliance
- Complies with AS/NZS 3013 – Electrical installations – Classification of the fire and mechanical performance of wiring systems
Environmental Benefits
- Durable spring steel construction reduces need for frequent replacements
- Supports organized cable management reducing waste and damage
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac Caddy Fire Rated Moustache Clip is available now for immediate purchase. Ideal for fire-rated cable management in commercial and residential construction.
