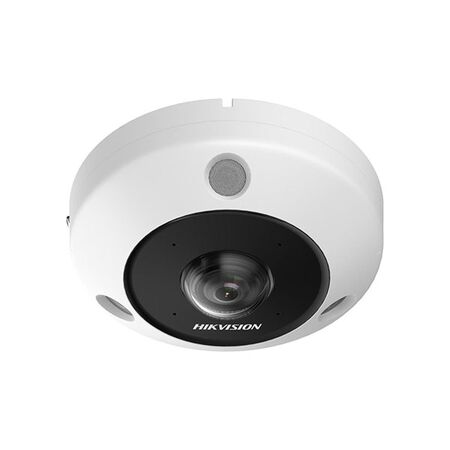

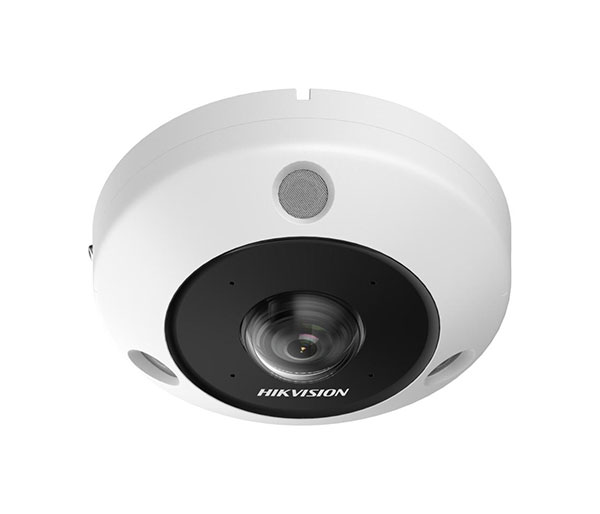

Fisheye Camera 12MP 1.29mm DeepInView Hikvision
Hikvision fisheye camera features 12MP resolution, a 1.29mm lens and DeepInView. Ideal for CCTV installs needing wide area coverage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 12MP Fisheye IP Camera, DeepinView 360° Fisheye Camera, DS-2CD63C5G0-IVS 1.29mm Camera
Technical Specifications
- Model: DS-2CD63C5G0-IVS(1.29mm)(D)
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Maximum Resolution: 3504 × 3504
- Lens: Fixed 1.29mm fisheye lens, f/2.2
- Field of View: 180° horizontal and 180° vertical
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Frame Rate: Up to 25 fps at 50 Hz or 30 fps at 60 Hz
- Infrared Range: Up to 15m, 850nm
- Storage: MicroSD, microSDHC or microSDXC up to 256GB
- Network Interface: 10/100/1000M self-adaptive RJ45 Ethernet
- Power Supply: 12V DC or PoE IEEE 802.3af Class 3
- Maximum Power Consumption: 9W via 12V DC or 10W via PoE
- Audio: Two built-in microphones, one built-in speaker, line input and line output
- Protection Rating: IP67 and IK10
- Operating Temperature: -40°C to 60°C
- Material: Metal
- Compliance: RCM AS/NZS CISPR 32:2015; IEC 60529; IEC 62262
- Dimensions (H x L x W): 55mm x 167.4mm x 152.8mm
- Weight: 0.7 kg
Key Features
- 12MP panoramic imaging for wide-area surveillance
- 1.29mm panomorph fisheye lens with 180° horizontal and vertical field of view
- Supports multiple dewarped views including panorama, fisheye and multi-PTZ layouts
- DeepinView analytics including people counting, queue management, heat mapping and intersection analysis
- Up to 15m infrared illumination for low-light and dark environments
- Built-in microphone and speaker for two-way audio
- IP67 weather and dust resistance
- IK10 impact and vandal resistance
- H.265+ compression helps reduce bandwidth and storage requirements
- PoE or 12V DC power options
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV/security installer. Structured cabling and any mains-connected PoE equipment must be installed in accordance with applicable Australian requirements, including AS/NZS 3000 where relevant.
Applications
- Retail shops and shopping centres
- Warehouses and commercial premises
- Reception areas, foyers and lobbies
- Wide-area indoor or outdoor CCTV coverage
- People counting and queue analysis
- Heat mapping and customer-flow monitoring
- Commercial security systems requiring panoramic video coverage
Standards & Compliance
- RCM EMC compliance to AS/NZS CISPR 32:2015
- CCTV electrical installation work should follow AS/NZS 3000 where applicable
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- One panoramic camera can cover a wide area, potentially reducing the number of cameras, cabling runs and associated installation materials required
- RoHS compliance restricts the use of certain hazardous substances in the product
- IP67 and IK10 protection can support longer service life and reduce premature replacement waste
- PoE operation can simplify cabling and avoid the need for a separate local power supply at the camera
Warranty Information
Hikvision lists DeepinView network cameras in its premium project-oriented product range eligible for a five-year manufacturer warranty when manufactured after 1 March 2022. Confirm product eligibility and regional warranty terms with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
