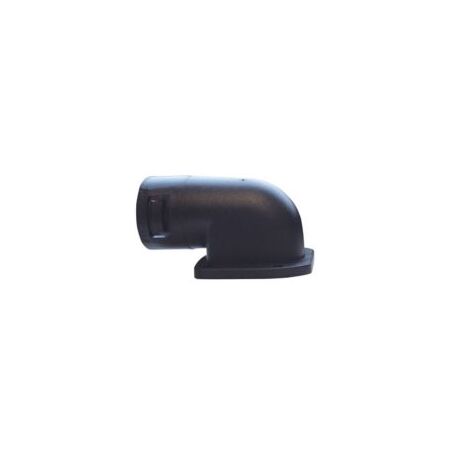

Fixed 90 Degree Flange Elbow 42mm Conduit IP66 Black Adaptaflex

BRAND: CABAC
SKU: AL42/FL/90/BL
$30.60 List price: $40.80
+ −
30 Days Return Electricians Unlock Trade Access
Adaptaflex fixed 90 degree flange elbow features 42mm nominal conduit size, panel mount flange, IP66 rating and nylon 66 body in black. Ideal for panel entries.

Alternatively Known As: 90 Degree Flanged Conduit Fitting, Panel Mount Flange Elbow, Adaptalok FL/90 Elbow

Technical Specifications
  • Nominal Conduit Size: 42 mm
  • Elbow Angle: 90 degrees
  • Material: Polyamide Nylon 66
  • Colour: Black
  • Mounting: Panel-mount flange with four fixing holes
  • Seal: Integral NBR face seal
  • Degree of Protection: IP66 as standard
  • Additional Protection: IP67, IP68 and IP69K with ALS seal
  • Operating Temperature: -50°C to +120°C static; -45°C to +120°C dynamic
  • Fire Performance: Self-extinguishing, UL94 V-2
  • Low Smoke and Halogen Free: Yes
  • Conduit Compatibility: Adaptaflex non-metallic conduit systems, including PA, PI, CP, PR, PADL and PF series
  • Connection Type: Non-threaded snap connection
  • Dimensions (H x L x W): 109mm x 77mm x 85mm
  • Weight: 0.1 kg
Key Features
  • Fixed 90 degree direction for neat conduit routing into panels and bulkheads
  • Panel-mount flange with four fixing holes for secure installation
  • Integral face seal supports liquid-tight panel entry protection
  • IP66 rated as standard
  • High-impact Nylon 66 body for durable cable protection
  • Suitable for nominal 42 mm conduit
  • Black finish for discreet installation in control panels and equipment
  • Self-extinguishing and low-smoke, halogen-free material
  • Can achieve higher ingress protection ratings when used with the appropriate ALS seal
Applications
  • Panel entries for control cabinets and electrical enclosures
  • Bulkhead-mounted flexible conduit connections
  • Industrial machinery cable protection
  • Automation, instrumentation and control equipment
  • Electrical and communications cable routing in demanding environments
Standards & Compliance
  • The product is designed for conduit systems tested to the BS EN 61386-1 and BS EN 61386-23 framework; AS/NZS 61386.1 and AS/NZS 61386.23 should be referenced for Australian and New Zealand installations.
Environmental Benefits
  • Nylon 66 construction provides a durable, long-service-life fitting that can reduce replacement waste
  • Low-smoke, halogen-free material helps reduce hazardous smoke and corrosive gas emissions during fire conditions
  • Lightweight non-metallic construction can reduce transport and handling impacts compared with heavier metallic fittings
Warranty Information

ABB standard terms provide a 12-month warranty against defects in materials and workmanship, subject to the applicable terms of sale and Australian Consumer Law.

Available Now

Available through authorised ADAPTAFLEX distributors in Australia.
