Fixed Ball Point 25mm | M12 Thread | Forged Steel | EN/IEC Compliant by Cabac

BRAND: CABAC
SKU: D-755225
$102.40 List price: $123.90
+

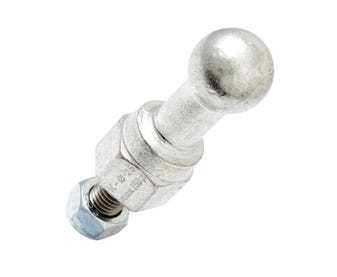

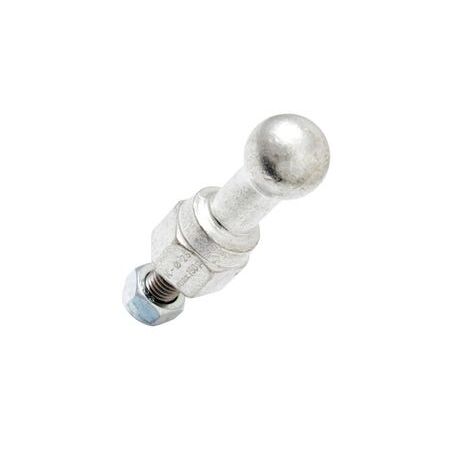

The Cabac Fixed Ball Point 25mm/M12 is a durable and forged portable earthing device attachment point featuring a straight ball joint with threaded shaft and self-locking nut, compliant with EN/IEC 61230 standards.

Product Name/Title: Fixed Ball Point 25mm/M12

Brand: Cabac

SKU: D-755225

Alternatively Known As: Fixed Ball Joint, Portable Earthing Ball Point, Earthing Device Attachment Point

Technical Specifications
  • Ball Diameter: 25mm
  • Thread Size: M12 x 25mm
  • Type: Straight Ball Joint with Threaded Shaft and Nut
  • Material: Forged steel for extra strength
  • Standards: EN/IEC 61230 (DIN VDE 0683-100), DIN 48088-1
  • Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
  • Weight: 0.2 kg
Key Features
  • Fixed ball point with 25mm diameter
  • Straight ball joint with threaded shaft and self-locking nut (M12 x 25mm)
  • Forged for extra strength
  • Complies with Standard EN/IEC 61230 (DIN VDE 0683-100) and based on DIN 48088-1
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with safety standards.
Applications
  • Electrical & Power Connectivity
  • Earthing & Bonding
  • Temporary Portable Earthing
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances safety in electrical earthing systems, reducing risk of electrical faults and environmental hazards.
Warranty Information

Standard manufacturer warranty applies.

Available Now

The Cabac Fixed Ball Point 25mm/M12 is available for immediate purchase, ideal for electrical earthing and bonding applications.
