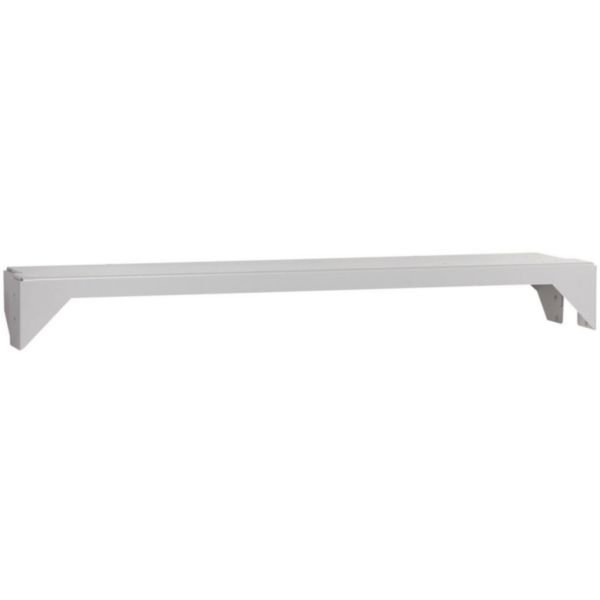

Fixing Plate for DMX³ 6300 3P/4P Circuit Breakers | Metal Construction | IP30 & IK07 Rated | @Each of 1 | by Legrand
The Fixing Plate for DMX³ 6300 3P/4P circuit breakers is designed for robust mounting in XL³ 6300 distribution enclosures. Constructed from durable metal, it supports enclosure widths of 1425 mm and heights of 2200 mm, ensuring compliance with IP30 and IK07 ratings. Ideal for electrical contractors, this plate simplifies the installation of circuit breakers in switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fixing Plate for DMX³ 6300 3P/4P Circuit Breakers | Metal Construction | IP30 & IK07 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 021140
Alternatively Known As: DMX3 6300 fixing plate, XL3 6300 mounting plate, circuit breaker fixing plate, switchboard mounting plate
Technical Specifications
- Material: Metal
- Suitable for enclosure building width: 1425 mm
- Suitable for enclosure building height: 2200 mm
- Compatible with DMX³ 6300 3P/4P draw-out circuit breakers
- Compatible with XL³ 6300 distribution enclosures
- Enclosure ratings: IP30, IK07
- Dimensions (H x L x W): 300mm x 50mm x 400mm
- Weight: 5 kg
Key Features
- Designed specifically for DMX³ 6300 3P/4P draw-out circuit breakers
- Compatible with XL³ 6300 distribution enclosures
- Constructed from durable metal for robust mounting
- Supports enclosure building width of 1425 mm and height of 2200 mm
- IP30 and IK07 rated enclosure compatibility
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting of circuit breakers.
Applications
- Mounting DMX³ 6300 3P/4P draw-out circuit breakers in XL³ 6300 distribution enclosures
- Suitable for electrical switchboards and power cabinet assembly
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces need for frequent replacements, minimizing waste
- Supports modular electrical systems that can be upgraded without full enclosure replacement
Warranty Information
Standard Legrand warranty applies; typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for electrical contractors and facilities managing XL³ 6300 switchboard installations.
