Flameproof 4P Plug 300A | 660V to 3300V | IP55 Rated | Quick Release by Ausproof
Flameproof 4P plug with a 300A current rating and voltage range of 660V to 3300V—ideal for mining and hazardous environments. Built for safety and durability, featuring quick release and stainless steel construction for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

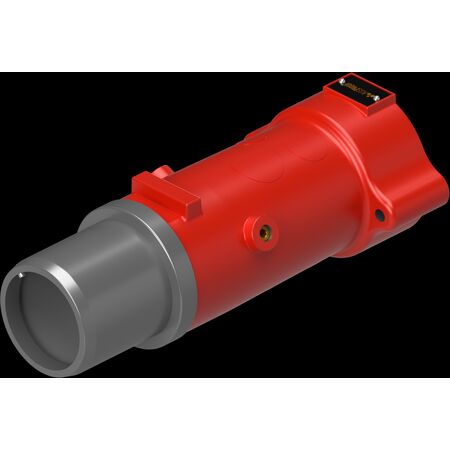

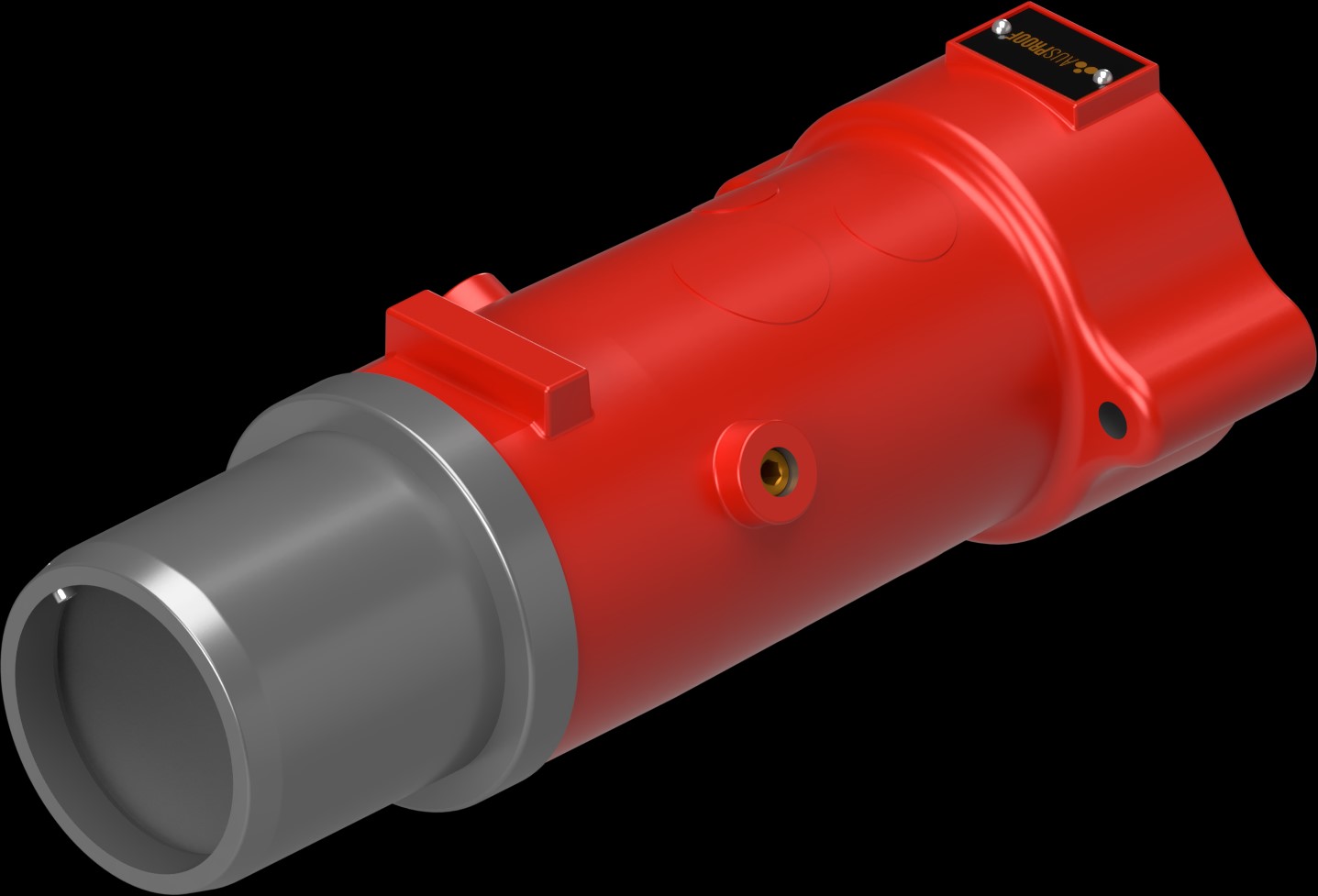

Product Name/Title: PL 3300V 300A 4P Plug Red FLP Removable Body
Brand: Ausproof
SKU: RS1977
Alternatively Known As: Flameproof Plug, Ex Certified Plug, Mining Plug, Industrial 4 Pin Plug, High Voltage Plug
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Weight: 9.0 KG
- Dimensions (H x L x W): 300mm x 250mm x 200mm
- Weight: 9.0 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified electricians trained in hazardous area equipment to ensure compliance with safety standards and proper flameproof assembly.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces waste through long product life.
- Flameproof repairability reduces the need for full replacements, minimizing material waste.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 3300V 300A 4P Plug Red FLP Removable Body is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring flameproof electrical connections.
