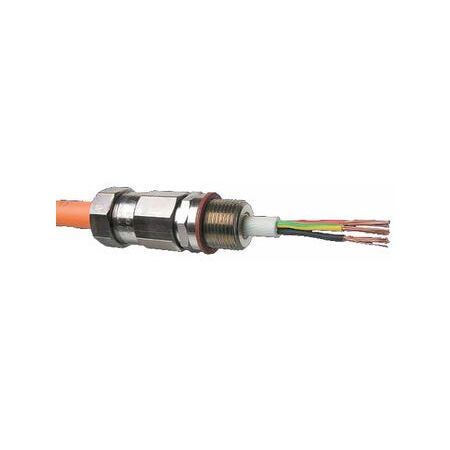

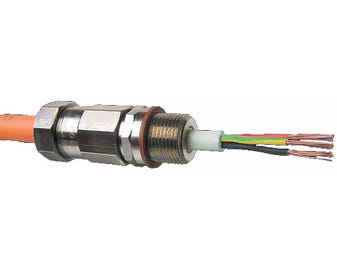

Flameproof Cable Gland M20 | Nickel-Plated Brass | IP66/68 Seals | Hazardous Area Use by Cabac
The Cabac GLAND NICOTE SWA Flameproof M20 cable gland offers robust protection for steel wired armoured cables in hazardous environments, featuring neoprene seals resistant to oil, chemicals, and flame with IP66/68 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND NICOTE SWA FLAMEPROOF M20 OD 11.0-13.0
Brand: Cabac
SKU: FLWN202
Alternatively Known As: Flameproof Cable Gland M20, SWA Cable Gland, Hazardous Area Cable Gland, Nickel-plated Brass Cable Gland
Technical Specifications
- Material: Nickel-plated brass
- Seals: Neoprene, resistant to oil, chemicals, and flame
- Ingress Protection: IP66/68 (30m)
- Approvals: ANZEx 11.2001x, IECEx SIM 11.0002X
- Standards: IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1
- Locknuts: Not included; recommend using LNBxxN series
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Flameproof cable gland for steel wired armoured cables
- Equipped with neoprene seals resistant to oil, chemicals, and flame
- Supplied with IP66/68 gaskets for mounting thread installation
- Suitable for indoor and outdoor use in hazardous areas
- Nickel-plated brass material for durability
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced in hazardous area electrical equipment to ensure compliance and safety.
Applications
- Hazardous areas, indoor and outdoor use
- Steel wired armoured (SWA) cable protection
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Seals resistant to chemicals and flame enhance safety and reduce environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac GLAND NICOTE SWA Flameproof M20 cable gland is available for immediate purchase, ideal for hazardous area cable management and protection.
