Flameproof Cable Gland M32 | IP66/68 Protection | Neoprene Seals | Nickel-Plated Brass by Cabac

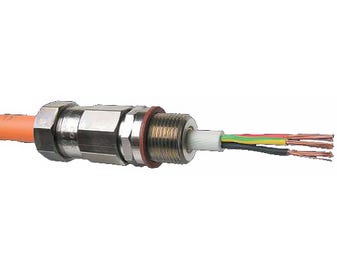

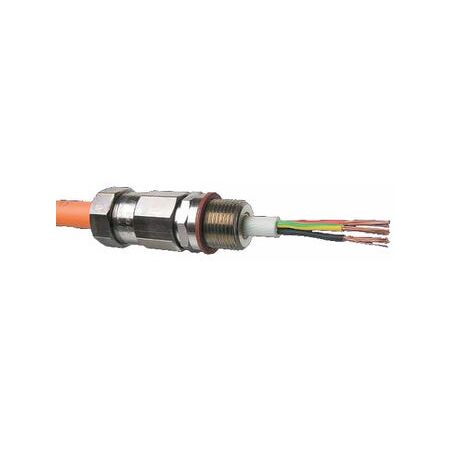

The Cabac GLAND NICOTE SWA Flameproof Cable Gland M32 OD 25.6-30.0 is designed for steel wired armoured cables, featuring neoprene seals resistant to oil, chemicals, and flame, with IP66/68 protection for safe use in hazardous indoor and outdoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND NICOTE SWA FLAMEPROOF M32 OD 25.6-30.0
Brand: Cabac
SKU: FLWN324
Alternatively Known As: Flameproof Cable Gland, SWA Cable Gland, Nickel-plated Brass Cable Gland, Hazardous Area Cable Gland
Technical Specifications
- Material: Nickel-plated brass
- Seals: Neoprene, resistant to oil, chemicals, and flame
- Ingress Protection: IP66/68 (30m)
- Approvals: ANZEx 11.2001x, IECEx SIM 11.0002X
- Standards: IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1
- Locknuts: Not included; recommend using the LNBxxN series
- Dimensions (H x L x W): 40mm x 70mm x 40mm
- Weight: 0.2 kg
Key Features
- Flameproof cable gland for steel wired armoured cables
- Equipped with neoprene seals resistant to oil, chemicals, and flame
- Supplied with IP66/68 gaskets for mounting thread installation
- Neoprene seals on the cable sheath
- Suitable for indoor and outdoor use in hazardous areas
- Nickel-plated brass material for durability
Professional Installation Requirements
- Professional installation by a qualified electrician or technician experienced in hazardous area equipment is required to ensure compliance and safety.
Applications
- Hazardous areas, indoor and outdoor use
- Steel wired armoured (SWA) cable installations requiring flameproof protection
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Seals resistant to chemicals and flame enhance safety and reduce environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac GLAND NICOTE SWA Flameproof Cable Gland M32 OD 25.6-30.0 is available for immediate purchase, ideal for hazardous area cable installations requiring flameproof protection.
