Flameproof Cable Gland M32 | Nickel-Plated Brass | IP66/68 Protection | Neoprene Seals by Cabac

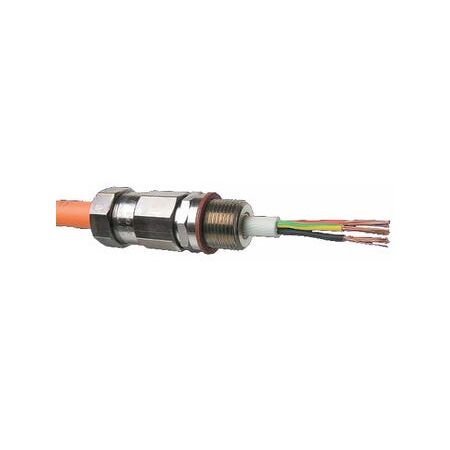

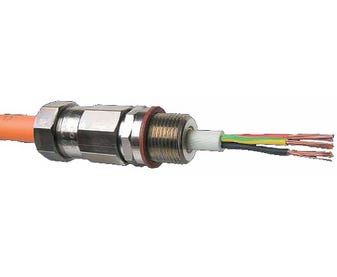

The Cabac GLAND NICOTE SWA Flameproof Cable Gland M32 OD 25.6-30.0 is designed for steel wired armoured cables in hazardous areas, featuring neoprene seals resistant to oil, chemicals, and flame, with IP66/68 protection for indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND NICOTE SWA FLAMEPROOF M32 OD 25.6-30.0
Brand: Cabac
SKU: FLWN323
Alternatively Known As: Flameproof Cable Gland, SWA Cable Gland, Hazardous Area Cable Gland, Nickel-plated Brass Cable Gland
Technical Specifications
- Material: Nickel-plated brass
- Seals: Neoprene, resistant to oil, chemicals, and flame
- Ingress Protection: IP66/68 (30m)
- Approvals: ANZEx 11.2001x, IECEx SIM 11.0002X
- Standards: IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1
- Locknuts: Not included; recommend using LNBxxN series
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.2 kg
Key Features
- Flameproof cable gland for steel wired armoured cables
- Equipped with neoprene seals resistant to oil, chemicals, and flame
- Supplied with IP66/68 gaskets for mounting thread installation
- Neoprene seals on the cable sheath for enhanced protection
- Suitable for indoor and outdoor hazardous area applications
- Nickel-plated brass material for durability and corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced in hazardous area electrical equipment to ensure compliance with safety standards.
Applications
- Hazardous areas, indoor and outdoor use
- Steel wired armoured (SWA) cable installations requiring flameproof protection
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Seals resistant to chemicals and flame enhance safety and reduce environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac GLAND NICOTE SWA Flameproof Cable Gland M32 OD 25.6-30.0 is available for immediate purchase, ideal for hazardous area cable installations requiring flameproof protection.
