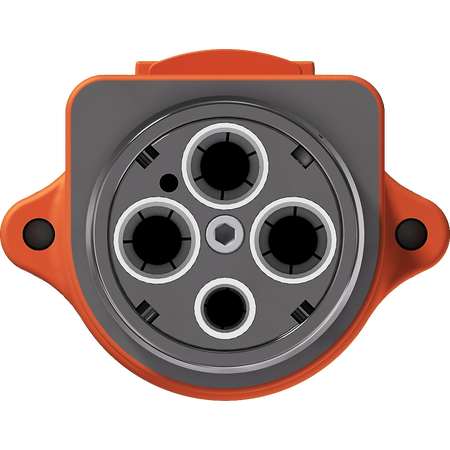

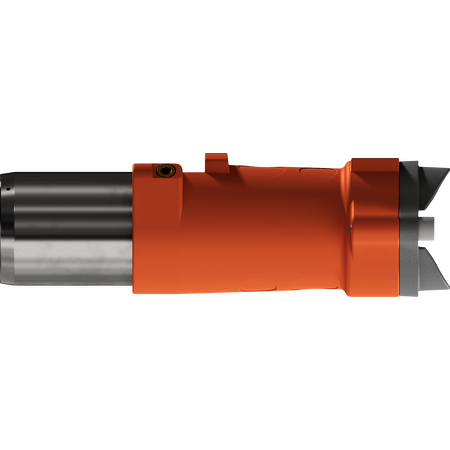

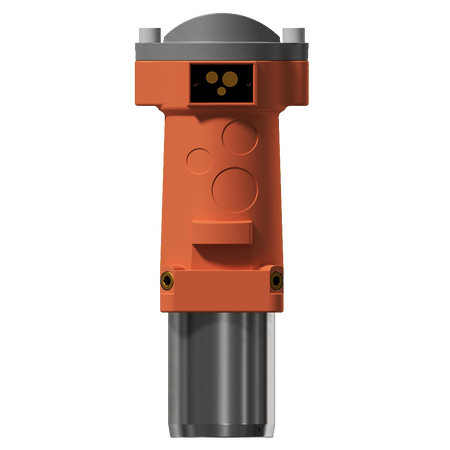

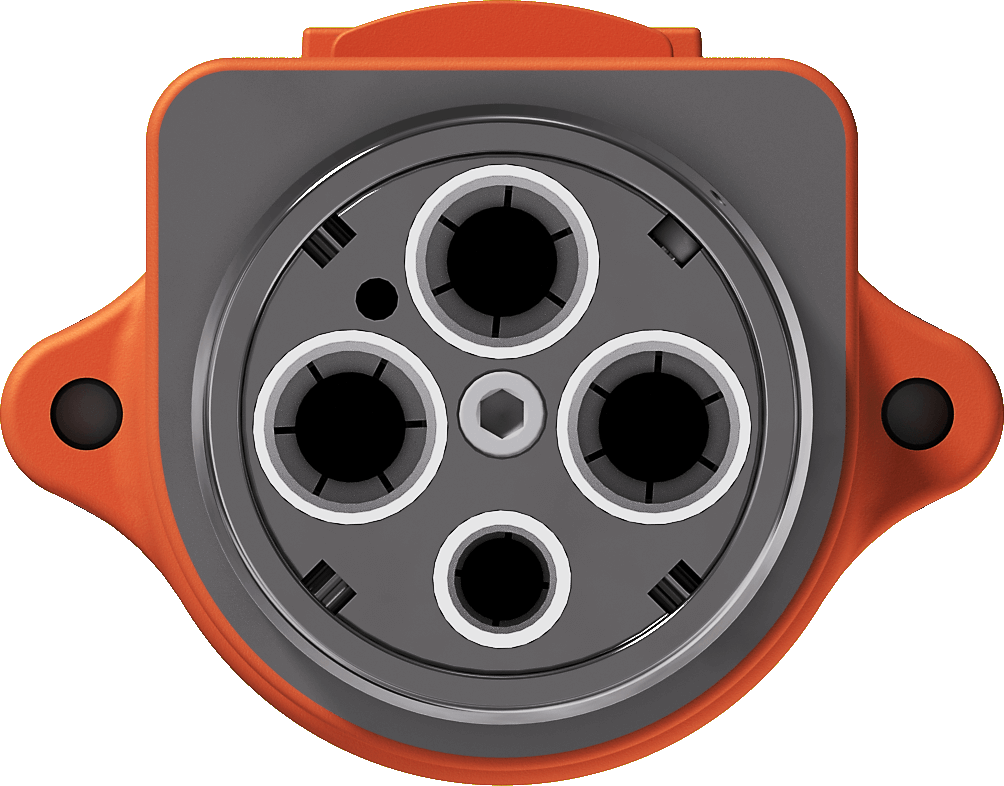

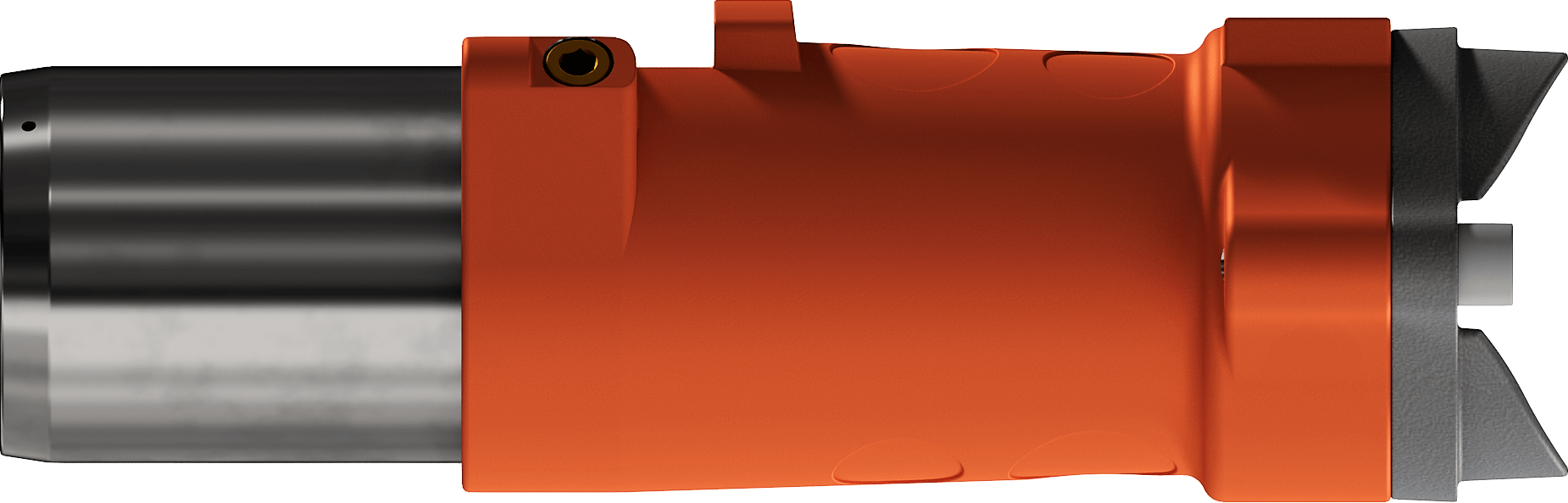

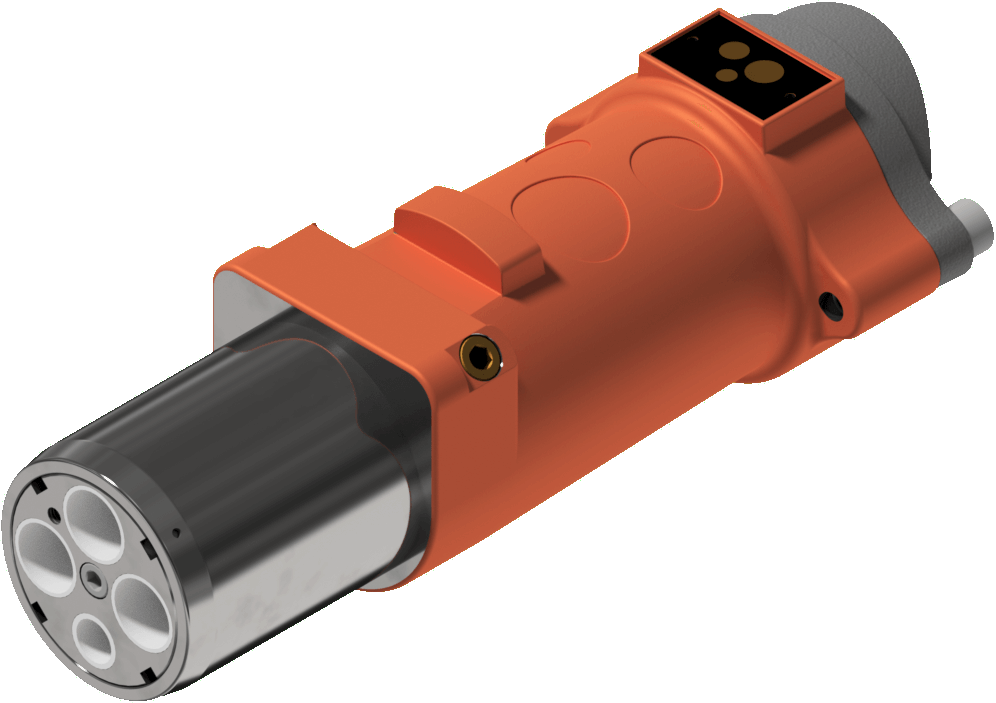

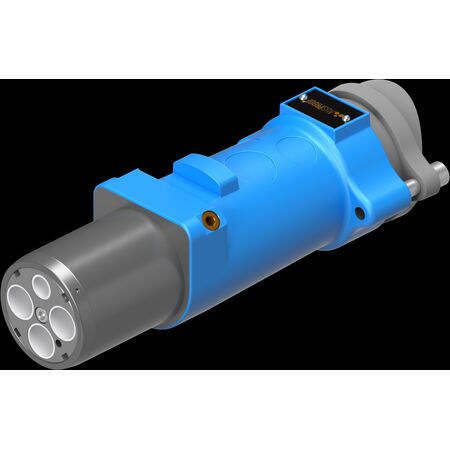

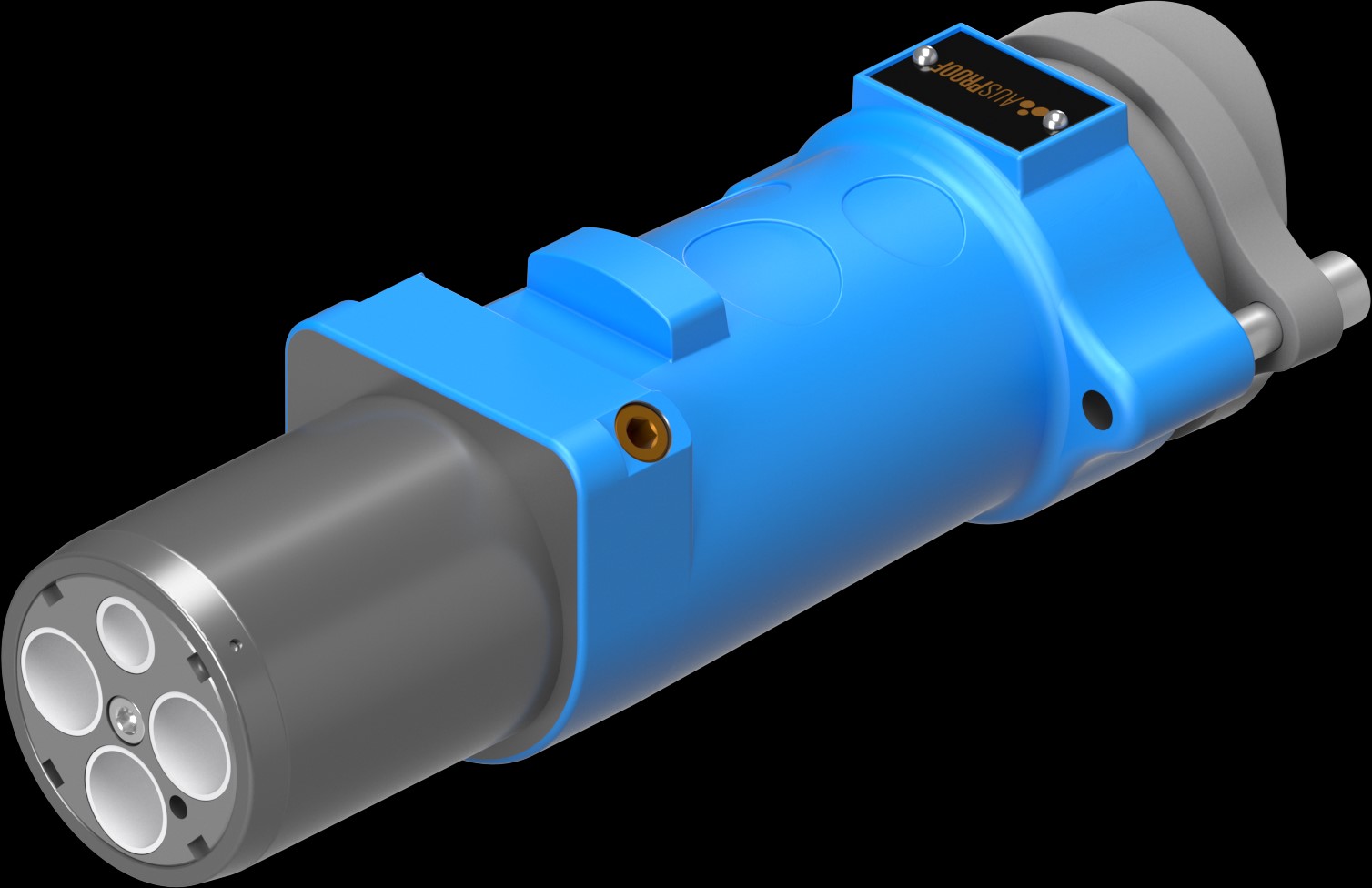

PS 1100V 150A 4P Plug Blue FLP Removable Body

Flameproof Electrical Plug 150A 1100V | IP55 Rated | Quick Release & Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS1972

$207.60 List price: $257.90

+ −

30 Days Return Delivery Options

Flameproof electrical plug with 150A current rating and 1100V voltage—ideal for mining and hazardous environments. Built for safety with IP55 ingress protection and quick release features, ensuring reliable performance in tough conditions.

Description

Product Name/Title: PS 1100V 150A 4P Plug Blue FLP Removable Body

Brand: Ausproof

SKU: RS1972

Alternatively Known As: 150A Flameproof Plug, 1100V Ex Plug, PS Range Plug, Flameproof Electrical Plug

Technical Specifications

Voltage: 660 to 1,100V
Current: 150A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 12.5kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 4.0kA for 0.2 seconds
AC HV Withstand (Phase): 4.2kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: 150A
Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 250mm x 150mm x 150mm
Weight: 4.1 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover

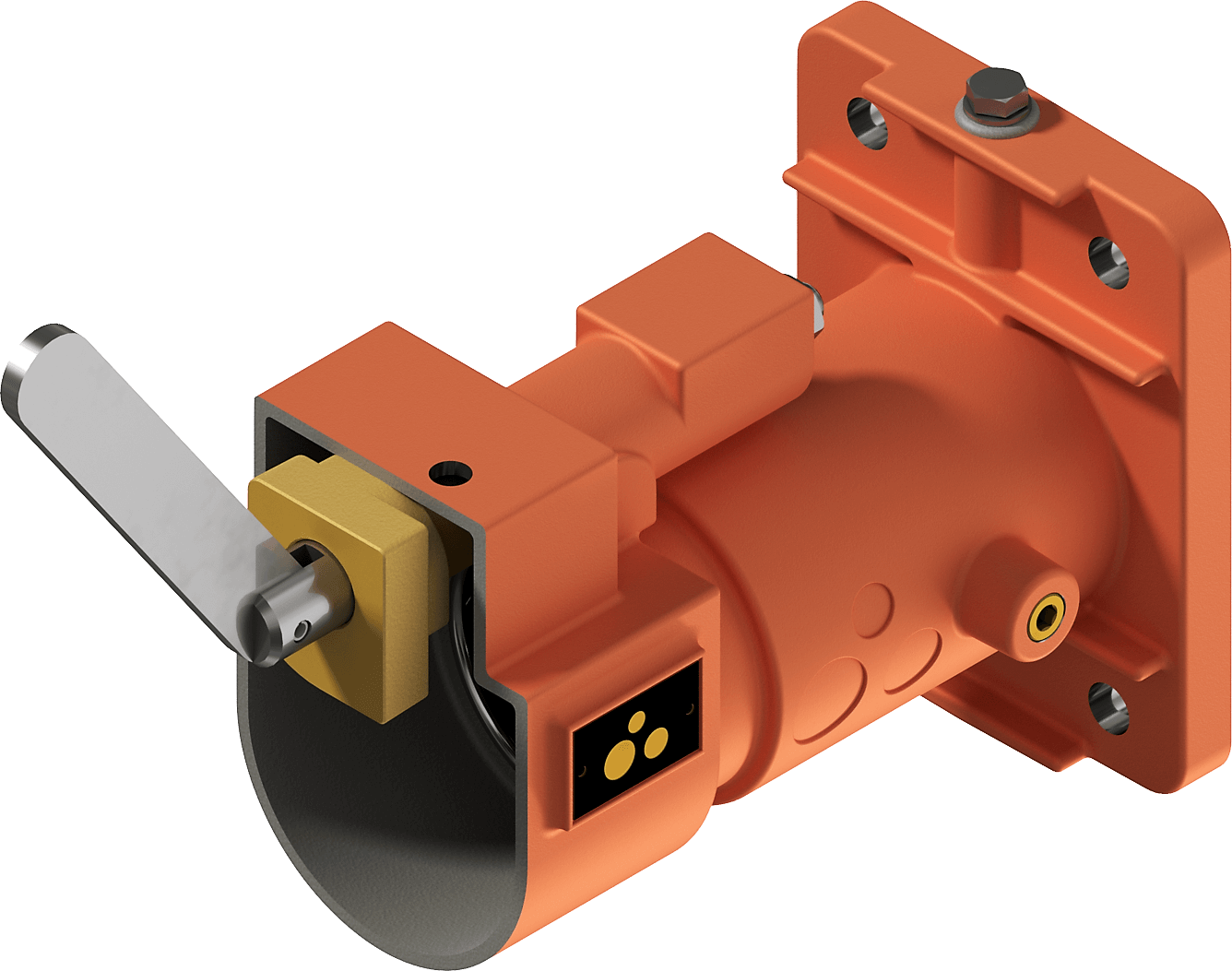

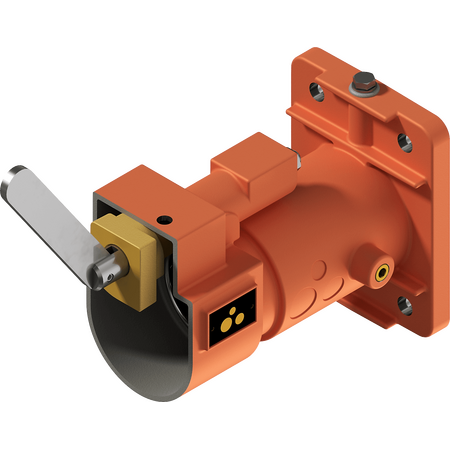

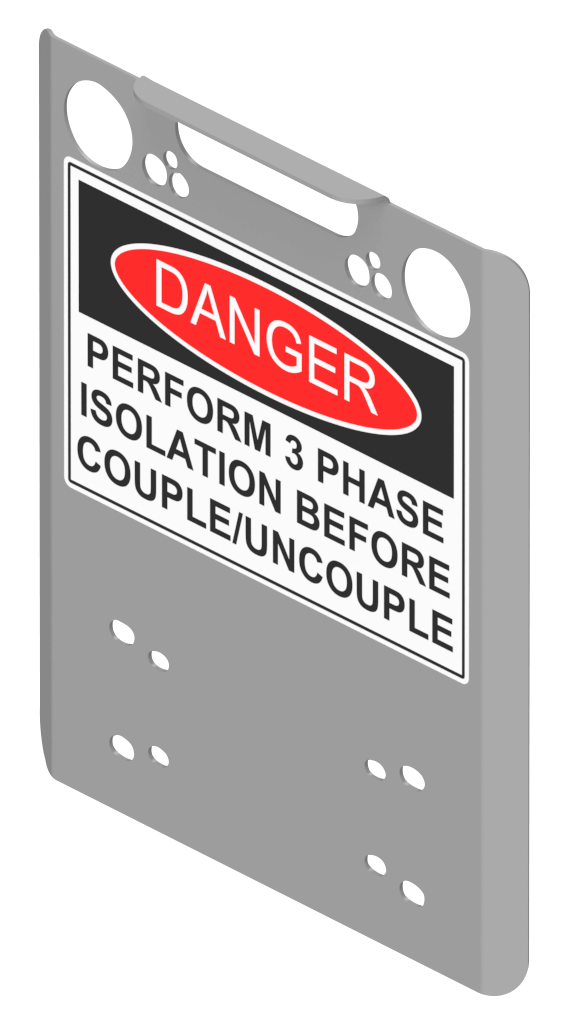

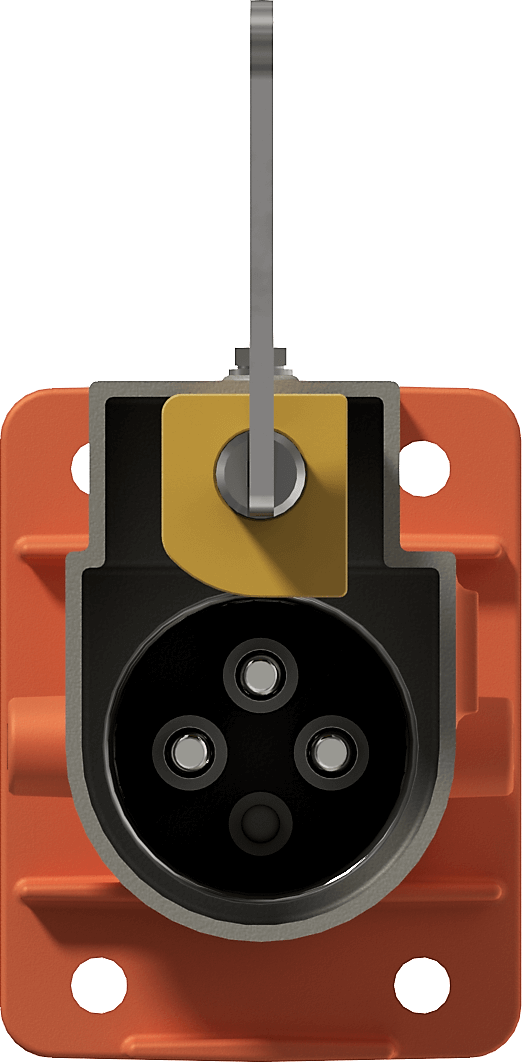

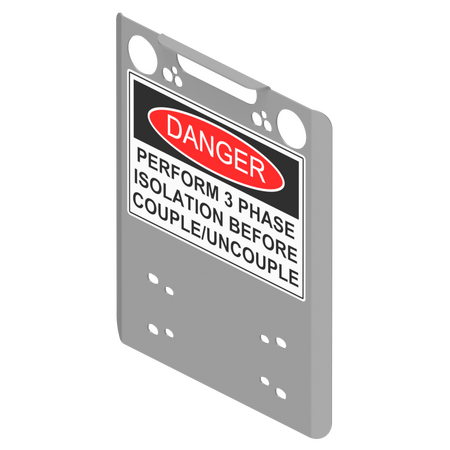

Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof design enhances safety, reducing risk of environmental hazards.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PS 1100V 150A 4P Plug Blue FLP Removable Body is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
