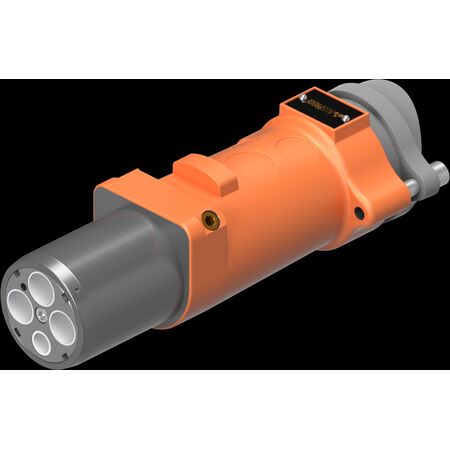

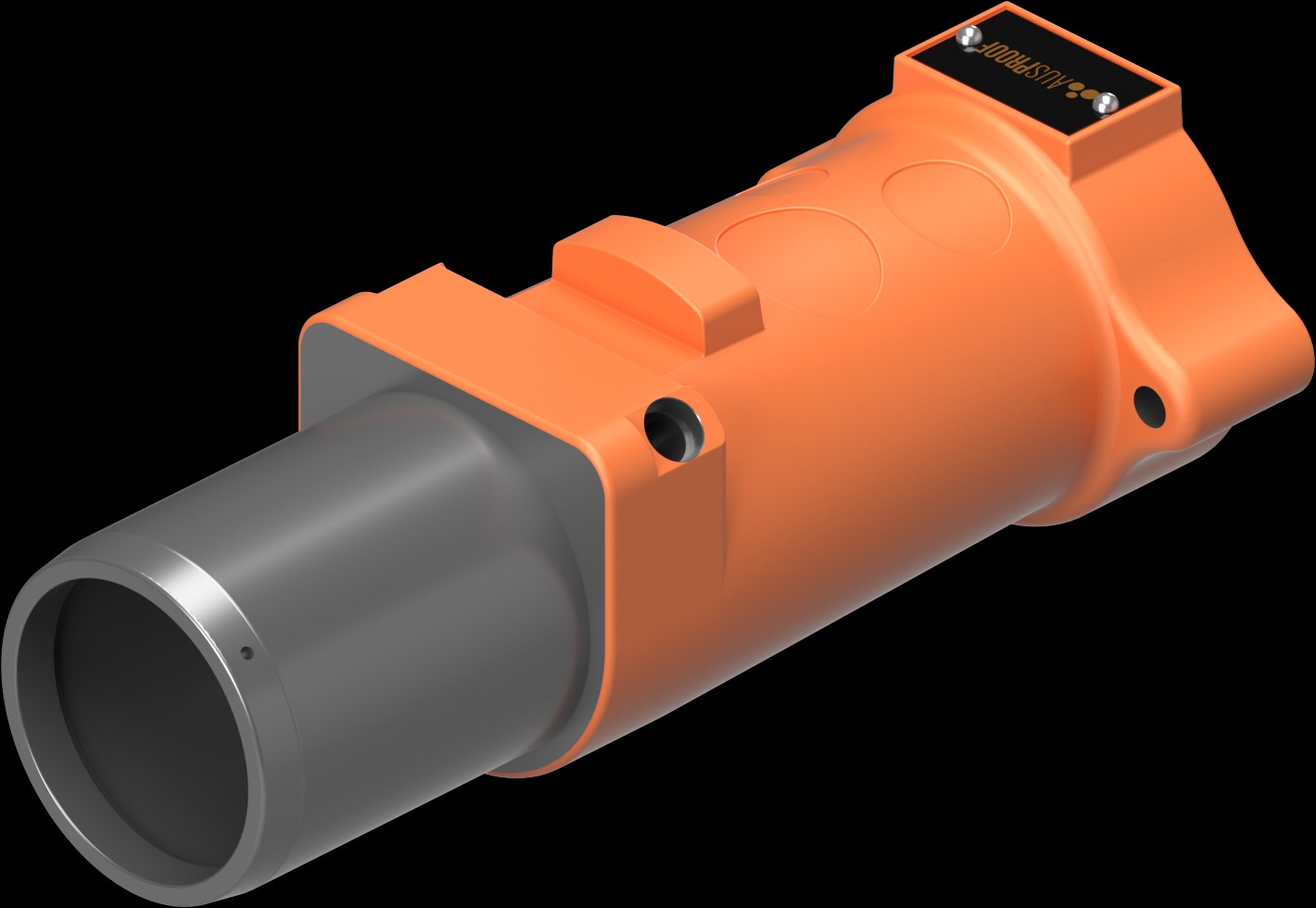

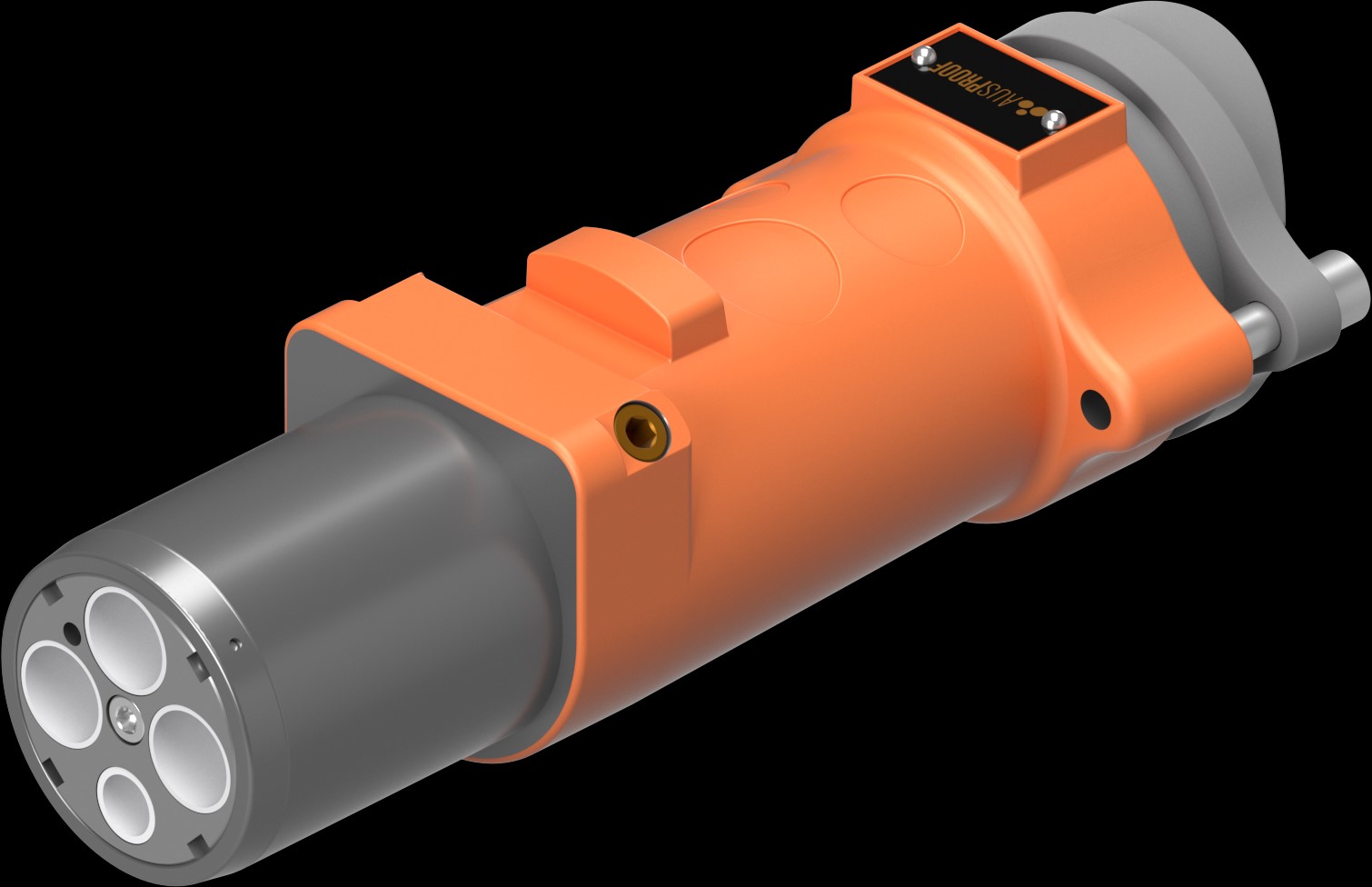

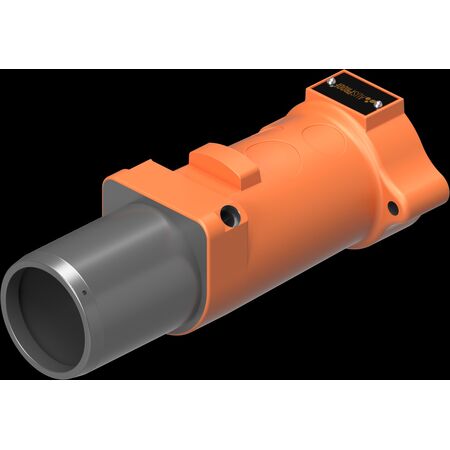

Flameproof Industrial Plug 150A 4P | IP55 Rated | Quick Release & Stainless Steel by Ausproof

BRAND: Ausproof
SKU: RS2222
$856.60 List price: $1,063.90
+ −
30 Days Return Delivery Options
The Flameproof Industrial Plug offers 150A current capacity and IP55 ingress protection—ideal for mining and hazardous environments. Built for safety and durability, it features quick release and stainless steel construction for reliable performance.

Product Name/Title: PS 660V 150A 4P Plug (270) 25-C 30-35-G (275.1)

Brand: Ausproof

SKU: RS2222

Alternatively Known As: 150A 4 Pole Plug, Flameproof Industrial Plug, Ex-certified Electrical Plug, Mining Plug 660V

Technical Specifications
  • Voltage: 660 to 1,100V
  • Current: 150A
  • Material: Stainless Steel
  • Ingress Protection: IP55
  • Through Fault Current (Phase): 2 Tests of 12.5kA for 0.2 seconds
  • Through Fault Current (Earth): 2 Tests of 4.0kA for 0.2 seconds
  • AC HV Withstand (Phase): 4.2kV for one minute
  • AC HV Withstand (Pilot): 1.0kV for one minute
  • Temperature Rise: 150A
  • Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
  • Dimensions (H x L x W): 200mm x 250mm x 150mm
  • Weight: 4.1 kg
Key Features
  • Quick Release
  • Single piece contacts to prevent hot joints
  • Easy termination
  • Easy flameproof repair
  • Full solid earth connectivity throughout product
  • Full phase to phase segregation with earth
  • Lightest Ex product on the market
  • Silicone Protection Cover
  • Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
  • Professional installation by qualified electricians trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
  • Mining
  • Tunnelling
  • Commercial applications
  • Group 1 hazardous environments
Standards & Compliance
  • AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
  • Durable stainless steel construction reduces need for frequent replacements.
  • Flameproof design enhances safety, reducing risk of environmental hazards.
Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PS 660V 150A 4P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
