Home/Products without category/Flameproof Industrial Plug | 3300V | 425A Current Rating | IP55 Ingress Protection by Ausproof

Trade Discount 19%

PL 3300V 425A 4P Plug (180) 120-C 70-75-G (245.3)

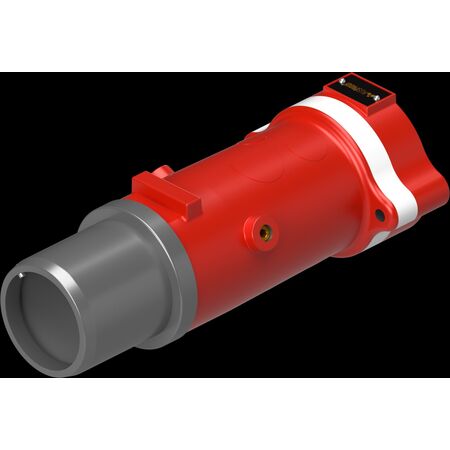

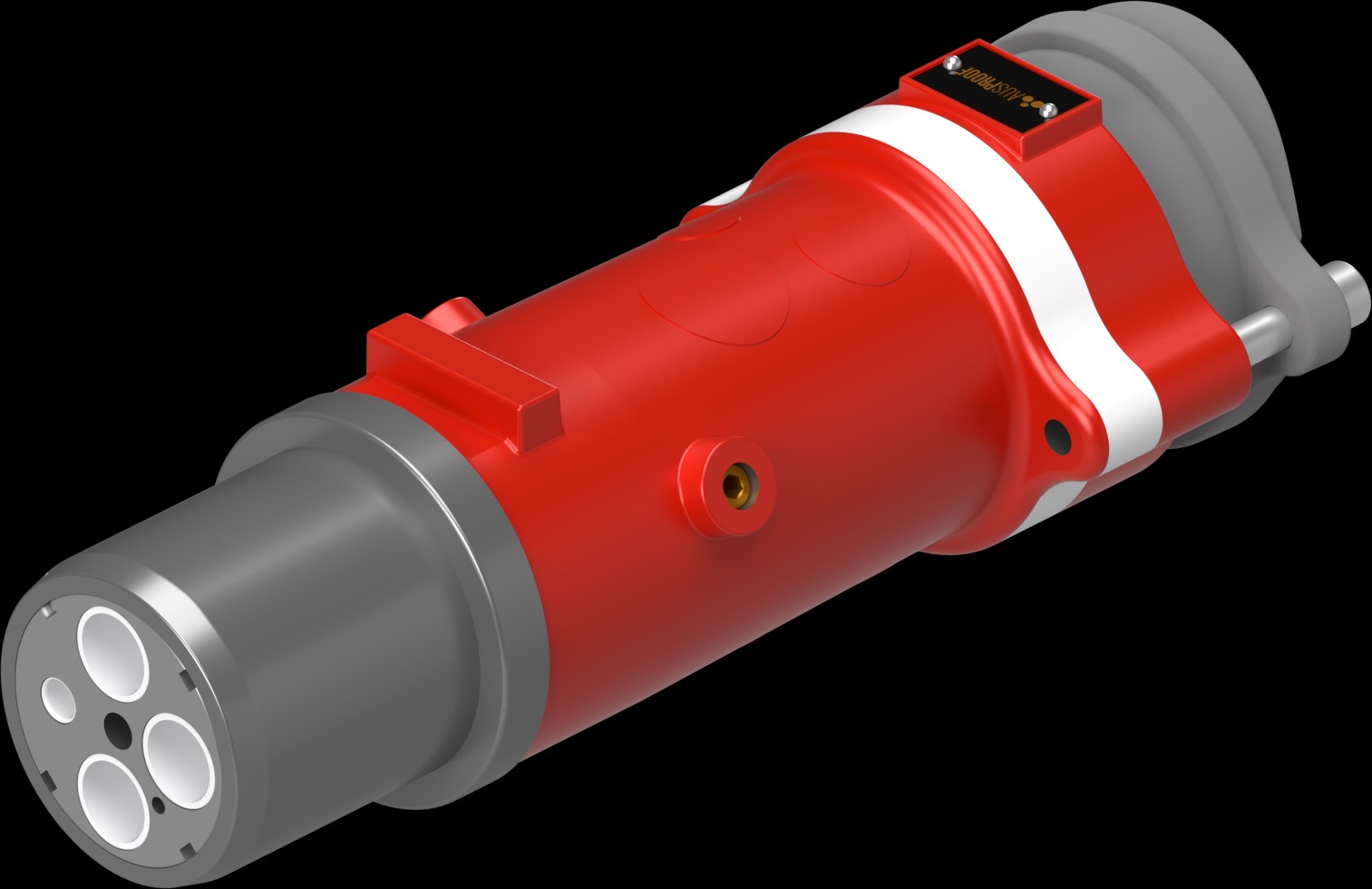

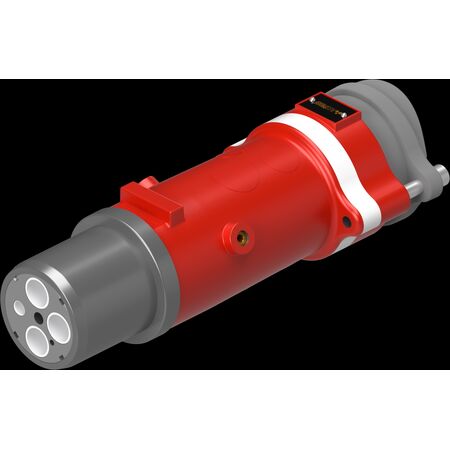

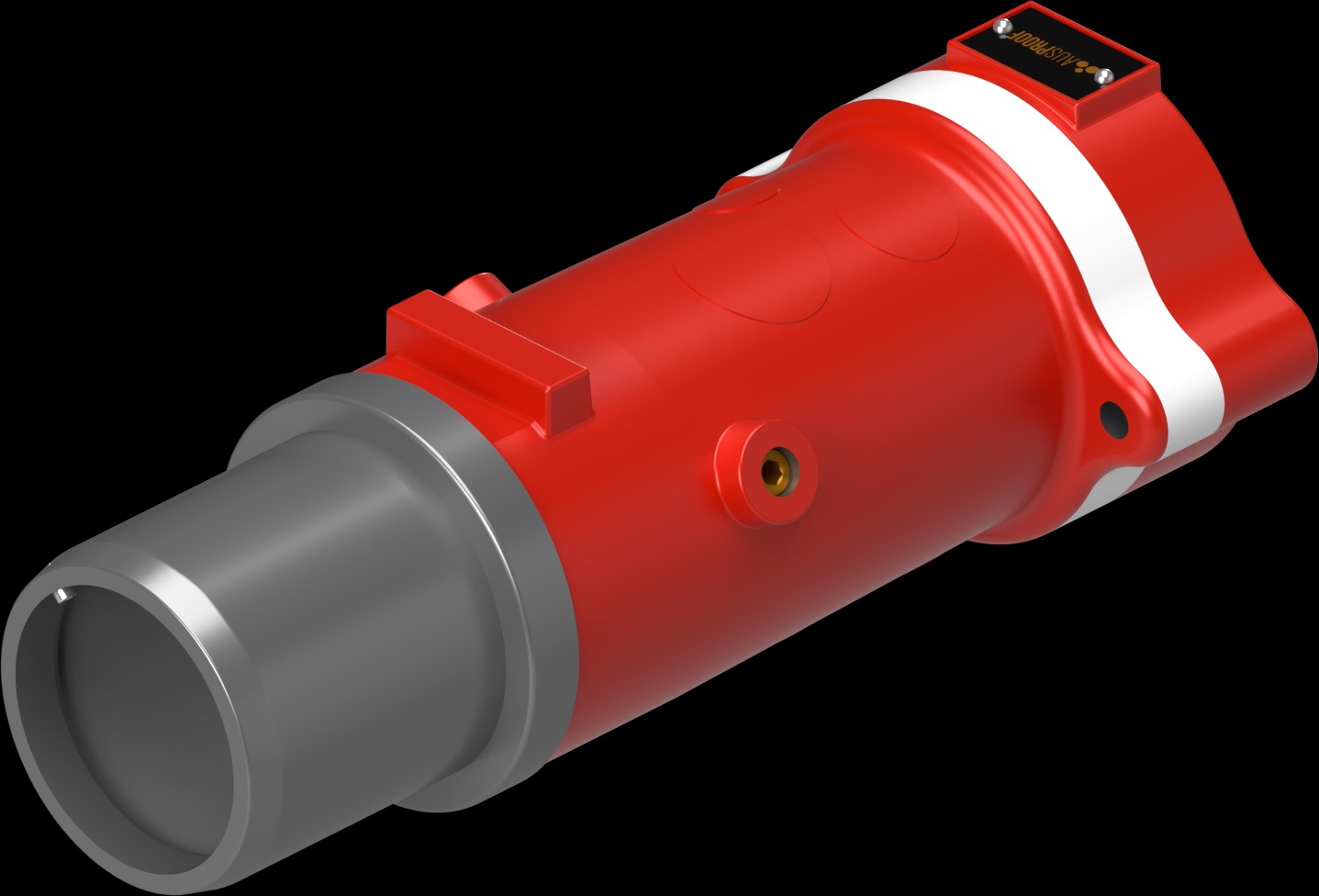

Flameproof Industrial Plug | 3300V | 425A Current Rating | IP55 Ingress Protection by Ausproof

BRAND: Ausproof

SKU: RS2200

$1,482.30 List price: $1,841.00

+ −

30 Days Return Delivery Options

The Ausproof PL 3300V 425A 4P Plug is designed for hazardous environments, featuring a 3300V voltage range and 425A current rating. Ideal for mining and tunnelling operations, it offers quick release and durable stainless steel construction for enhanced safety and reliability.

Description

Product Name/Title: PL 3300V 425A 4P Plug (180) 120-C 70-75-G (245.3)

Brand: Ausproof

SKU: RS2200

Alternatively Known As: Ex-rated 4 Pin Plug, Flameproof Industrial Plug, Mining Electrical Plug, Hazardous Area Plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 9.0 kg
Dimensions (H x L x W): 245mm x 75mm x 180mm
Weight: 9.0 kg

Key Features

Quick Release mechanism
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance with safety standards.

Applications

Mining and tunnelling operations
Commercial applications in Group 1 hazardous environments
Industrial low voltage electrical connections requiring flameproof plugs

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements
Flameproof design enhances safety, reducing risk of environmental hazards
Easy on-site repair reduces waste and resource consumption

Warranty Information

Warranty details available upon request from Ausproof, typically covering manufacturing defects.

Available Now

The Ausproof PL 3300V 425A 4P Plug is available for immediate purchase, ideal for mining, tunnelling, and commercial hazardous environment applications.
