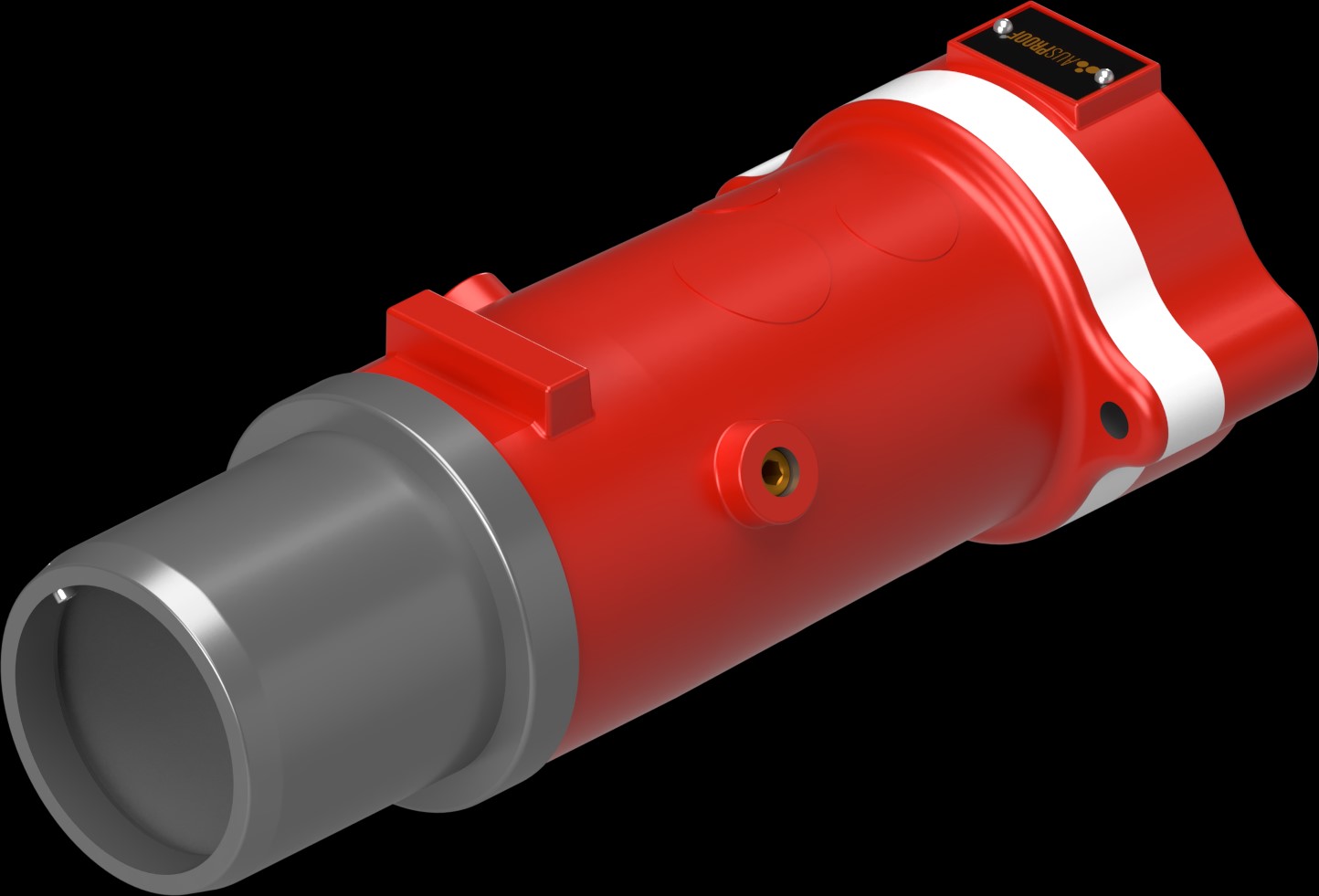

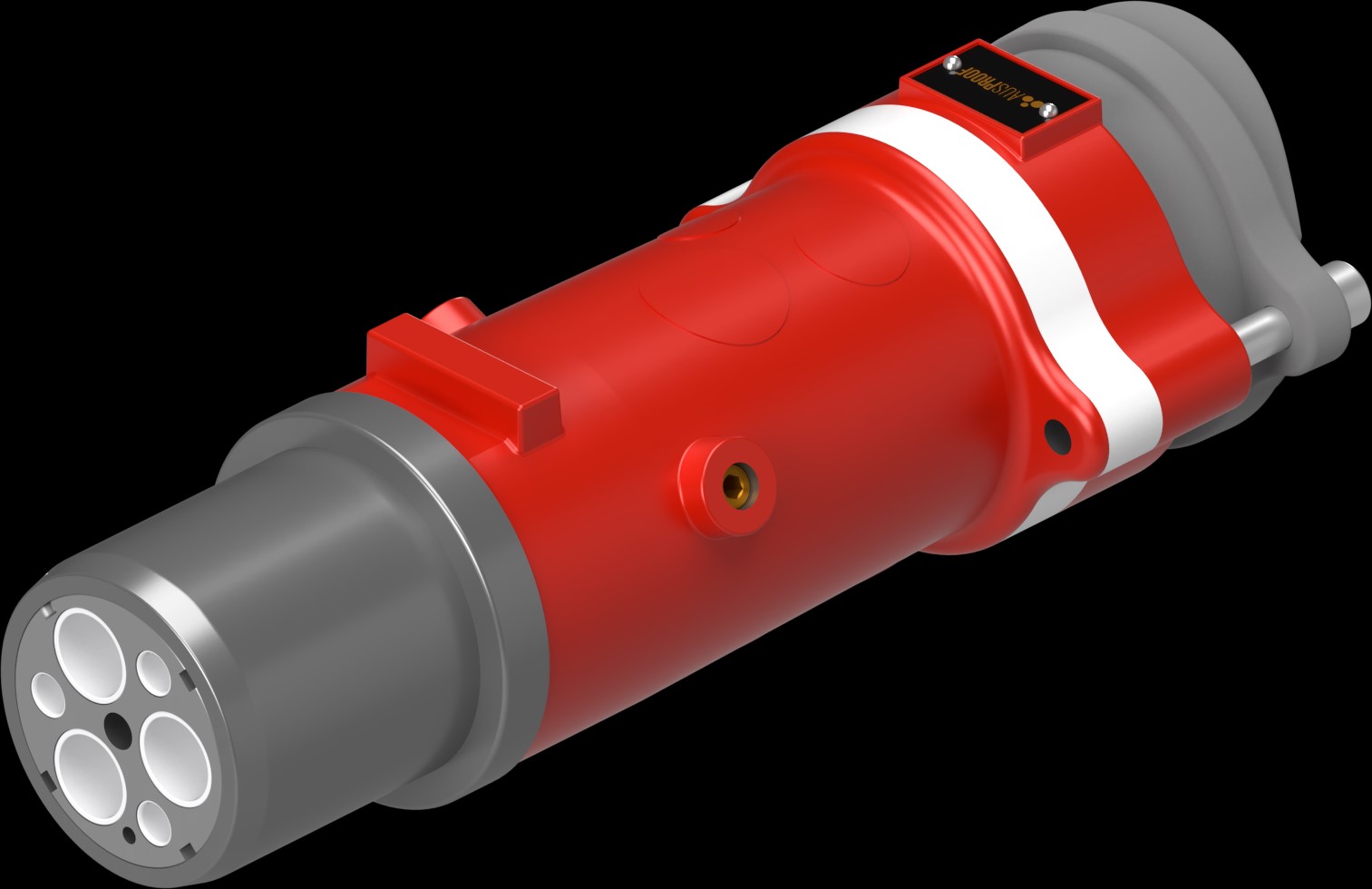

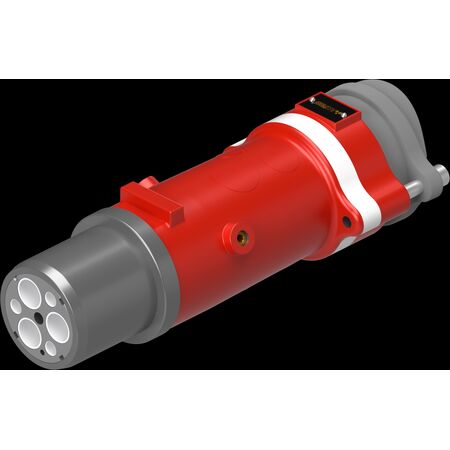

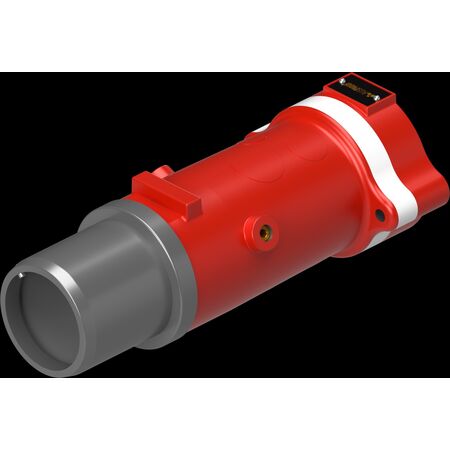

Flameproof Industrial Plug 425A 6P | IP55 Ingress Protection | Quick Release Mechanism | Stainless Steel by Ausproof
The Ausproof PL 3300V 425A 6P Plug is designed for mining and commercial applications, featuring a robust IP55 rating and quick release mechanism for ease of use. Built for hazardous environments, this stainless steel plug ensures reliable power connections with flameproof capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 3300V 425A 6P Plug (180) 120-C 65-70-G (241.3)
Brand: Ausproof
SKU: RS1580
Alternatively Known As: Ex Certified 425A 6 Pin Plug, Flameproof Industrial Plug, Mining Power Plug, Heavy Duty Stainless Steel Plug
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 241mm x 180mm x 180mm
- Weight: 9.0 kg
Key Features
- Quick Release mechanism for ease of use
- Single piece contacts to prevent hot joints
- Easy termination and flameproof repair
- Full solid earth connectivity throughout the product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover included
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance and safety.
Applications
- Mining and tunnelling operations
- Commercial applications in Group 1 hazardous environments
- Industrial low voltage power connections requiring flameproof equipment
Standards & Compliance
- Complies with AS/NZS 1299 for electrical equipment in hazardous areas
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof repairability minimizes waste by allowing on-site body casting replacement
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 3300V 425A 6P Plug is available for immediate purchase, ideal for mining, tunnelling, and commercial hazardous environment applications.
