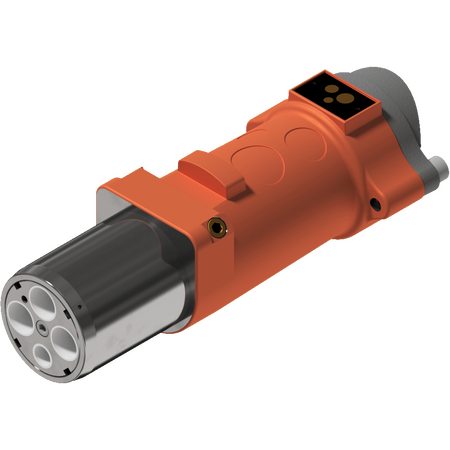

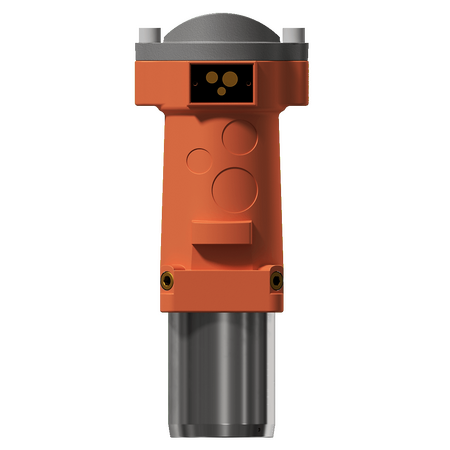

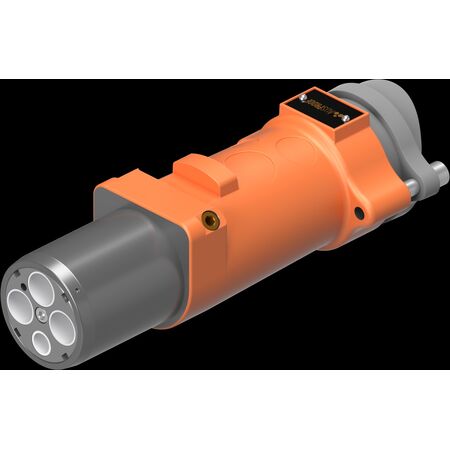

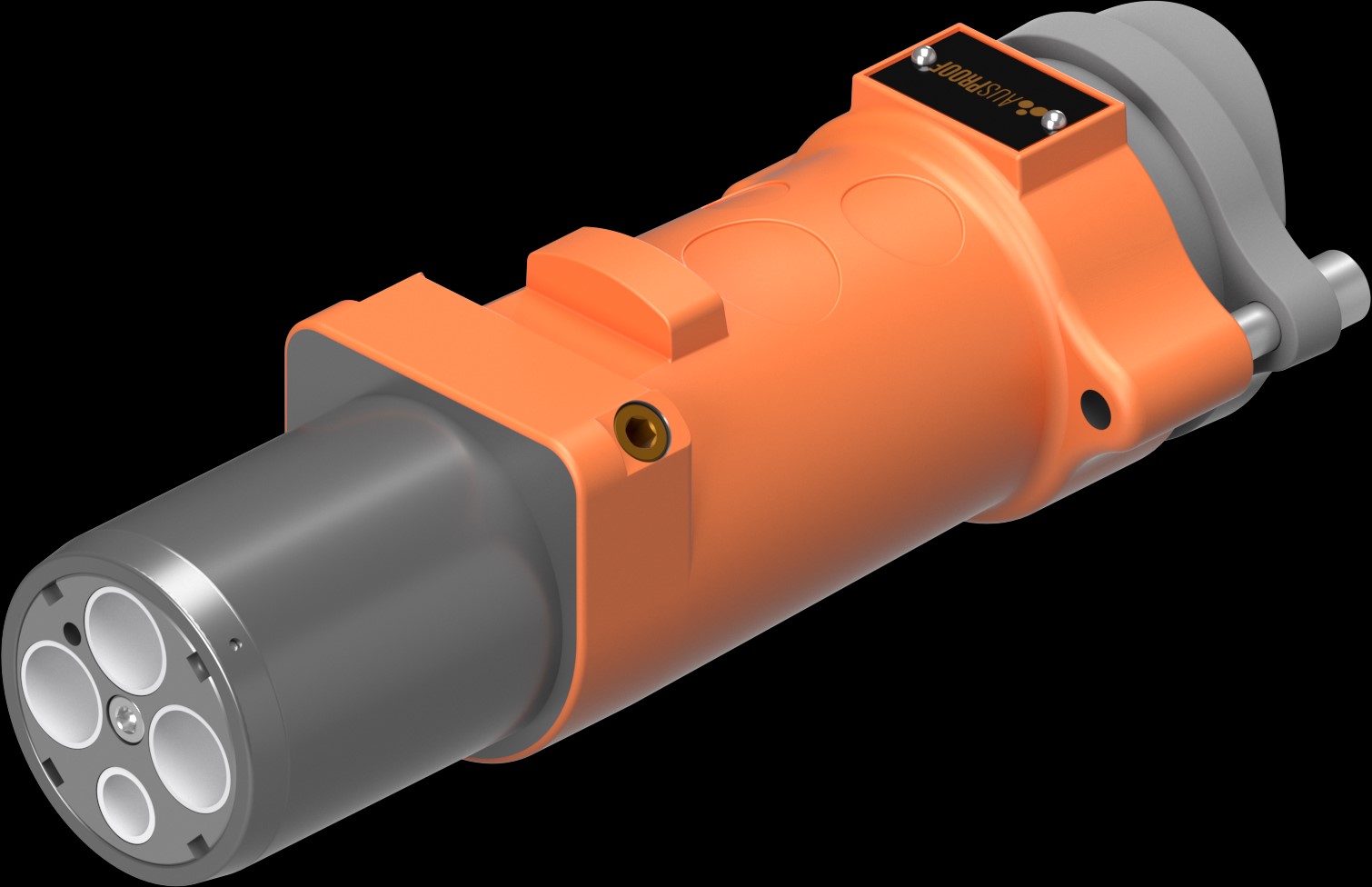

PS 660V 150A 4P Plug Orange FLP Removable Body

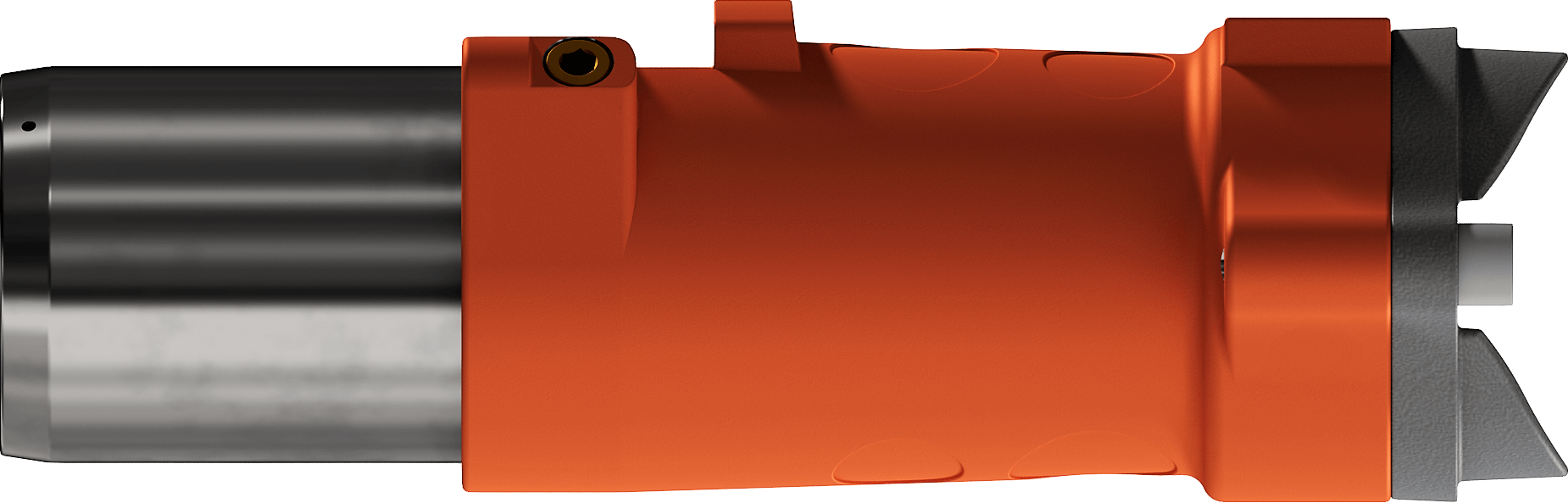

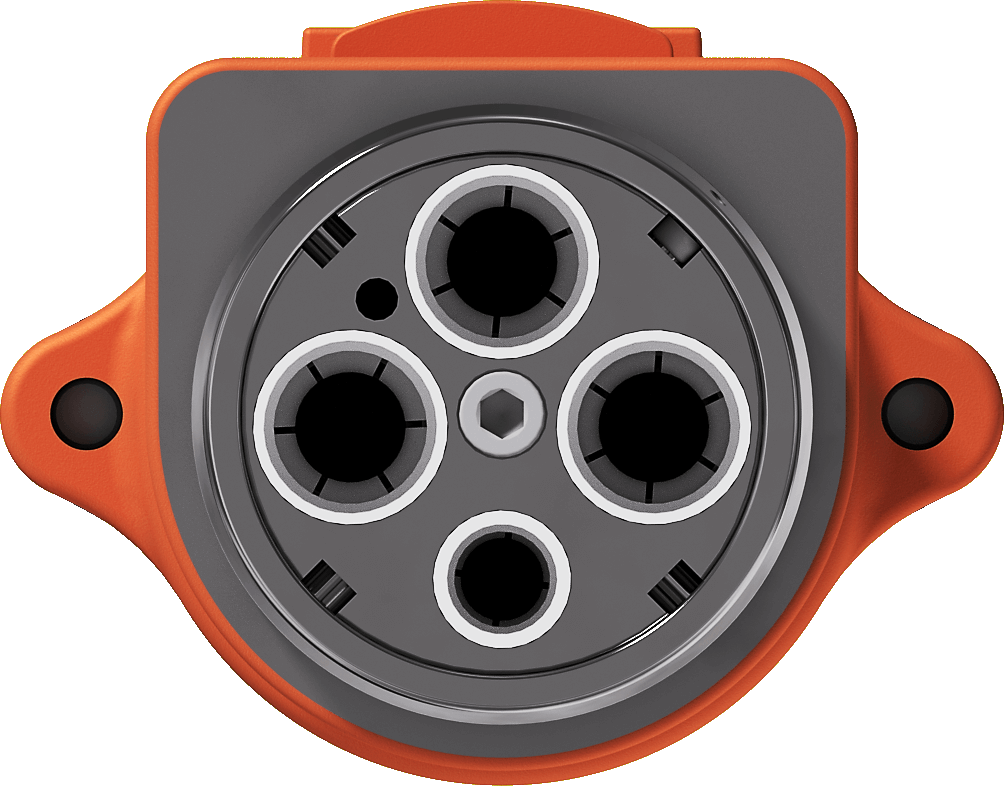

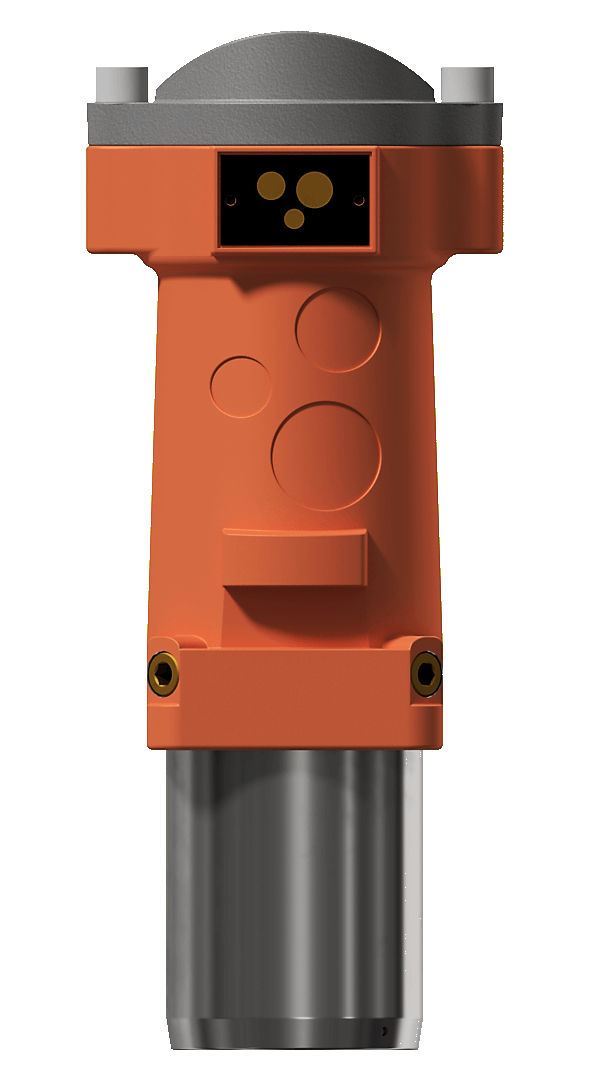

Flameproof Plug 150A 660V | IP55 Rated | Quick Release & Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS1969

$207.60 List price: $257.90

+ −

30 Days Return Delivery Options

Flameproof plug rated for 150A and 660V, featuring IP55 ingress protection and quick release design—ideal for mining and hazardous environments. Built for safety and durability, with stainless steel construction and easy termination for efficient installation.

Description

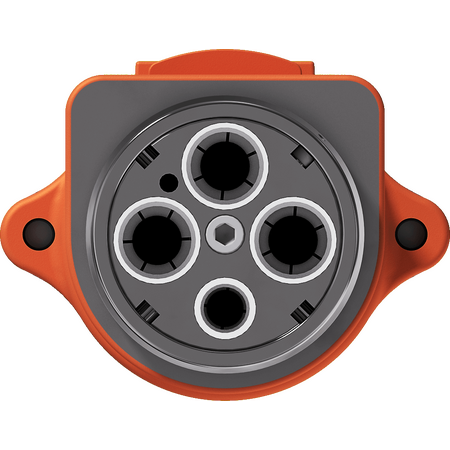

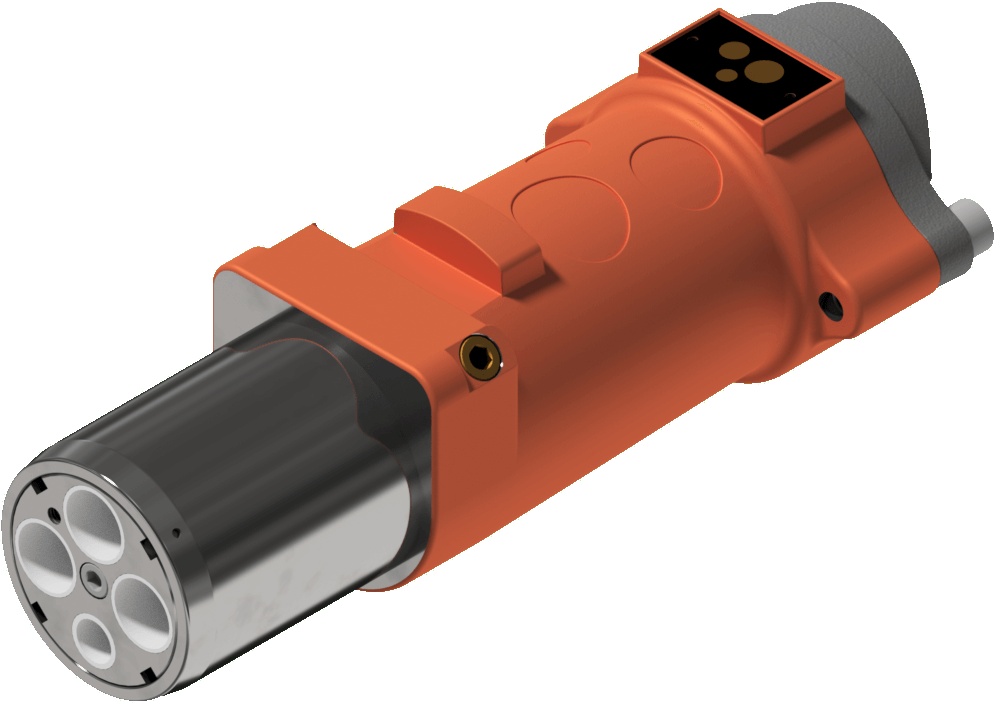

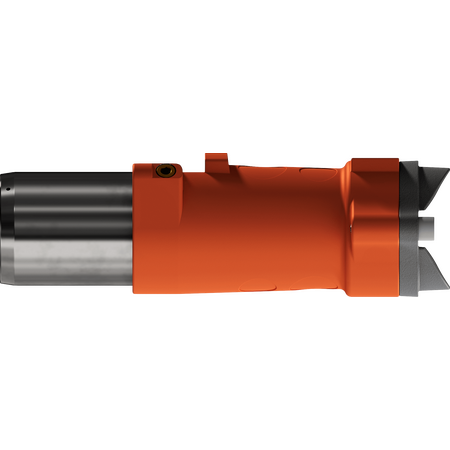

Product Name/Title: PS 660V 150A 4P Plug Orange FLP Removable Body

Brand: Ausproof

SKU: RS1969

Alternatively Known As: Flameproof Plug 150A, Ex Certified Industrial Plug, Hazardous Area Plug 660V, Removable Body Plug

Technical Specifications

Voltage: 660 to 1,100V
Current: 150A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 12.5kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 4.0kA for 0.2 seconds
AC HV Withstand (Phase): 4.2kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: 150A
Dimensions (H x L x W): 150mm x 250mm x 200mm
Weight: 4.1 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover

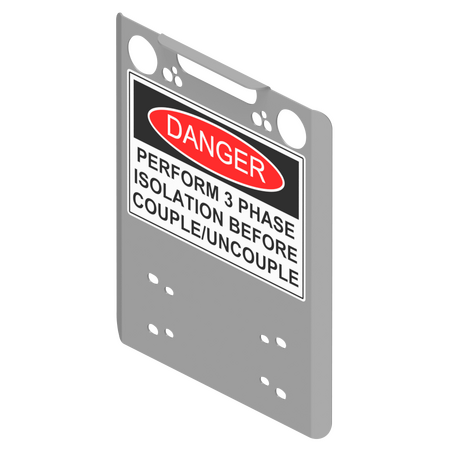

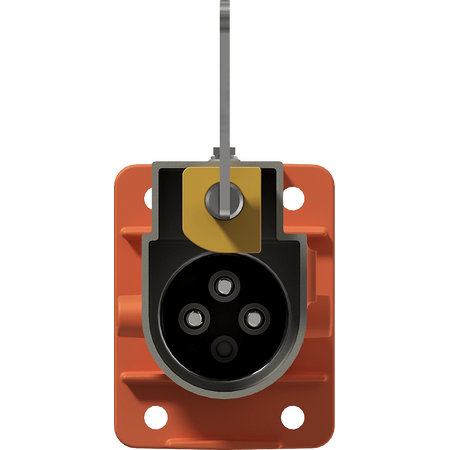

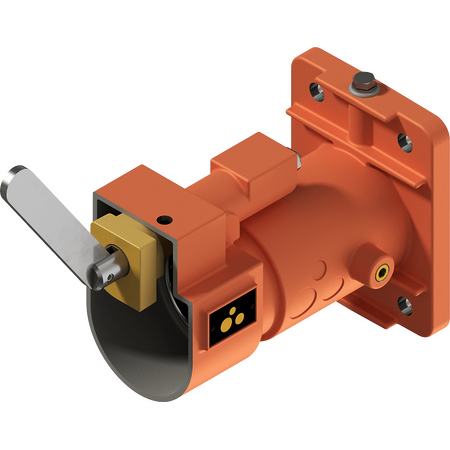

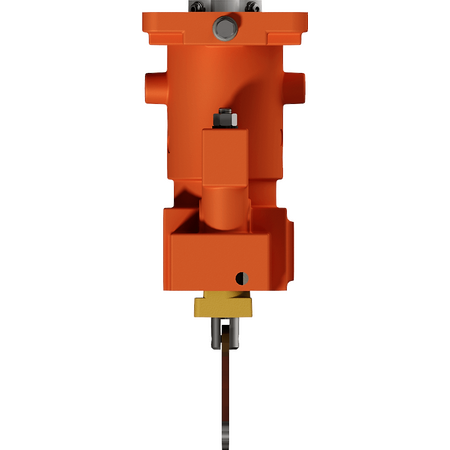

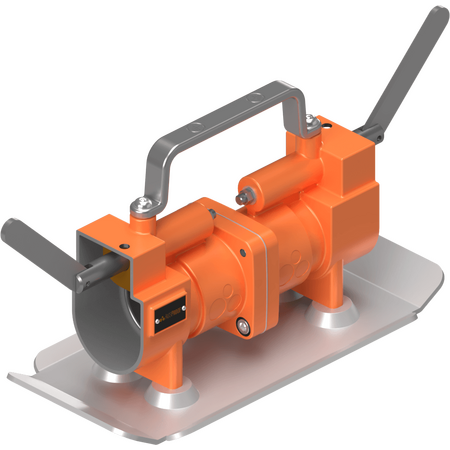

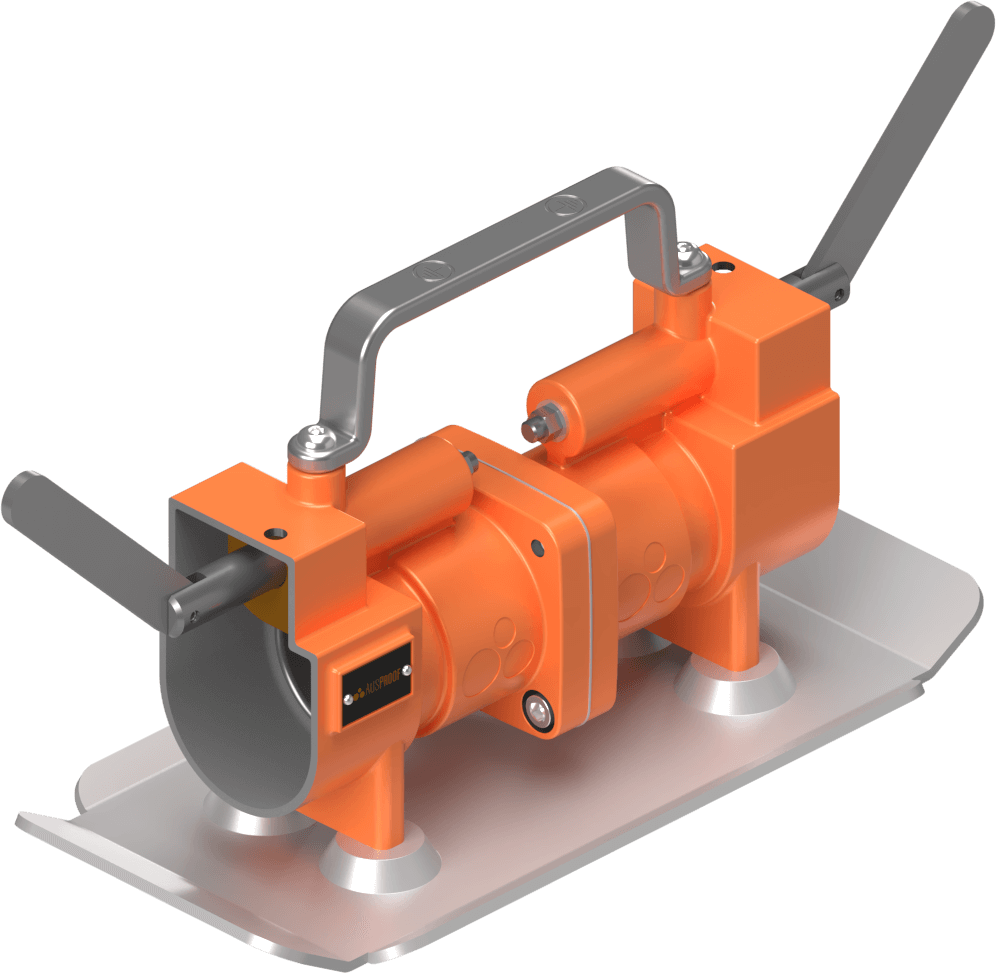

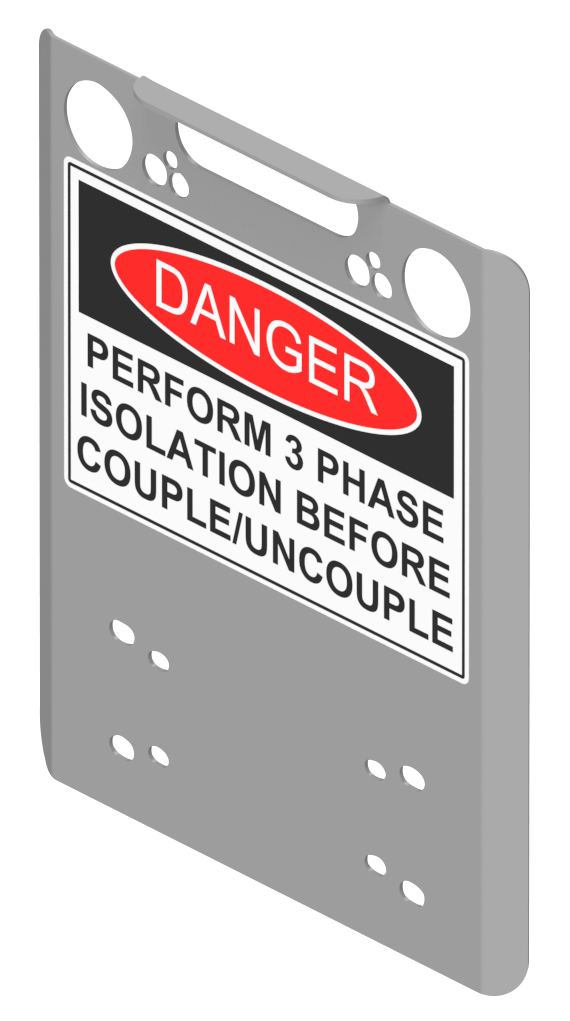

Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with hazardous area electrical equipment to ensure compliance and safety.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof design enhances safety, reducing risk of environmental hazards.

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PS 660V 150A 4P Plug Orange FLP Removable Body is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
