Flameproof Plug 425A 4P | IP55 Ingress Protection | Quick Release & Stainless Steel by Ausproof
Flameproof plug rated for 425A with IP55 ingress protection—ideal for mining and hazardous environments. Built for durability with quick release features and stainless steel construction, ensuring reliable performance in tough conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

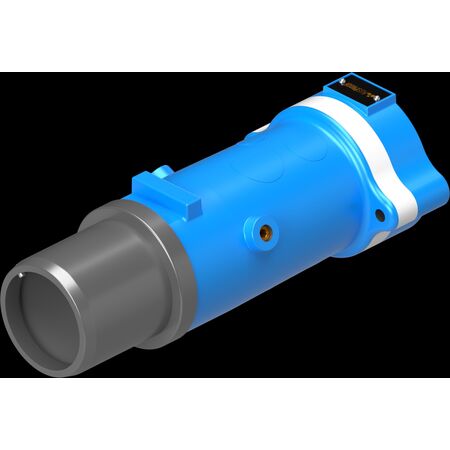

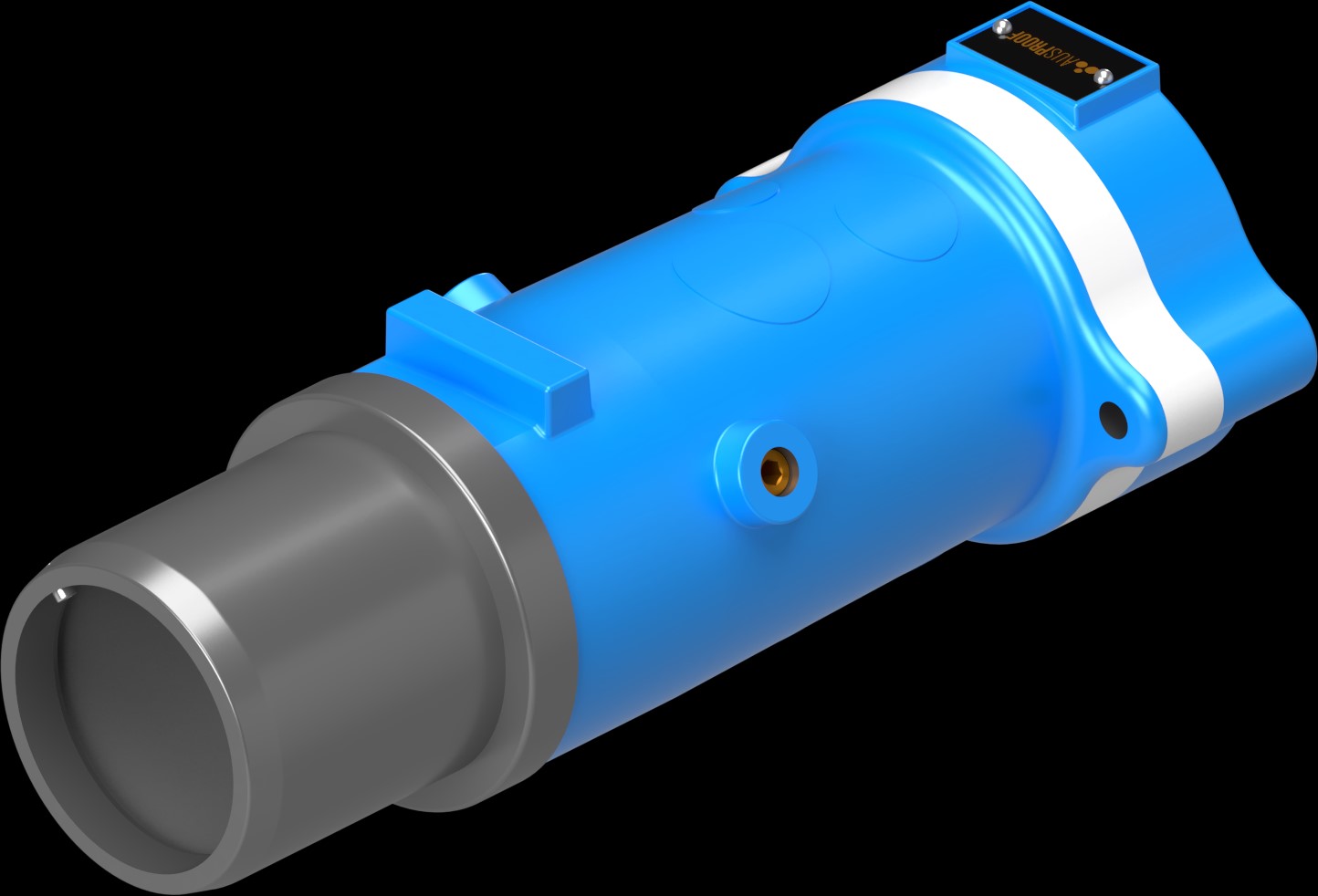

Product Name/Title: PL 1100V 425A 4P Plug Blue wW FLP Removable Body
Brand: Ausproof
SKU: RS1974
Alternatively Known As: Flameproof Plug, Ex Certified Plug, Mining Plug, Industrial Flameproof Connector
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Weight: 9.0 kg
- Dimensions (H x L x W): 250mm x 150mm x 150mm
- Weight: 9.0 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces waste through long product life.
- Flameproof repairable design minimizes replacement waste.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 1100V 425A 4P Plug Blue with Flameproof Removable Body is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial environments.
