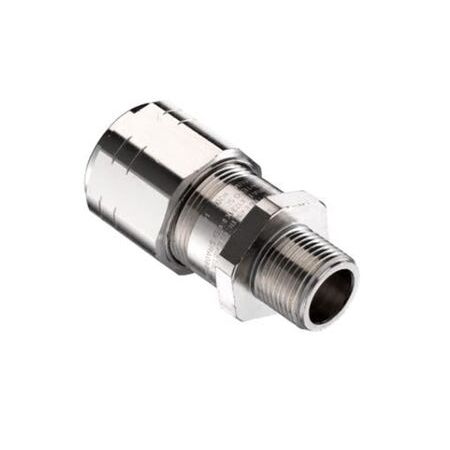

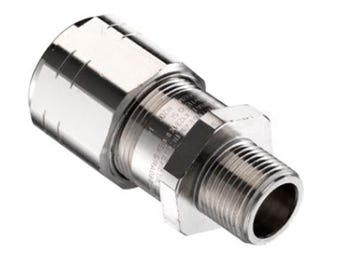

Flameproof Straight Conduit Fitting M32 | IP66 Rated | Nickel Plated Brass | 60°C to +130°C by Cabac
The Cabac Flameproof Straight NPB M32 fitting is designed for hazardous area applications, providing a durable and safe solution for liquid tight metallic conduits with IP66 protection and high temperature tolerance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING FLAMEPROOF STRAIGHT NPB M32
Brand: Cabac
SKU: HAMM0606G1
Alternatively Known As: Flameproof conduit fitting, hazardous area conduit fitting, NPB M32 flameproof fitting
Technical Specifications
- Material: Nickel plated brass with epoxy resin barrier
- IP Rating: IP66
- Operating Temperature: 60°C to +130°C
- Suitable for Zones: 1, 2, 21 & 22 hazardous areas
- Type: Flameproof straight fitting
- Conduit Size: M32
- Dimensions (H x L x W): 50mm x 80mm x 50mm
- Weight: 0.3 kg
Key Features
- Flameproof fitting suitable for hazardous areas
- High specification product for Zone 1, 2, 21 & 22
- Operating temperature range from 60°C to +130°C
- IP66 rated for dust and water ingress protection
- Constructed from nickel plated brass with epoxy resin barrier
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced in hazardous area electrical systems to ensure compliance and safety.
Applications
- Hazardous area electrical installations in Zone 1, 2, 21 & 22
- Industrial environments requiring flameproof conduit fittings
- Liquid tight metallic conduit systems
Standards & Compliance
- Complies with AS/NZS 60079 for electrical equipment in explosive atmospheres
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Ensures safety in hazardous environments, preventing accidents and environmental damage
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Flameproof Straight NPB M32 fitting is available now for immediate purchase. Ideal for hazardous area conduit installations requiring high safety and durability.
