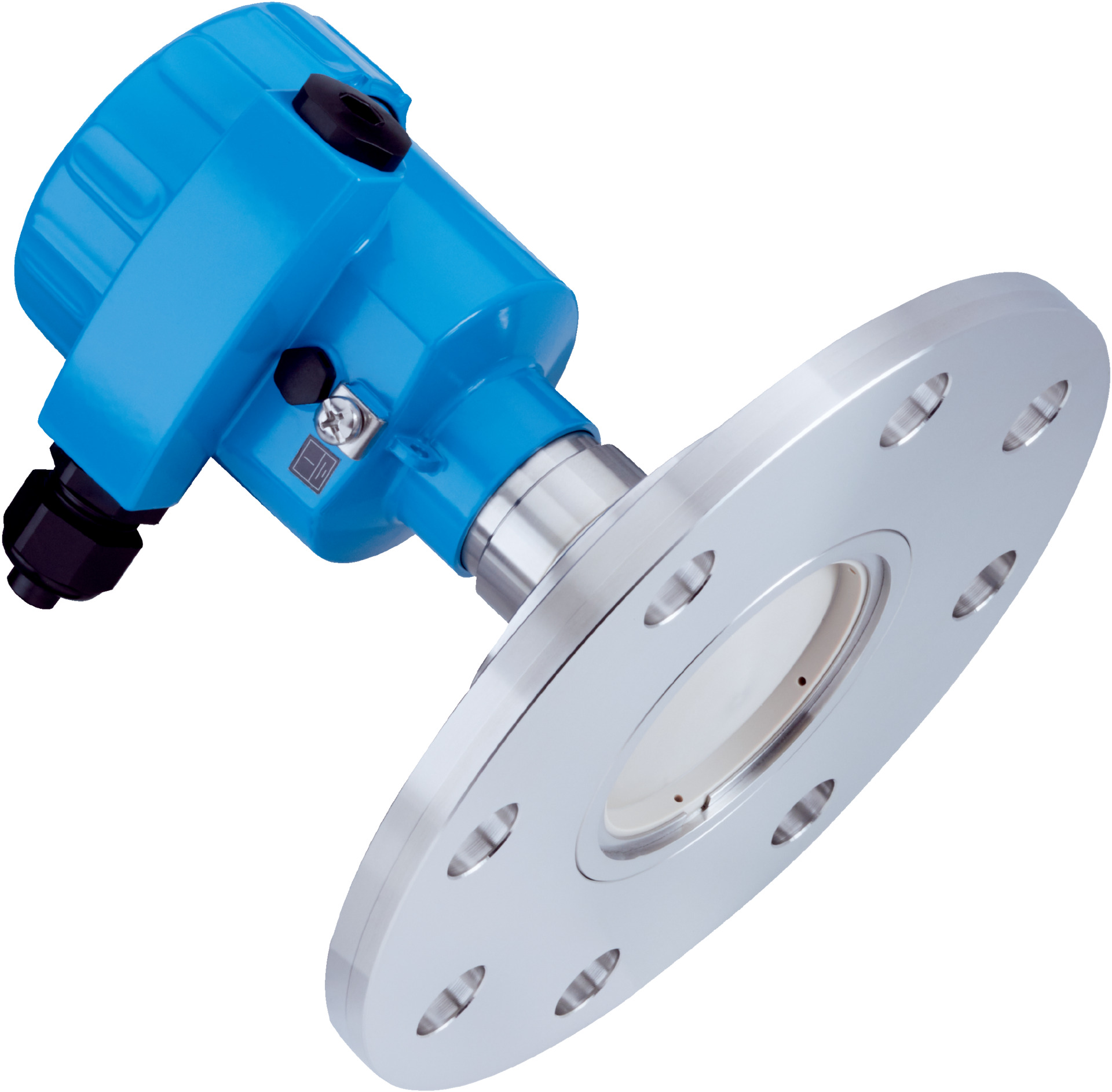

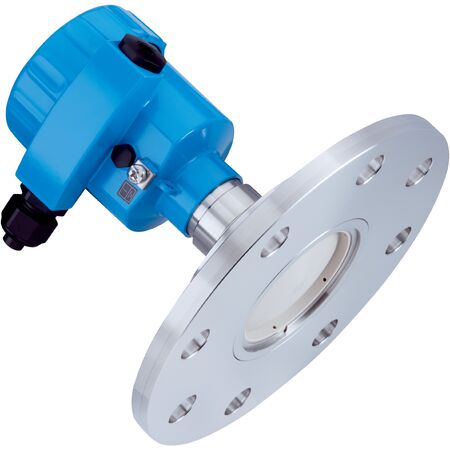

Flange Antenna Level Sensor | Continuous Measurement | W-band Radar Technology | IP66/IP68 Rated | by SICK
The Flange Antenna Level Sensor offers continuous measurement of fluid levels using advanced W-band radar technology, ensuring high accuracy of ≤ 1 mm. Designed for industrial applications, it operates in harsh environments with process pressures up to 25 bar and temperatures from -40 °C to +130 °C. With an IP66/IP68 rating and Bluetooth configuration, this sensor is perfect for chemical, food, and pharmaceutical industries requiring reliable and precise fluid level monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Continuous
- Probe type: Flange with encapsulated antenna system
- Frequency band: W-band (75-85 GHz)
- Measuring range: Up to 30 m
- Angle of dispersion: 3°
- Process pressure: -1 bar to 25 bar depending on temperature
- Process temperature: -40 °C to +130 °C
- Accuracy of sensor element: ≤ 1 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Communication interface: HART
- Supply voltage: 12 V DC to 35 V DC
- Protection class: III (IEC 61010-1)
- Connection type: M20 x 1.5 cable gland
- Output signal: 4 mA to 20 mA / HART
- Enclosure rating: IP66 / IP68
- Housing material: Aluminum
- Sealing material: PTFE
- Bluetooth: Yes
- Display: Installed
- Dimensions (H x L x W): 200mm x 300mm x 150mm
- Weight: 5 kg
Key Features
- Continuous measurement of fluid levels using W-band frequency (75-85 GHz)
- Flange probe with encapsulated antenna system for reliable sensing
- Measuring range up to 30 meters with high accuracy (≤ 1 mm)
- Bluetooth magnet pin operation for easy control and configuration
- ATEX II 1G, 1/2G, 2G Ex ia IIC T6 certified for hazardous areas
- Robust aluminum single-chamber housing with PTFE sealing and antenna materials
- IP66/IP68 rated enclosure for protection against dust and water ingress
- HART communication interface with 4-20 mA output signal
- Wide operating temperature range from -40 °C to +130 °C (process) and -40 °C to +80 °C (ambient)
- Integrated second line of defense for enhanced safety
- RoHS compliant and multiple international certifications including EU, UK, ACMA, FDA, and cCSAus
Professional Installation Requirements
- Installation must be performed by a qualified professional familiar with hazardous area equipment and compliant with ATEX and local electrical standards.
Applications
- Continuous level measurement of fluids in industrial processes
- Suitable for use in harsh environments with process pressures up to 25 bar
- Ideal for chemical, food, and pharmaceutical industries requiring hygienic and precise fluid level monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and prevent spills
- Robust design minimizes maintenance and replacement frequency, reducing material waste
- Bluetooth configuration reduces need for physical adjustments, lowering operational energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFR-ACGFHIMHAKX level sensor is available for immediate purchase, ideal for industrial fluid level measurement applications requiring high accuracy and safety compliance.
